vMix User Guide
58 / 208
Click the Live button to display live updating and click it again once all changes have been made.
Title Presets
Click the + button to save the text from all the elements in the title as a preset.
This preset can be selected by right clicking the input in the main vMix window to recall these values at any
time.
Title Presets can be Imported and Exported in CSV format using the Import and Export buttons
Countdown Timer
The countdown timer can be used to automatically update the title with a timer that runs either in reverse
(countdown to 0) and optionally forward.

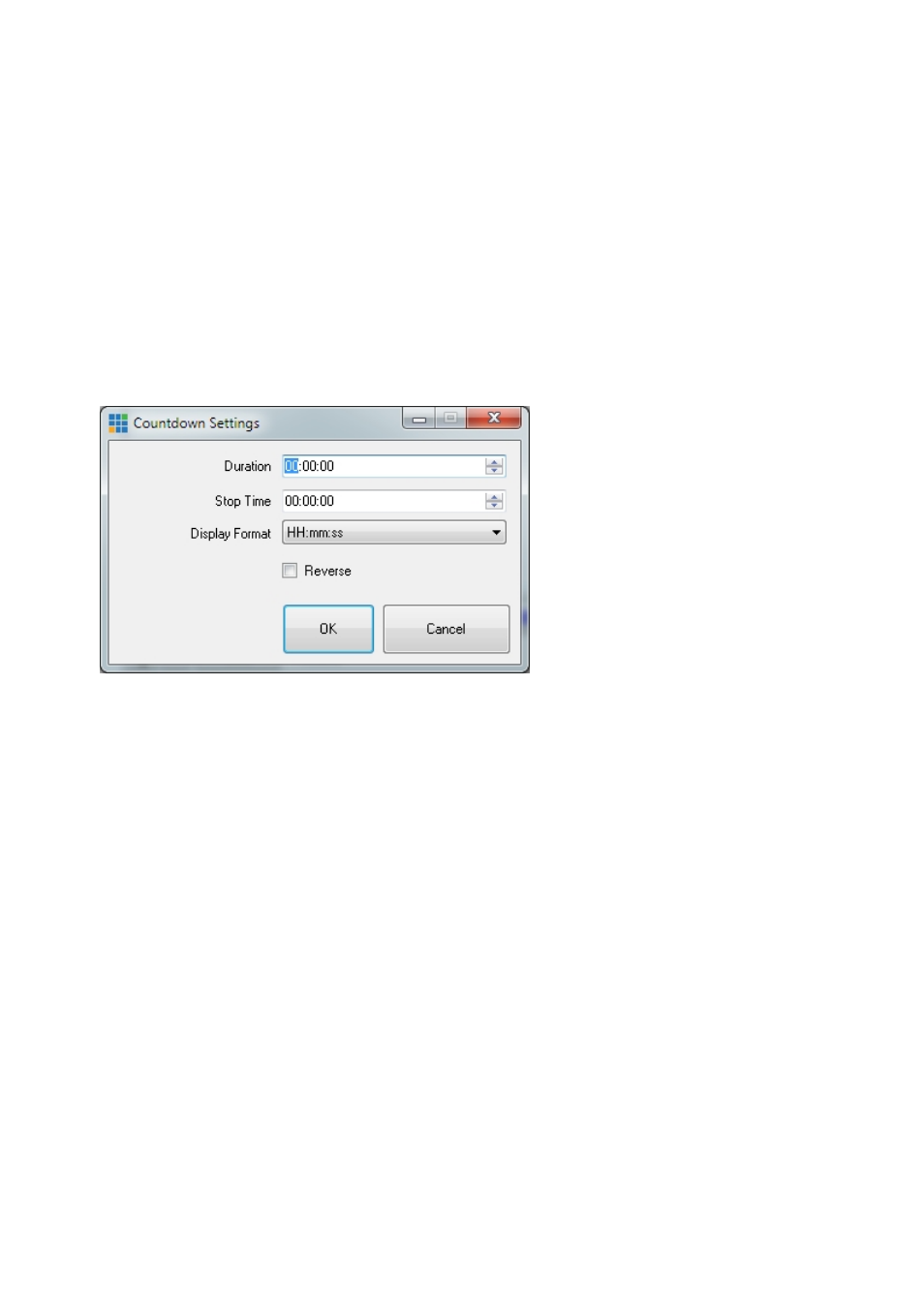

To specify the countdown parameters click the Settings button to bring up the Countdown Settings window.
Duration
Specify the duration in hours, minutes and seconds the timer will count. For example 00:15:00 for a 15
minute timer.
Stop Time (or Start Time when in Reverse mode)
Specify the to either begin or end with depending on the countdown direction.
For example, in countdown mode with a duration of 15 minutes, if the Stop Time is set as 00:05:00 (5
minutes) the countdown will run from 00:20:00 to 00:05:00 and then stop.
In reverse mode the countdown would run from 00:05:00 to 00:20:00.
Display Format
Specifies how the timer will be displayed within the title.
When the display format is set to mm:ss or mm, the hours remaining will be added to the minutes display,
for example 120:30 for 2 hours and 30 seconds.
Reverse
Change the direction of the Countdown so it counts up instead.
Flash
The Flash Input allows you to insert SWF and FLV files as well as Live RTMP streams into vMix.
The latest version of Adobe Flash Player for Internet Explorer (version 10 or higher) should be installed first.
