Operator's Manual multipli 35 Air Feeder S 32
Mathias Bäuerle GmbH 21
10. AIR FEEDER S 32
Principle of
Operation The air feeder S32 is suitable for handling a wide variety of papers.
It separates uncoated paper as well as coated, freshly printed or thin papers.
The sheets are separated by air and vacuum.
Air is supplied from the bottom of the stack both on the left and right side,
separating the paper in the stack which now floats on a cushion of air.
A rotating suction drum can then separate the sheets from the bottom
of the paper stack.
This principle has the advantage that paper can be reloaded continuously.
There is no need to stop the machine.

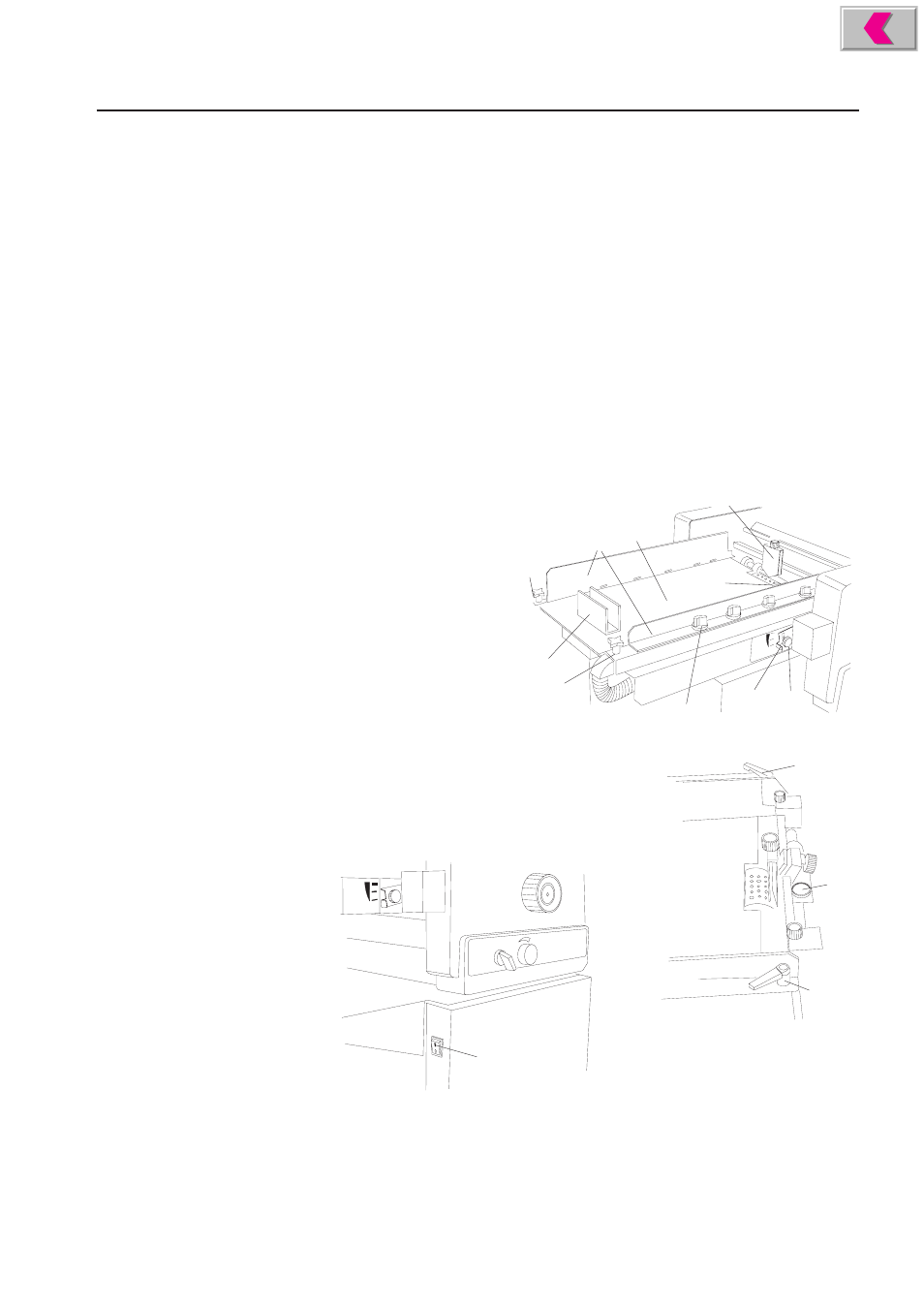

Description Components and operating elements of the air feeder S 32:
1 Rear paper stop
2 Air guides left and right
3 Feed table
4 Front paper stop
5 Knurled screw for locking
the suction segment
6 Lever for adjusting the
suction segment
7 Air regulating valves
8 Knobs for adjusting and
locking the air guides
9 Suction drum
10 Hold-down balls
11 Handle for adjusting and locking the air guides
12 On/off switch for pump
1
2
3
4
5 6
7
8
9
8
11
10
11
STOP START
12
