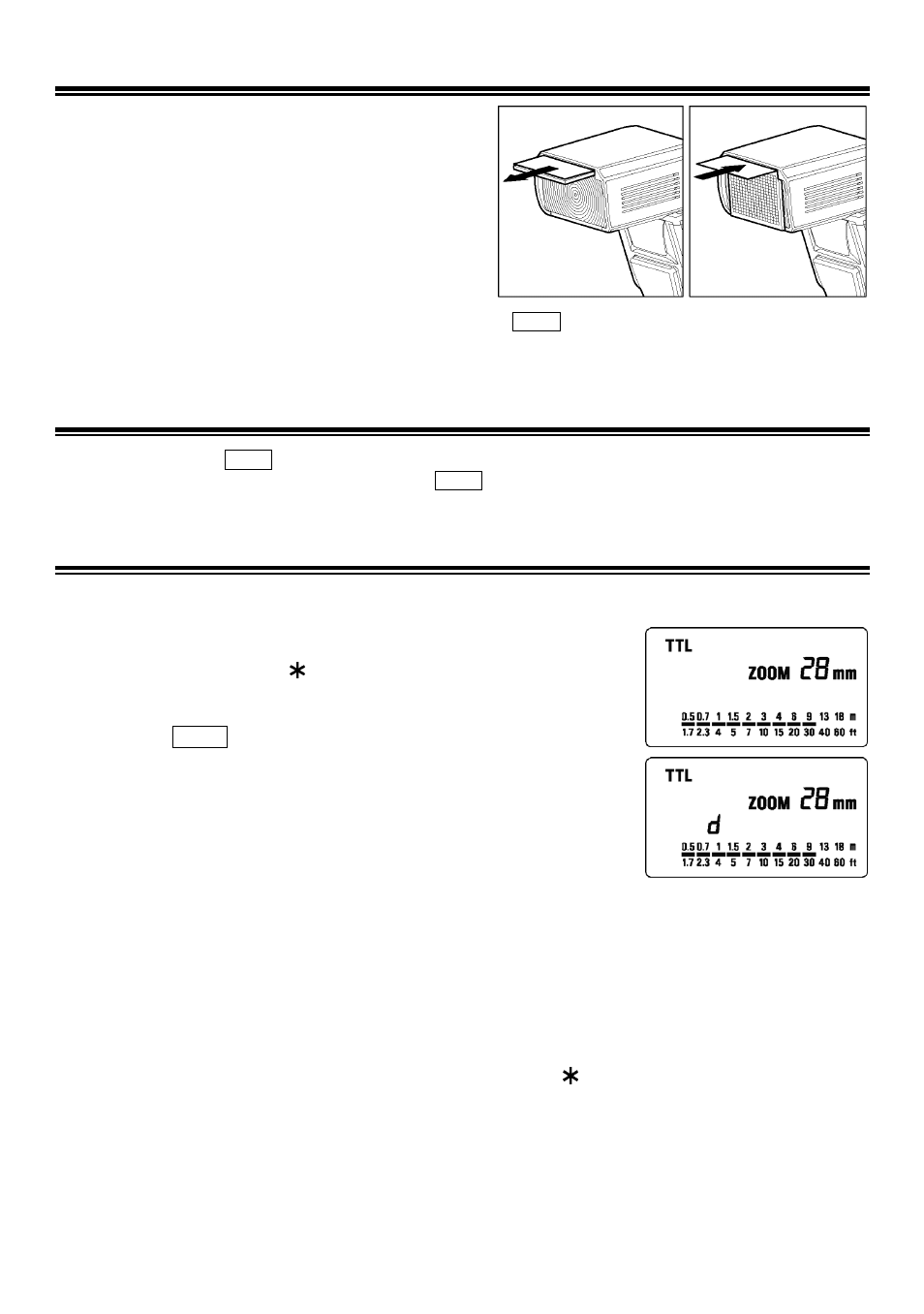

WIDE PANEL
This flashgun is equipped with a built-in wide panel,
which can provide an ultra wide 17mm angle of
coverage. Slide out the wide panel and catch light
panel and flip it down to cover the flash’s head. (Be
careful to slide the panels out smoothly.) Then put the
catch light panel back in its place. The coverage
angle setting of the flash will be set to 17mm
automatically.
◆ If the built-in wide panel comes off accidentally, the ZOOM button will not function. In this case
please contact the store where the flash was purchased or a Sigma service station.
LCD PANEL ILLUMINATION
When you press the LIGHT button, the LCD panel will illuminate for about 8 seconds. The illumination
stays on longer than 8 seconds if you press the LIGHT button once again.
TTL AUTO FLASH
In the TTL AUTO Mode, the camera will control the amount of flash lighting to provide the appropriate
exposure for the subject.
1. Set the camera’s exposure mode to P Mode. (In the case of SA-300,
SA-300N and SA-5 set to “ ” fully automatic mode)
2. Turn on the power switch of the flash, the TTL mark will appear on the
LCD panel and flash will start charging. (If TTL mark does not appear,
depress the MODE button several times to select the TTL mode).
3. Focus on your subject.
4. Check that the subject is located within the effective distance range,
indicated on the LCD panel.
5. Press the shutter button, after the flash is fully charged.
When the flash is fully charged, the ready light in the viewfinder, and
appears on the flash unit.
■ The TTL exposure is controlled by the S-TTL system of the digital camera. If the flash is set to TTL,
the character "d" (digital) will be displayed on the LCD panel.
■ When the camera receives the appropriate exposure, the TTL mark on the LCD panel will appear for
5 seconds. If this indication does not appear, the flash illumination is not enough for that situation.
Please re-take the picture, at a closer distance.
■ The AF Auxiliary Light will turn on automatically as you focus on a subject in a dark area. The
effective range of the AF Auxiliary Light is up to about 0.7meter to 9 meters (2.3-29.5 feet).
■ If the SA-300, SA-300N and SA-5 cameras, are set to “ ” fully automatic mode, Flash will
automatically switch to TTL mode only. For other camera exposure modes, the flash will be set to the
last chosen mode each time.
■ When the flash is fully charged, the flash mark will appear in the finder. If the shutter is released
before the flash is fully charged, the flash will not fire, and the camera will take the picture at a slow
shutter speed.
