8

Panel Descriptions

* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
* Be sure to use cables and adaptor plugs with the proper connectors matching those of the other devices you are using.

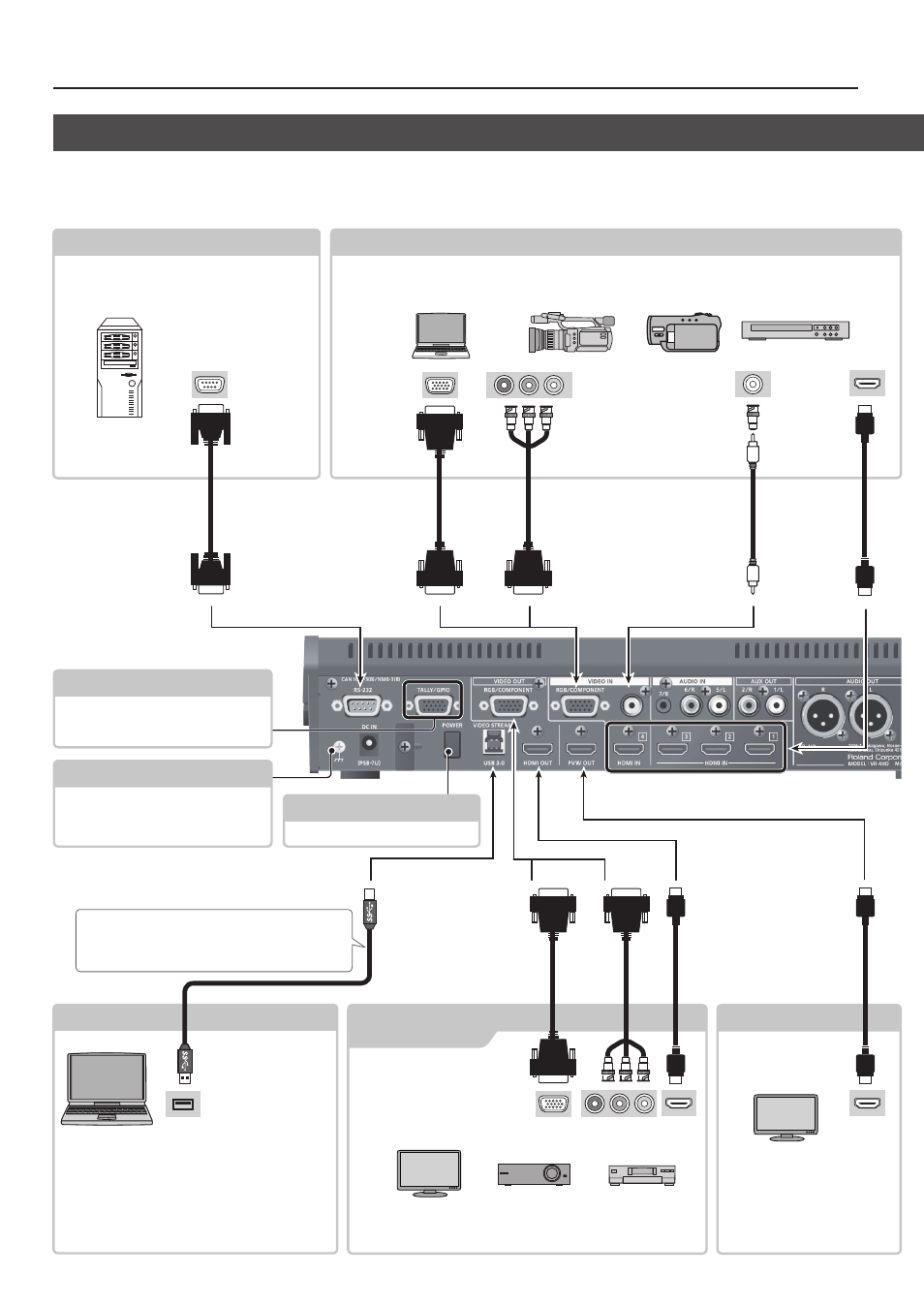

HDMI IN 1–4 connectors, RGB/COMPONENT 4 Input connector, COMPOSITE 4 Input connector

These are for inputting video signals from a computer or video devices such as video cameras and DVD players.
* You switch the video source on video channel 4 by changing the assigned input connector (p. 15).

Analog RGB

output connector

HDMI output

connector

Component output
connector

Composit output

connector

RS-232 connector

Here you connect a device used to operate the VR-4HD

by remote control (such as an RS-232-compatible

computer).

PVW OUT connector

This outputs either the input video

as a four-way split screen or the

main output video (p. 10, 16). You

connect a preview-use monitor

here.

Here you connect a computer.

5

Use this to input audio played back on the computer

and to output the results of video and audio mixing.

You can use this for operations such as sending video

and audio over the Internet (p. 36).

5

Use VR-4HD RCS dedicated software to operate the

VR-4HD remotely (p. 41).

USB 3.0 port

This outputs the video mixing result (main output video). Here you

connect devices such as projectors, recording equipment, and external

displays.

RGB/COMPONENT output connector

HDMI OUT connector

Analog RGB
input connector

HDMI input
connector

Component input
connector

Making the connection using an extension cable or USB

hub might result in the computer failing to recognize

the VR-4HD. We recommend using a direct connection

between the VR-4HD and the computer.

Grounding terminal

You connect this to an external ground.
For details, refer to “Grounding Terminal” in

“IMPORTANT NOTES” (p. 5).

[POWER] button

This turns the power on and off (p. 10).

* Analog RGB and DVI-D is fixed at

full-range and cannot be changed.

TALLY/GPIO connector

Here you connect devices provided with

a tally-light feature or with control-signal

input/output functionality.

Rear Panel/Side Panel (Connecting Your Equipment)

RS-232 connector

USB port

HDMI input
connector

* When outputting video via

USB, make the connection

to the USB 3.0 port.
