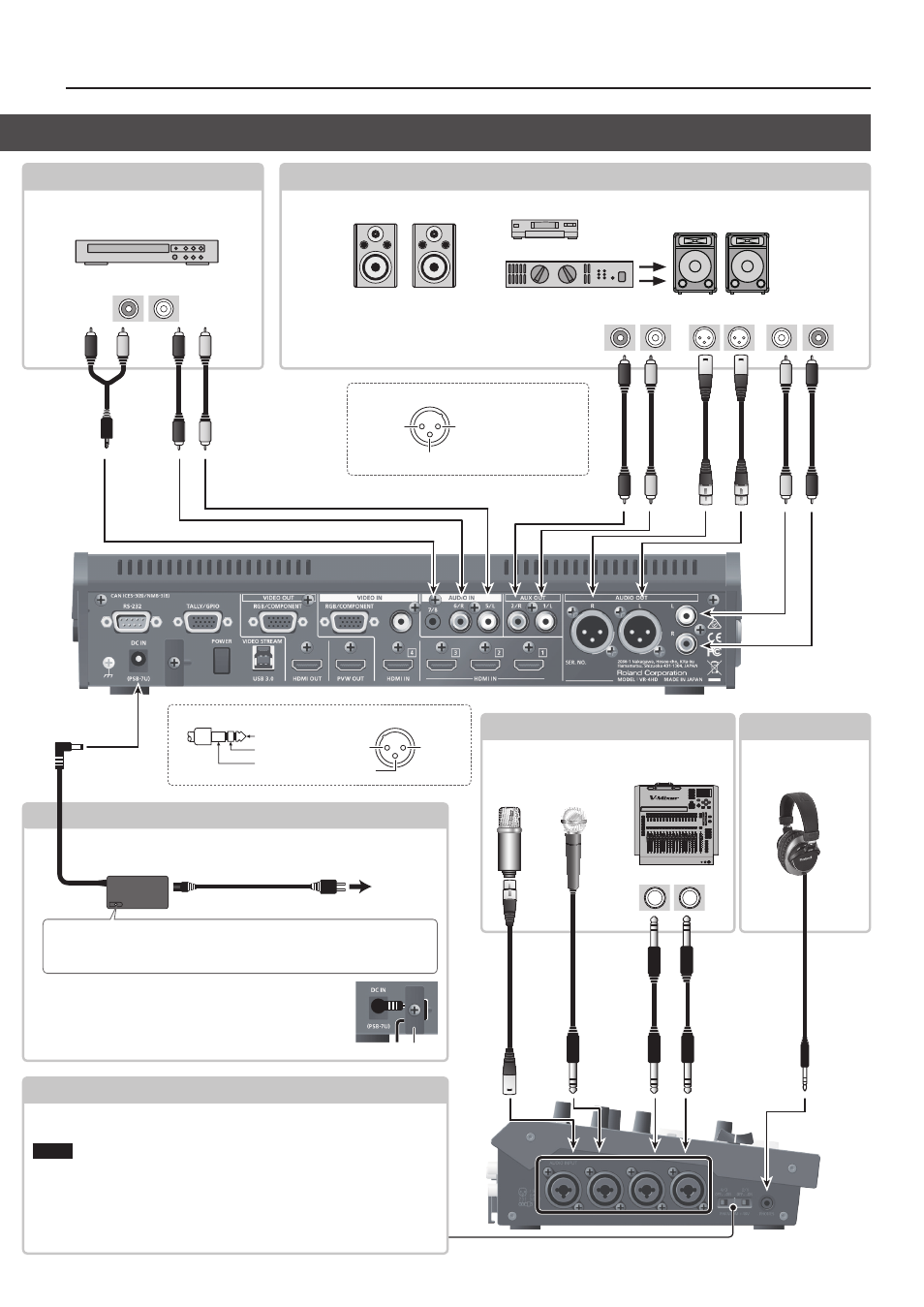

Panel Descriptions
* To prevent the inadvertent disruption of power to your unit
(should the plug be pulled out accidentally), and to avoid
applying undue stress to the jack, anchor the power cord using
the cord hook, as shown in the illustration.
Cord hook
DC IN jack
This is for connecting the included AC adaptor.
Audio input connectors
Audio input connectors
AUDIO IN 5/6 jacks, 7/8 jack
Here you input audio signals from video decks,
CD players, and other such audio equipment.
AUDIO INPUT 1–4 jacks (XLR/TRS)
These are for inputting audio signals from
microphones, audio mixers, and other such audio
equipment.
PHONES jack
This is for connecting
headphones.
Audio input connectors
AUDIO OUT connectors/jacks, AUX OUT jacks
These output the results of the audio mix. Here you connect an audio recording deck, amplifier, speakers, or other such
equipment.
* The VR-4HD has two internal audio buses, and you
can select the audio bus to output for each individual
connector (p. 33).
RCA phono
plug
* Pin assignment of AUDIO OUT connectors (XLR)
1: GND 2: HOT
TIP: HOT
RING: COLD
SLEEVE: GND
3: COLD
2: HOT 1: GND
3: COLD
* Pin assignment of AUDIO INPUT 1–4 jacks (XLR/TRS)
1: GND 2: HOT
TIP: HOT
RING: COLD
SLEEVE: GND
3: COLD
2: HOT 1: GND
3: COLD
[PHANTOM] switches
The VR-4HD supports phantom power. When using a condenser microphone that
requires phantom power, set the [PHANTOM] switch to “ON.”
NOTE
5 Always turn the phantom power off when connecting any device other than
condenser microphones that require phantom power. You risk causing damage if you
mistakenly supply phantom power to dynamic microphones, audio playback devices,
or other devices that don’t require such power. Be sure to check the specifications of
any microphone you intend to use by referring to the manual that came with it.
(This instrument’s phantom power: 48 V DC, 10 mA Max)
RCA phono
plug
RCA phono
plug XLR plug
XLR plug
1/4-inch TRS
phone plug
1/4-inch TRS
phone plug
Miniature stereo
phone plug
Miniature stereo
phone plug
To AC Outlet
AC adaptor
Power cord
Place the AC adaptor so the side with the indicator faces upwards and the side with
printed information faces downwards. The indicator will light when you plug the
AC adaptor into an AC outlet.
