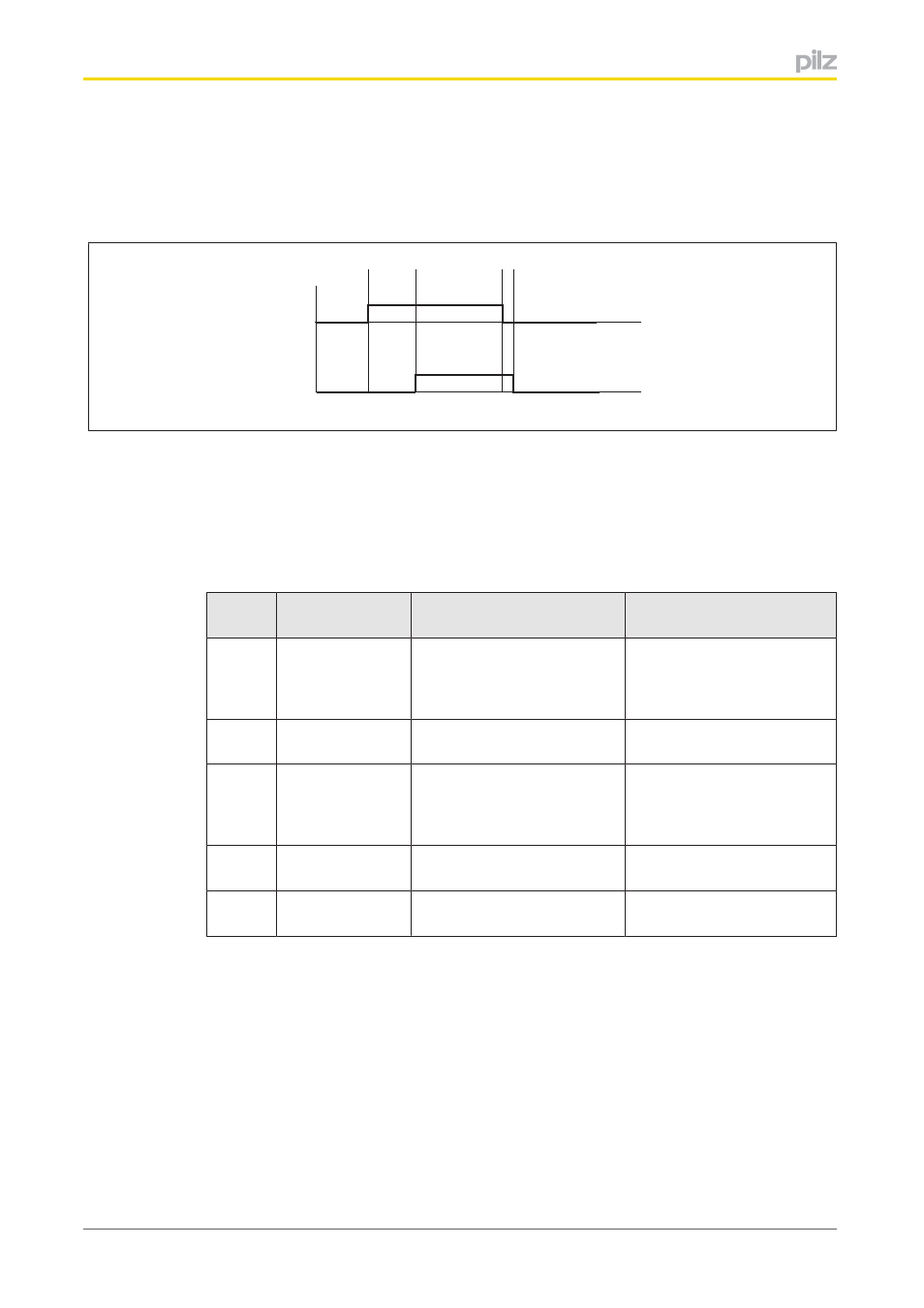

4.1.5.4 Set counter status
The "Set counter status" function sets the counter to any value. The value is stated in the
user program. The module transfers the value and continues counting from this counter
status.
b
PIO
PII
c d e a
Legend:
} PIO: Bit 2 of the function call in the process image of outputs or I/O data Out­
putData.SetCounter
} PII: Bit 2 of the status byte in the process image of inputs or I/O data In­
putData.SetCounterDone
Key to timing diagram:
Section Function
Procedure for PSSu in sys­
tem environment A Procedure for PSSu in sys­
tem environment B
a Enter counter
status In the user program, write the
default counter status in the
process image of outputs In the user program, assign
the default counter status to
OutputData.NewCounter­
Value
b Transfer counter
status In the user program, set Bit 2
of the function call In the user program, set Out­
putData.SetCounter
c Acknowledge
transfer The module sets Bit 2 of the
status byte; the underflow
and overflow bits are reset The module sets In­
putData.SetCounterDone; In­
putData.Underflow and In­
putData.Overflow are reset
d Finish transfer In the user program, reset Bit
2 of the function call In the user program, reset
OutputData.SetCounter
e Ready for new
function The module resets Bit 2 of
the status byte The module resets In­
putData.SetCounterDone
4.1.5.5 Monitor limit value
The module's output O0 is switched when a limit value is reached. The status of the output
("0" or "1") is defined with a polarity bit.
The function must first be activated via an enable bit.
