Wiring
Operating Manual PSSu E S INC 24V se(­T)
1001380­EN­03 33

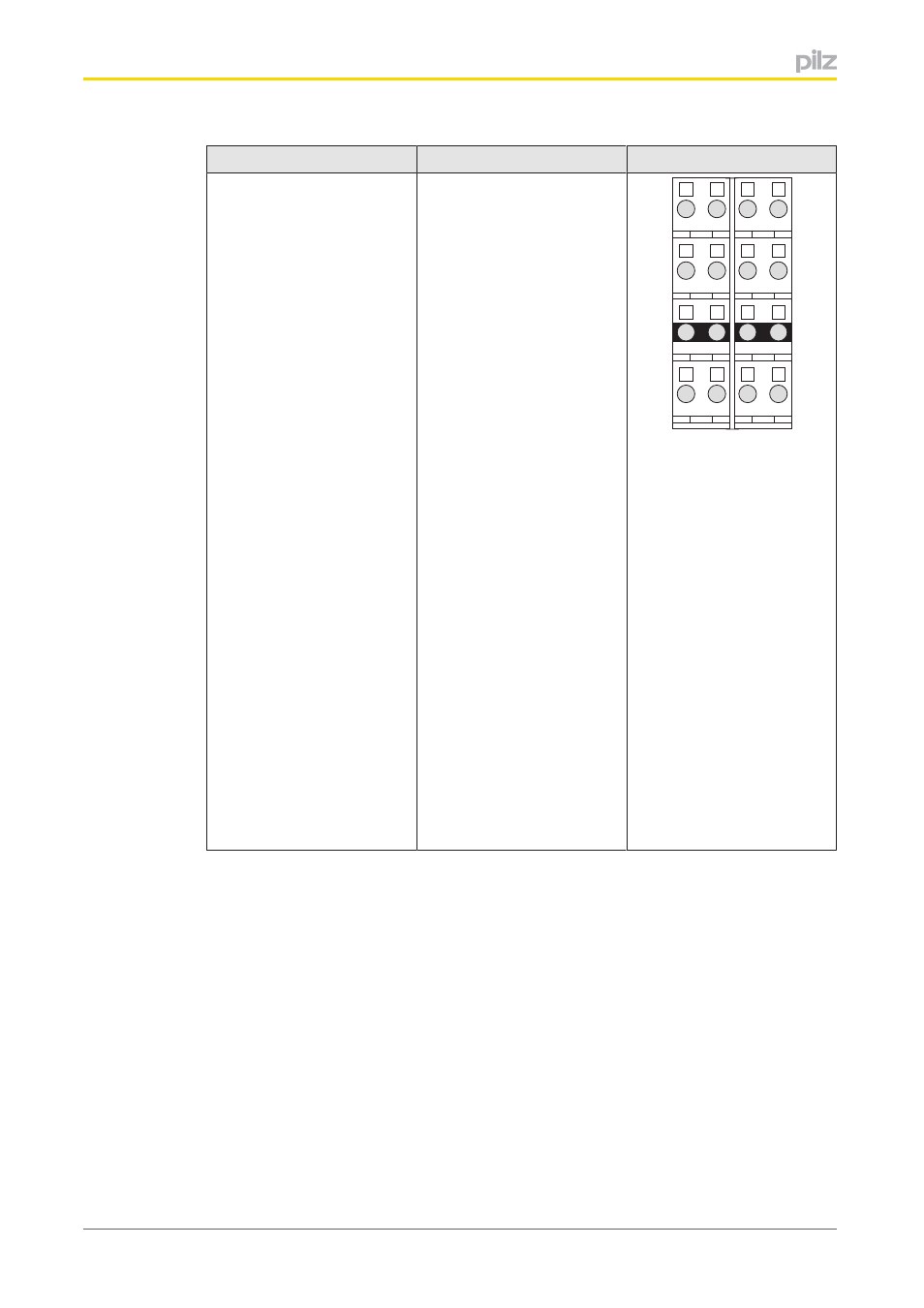

Base module Terminal configuration
Screw terminals:
PSSu BP­C 2/16S
PSSu BP­C 2/16S­T
Cage clamp terminals:
PSSu BP­C 2/16C
PSSu BP­C 2/16C­T
With C­rail:
11: Input A
21: Input B
31: Input C
41: Input G (Gate)
12­22: 0 V encoder
(12­22 linked within the base
module)
32­42: Input S (Status)
(32­42 linked within the base
module)
13­23­33­43: C­rail supply
Cable screening
(13­23­33­43 linked within
the base module)
14­24: Supply voltage output
for encoder
34: Output for limit value
monitoring
44: Input L (Latch)
21 11
22 12
23 13
24 14
41 31
42 32
43 33
44 34
