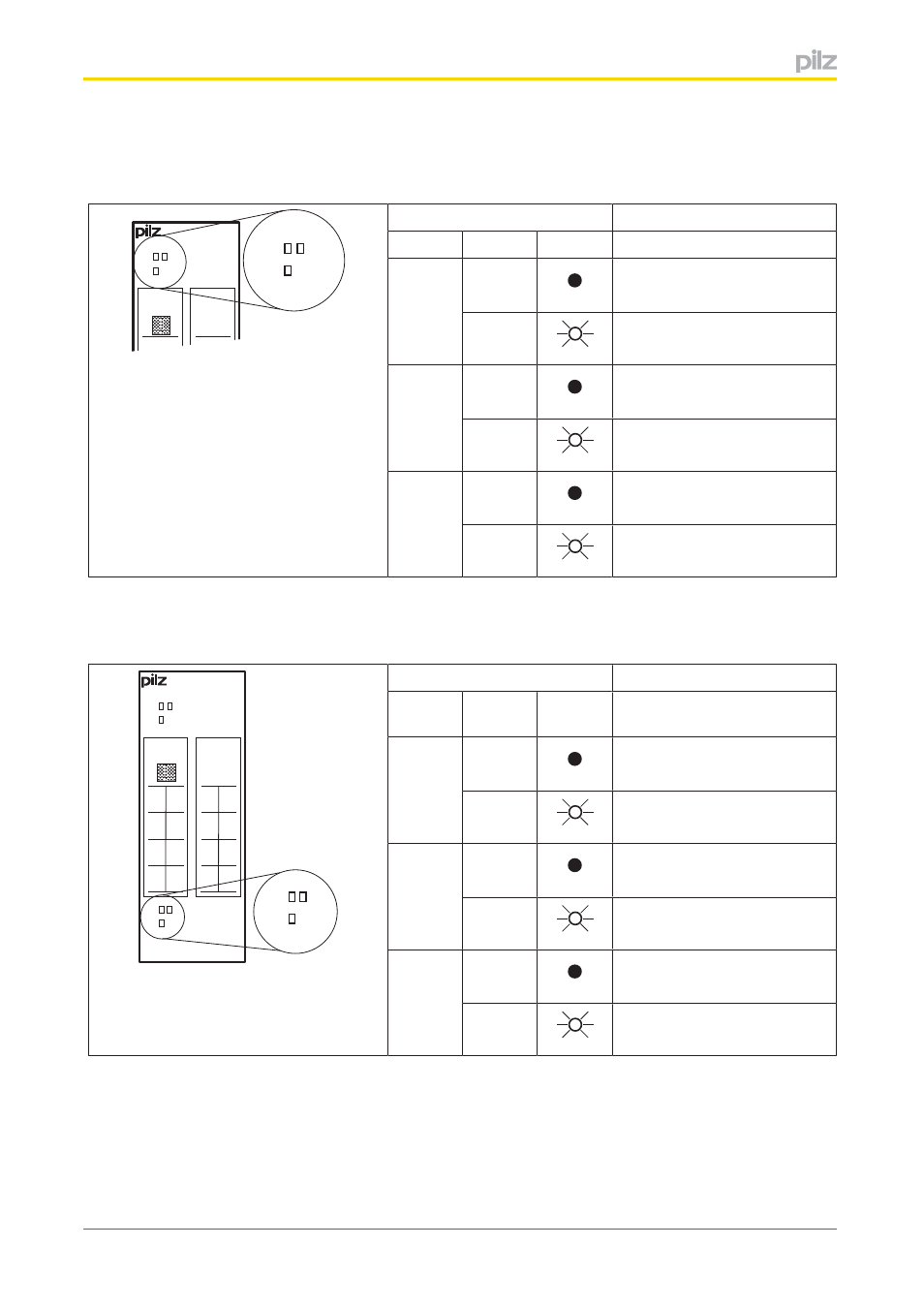

7.2.2 Display elements for counter status
The module has three LEDs for the status of the counter inputs (LEDs "A", "B" and "C").
Err
11
O0
21 31
O1
41
A
B
A
Err
B
C
C
LED Key
Name Colour Status Signal
A ­ ­ ­ 0 signal at counter input A
green 1 signal at counter input A
B ­ ­ ­ 0 signal at counter input B
green 1 signal at counter input B
C ­ ­ ­ 0 signal at counter input C
green 1 signal at counter input C
7.2.3 Display elements for status of the functional inputs
The module has three LEDs for the status of the function inputs (LEDs "G", "L" and "S").
G
S
Err
11
A
12
0V 22
0V
13
(C)
23
(C)
32
S
42
S
33
(C)
43
(C)
G
S
A
B C
L
21
B
14
S1
24
S1
41
C
41
G
34
O0
44
L
L
LED Key
Descrip­
tion Colour Status Signal
G ­ ­ ­ 0 signal at function input G
Green 1 signal at function input G
L ­ ­ ­ 0 signal at function input L
Green 1 signal at function input L
S ­ ­ ­ 0 signal at function input S
Green 1 signal at function input S
7.3 Status information
The way in which status information is assigned to the status byte and I/O data is described
in the chapter entitled "Function Description", under "Input/output data".
