Wiring
Operating Manual PSSu E S INC 24V se(­T)
1001380­EN­03 35

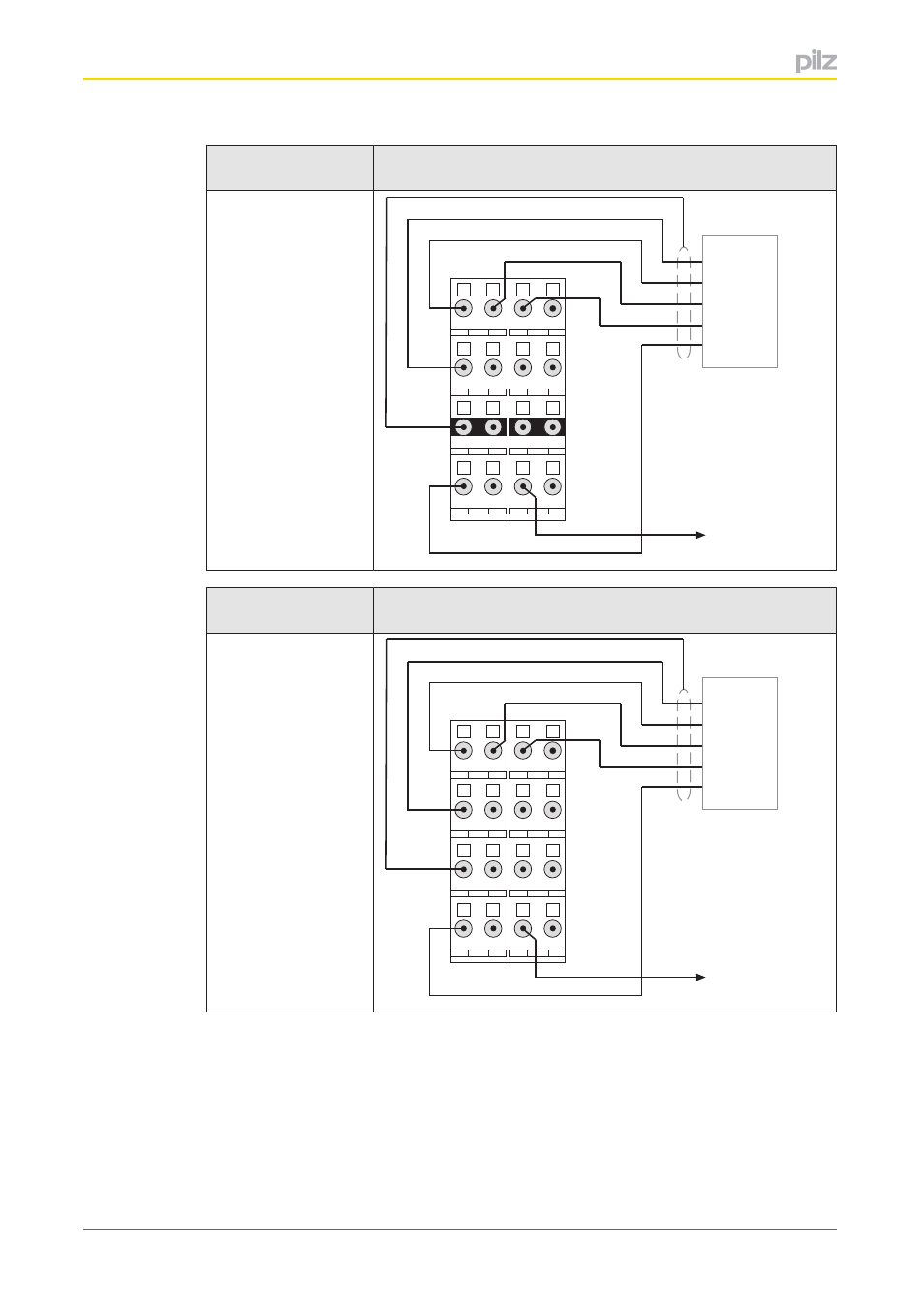

Counter operating
mode
With C­rail
Encoder is supplied
via output 14 (S1)
Function inputs (G, L,
S) not connected.
Output O0: Output for
limit value monitoring
21 11
22 12
23 13
24 14
41 31
42 32
43 33
44 34
C (Gate)
B (Up/Down)
A (Count)
0 V
24 V
Output O0
Counter operating
mode
Without C­rail
Encoder is supplied
via output 14 (S1)
Function inputs (G, L,
S) not connected.
21 11
22 12
23 13
24 14
41 31
42 32
43 33
44 34
C (Gate)
B (Up/Down)
A (Count)
0 V
24 V
Output O0
