8. Now you can find your user configured EtherCAT IP Core in the IP Catalog for adding it to the
system:

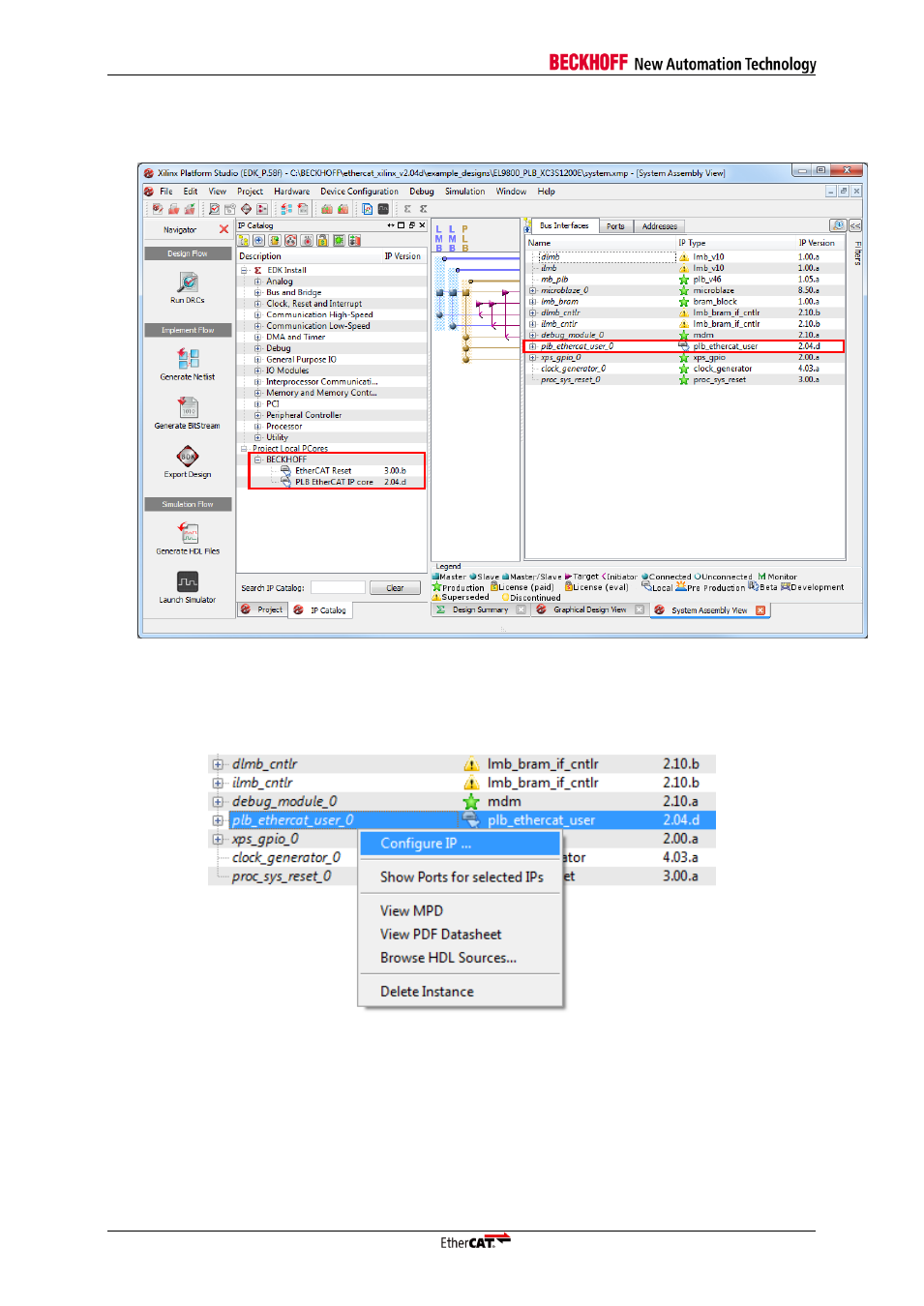

Figure 7: EDK – Overview
9. You can optionally configure some of the IP Core features without IPCore_Config inside the EDK.
Select "Configure IP" in the context menu.
Figure 8: EDK – Configuration of IP Core
In the upcoming dialog you can configure all the functions, which are not directly related to the I/O
signals of the Core.
Note:
Changes made in this dialog will not be reflected in the .eccnf configuration file for
IPCore_Config, they are only saved in the .mpd file. Updating the IP configuration using
IPCore_Config will overwrite the .mpd file and you will lose changes made in this dialog. This
feature is only recommended for experienced users.
