Basic Operation 9
Single Controller System
In a single controller system (Error! Reference source not found.), all radio receivers and all
scoreboards receive signal from the same console at all times. The default channel and
broadcast group settings on the receiver are not typically modified. An example of this type
of system is a football field with a scoreboard in one or both end zones displaying the same
information.
Typically all single controller systems will use the default setting BCAST = 1, CHAN = 1.
All radio receivers in the system must be set to the same values.
Display Action
The LCD will toggle between
these 2 screens.
The LCD shows the current radio settings along with a prompt
to accept or modify these values.
If the radio settings are correct press <ENTER>.
If these values are incorrect press <CLEAR>, and the LCD at
bottom left is shown, allowing edit of the channel or broadcast
group setting.
Broadcast Group Setting
1 Use this setting for all single controller systems. Use
the number keys to edit this value and press
<ENTER> to accept. The asterisk will move to the
channel setting.
Channel Setting
1-8 Edit the channel number to the desired value and press
<ENTER> to accept. The CHAN switch on the receiver
must match this value.

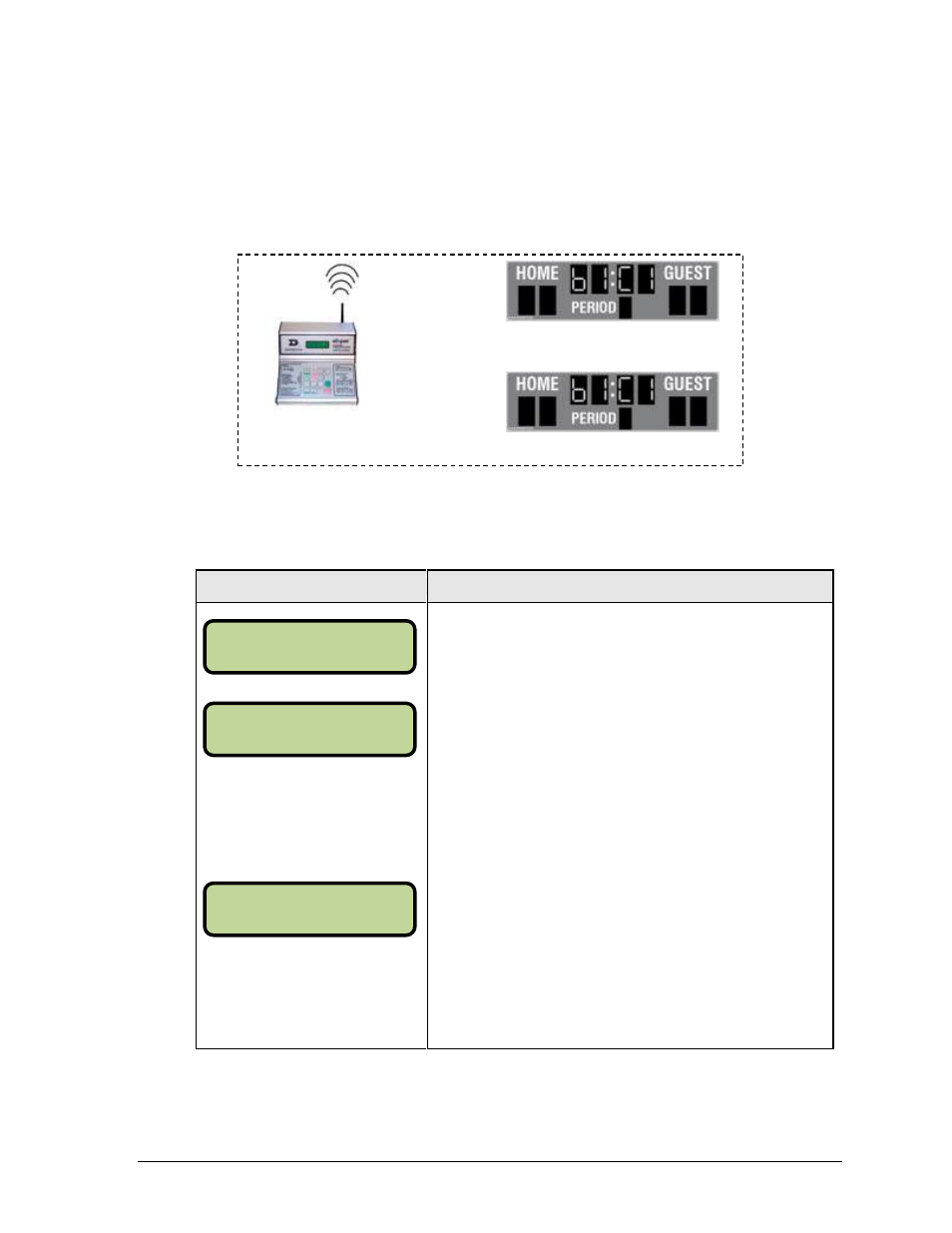

Figure 5: Single Control Console
BCAST 1, CHAN 1
BCAST 1, CHAN 1
BCAST 1, CHAN 01
RADI O SETTI NGS
BCAST X CHAN YY
ENTER TO ACCEPT
CLEAR TO MODI FY
BCAST GROUP 1*
RADI O CHAN 01
