42
No. Function
(1) Mains cable safety bow
(2) AC input - mains socket
(3) not assigned
(4) Connection P1 - charger lead socket
used to connect the charger lead
also for connecting the temperature-controlled charging or external start/stop op-
tions
(5) Display
(6) not assigned
(7) Connection P4 - multiport
for connecting the optional status lamp

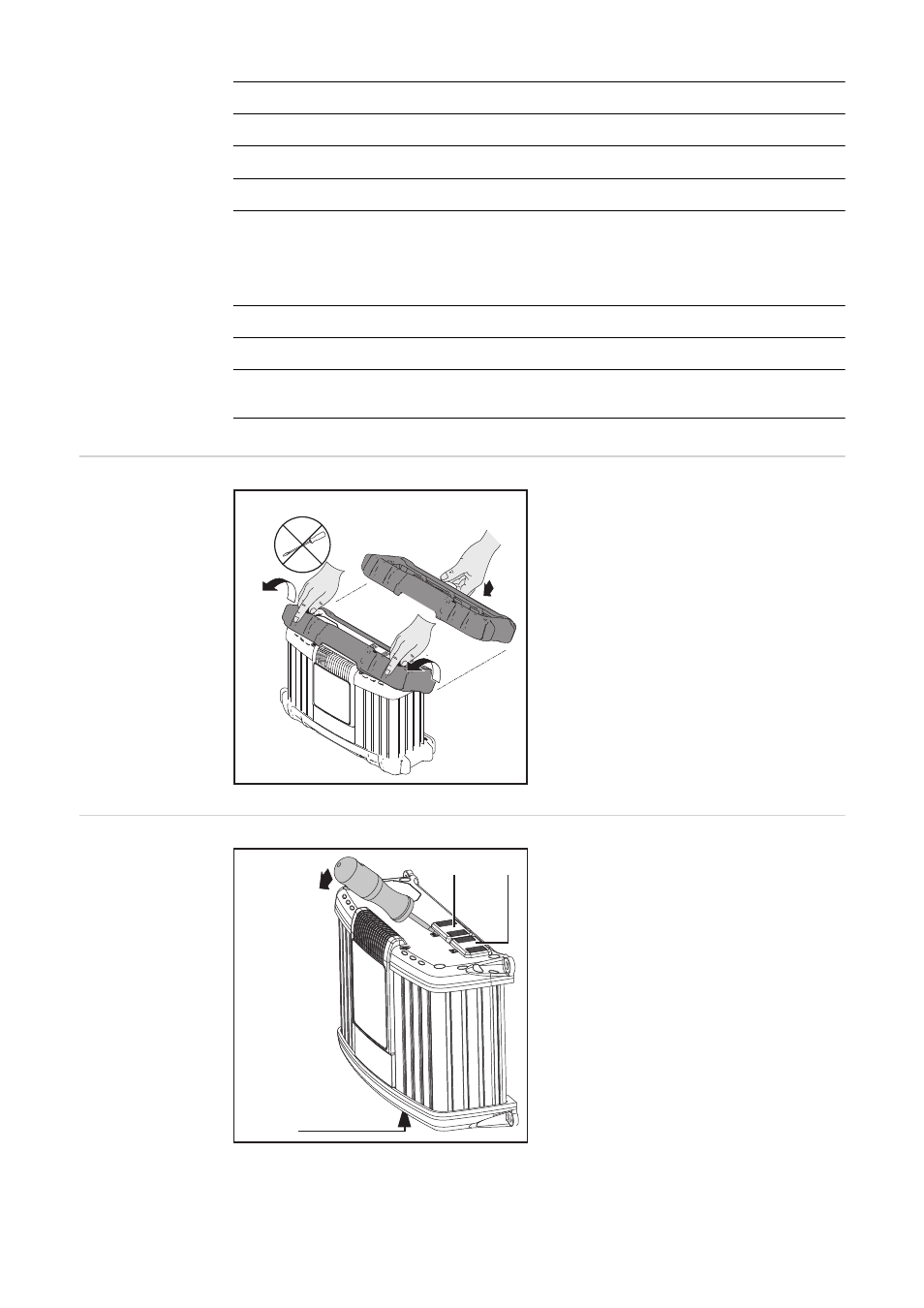

Edge guard op-
tion The edge guard removal process is the re-
verse of the fitting process.
The bracket cannot be fitted if the edge gu-
ard is already in place.
Removing covers
for connections
and options If necessary, use a screwdriver to remove:
-
Cover (1) for connection P3 - visual
port
- Cover (2) for connection P4 - multiport
- Cover (3) for connection P2 - I/O port
Leave covers (1), (2) and (3) in place on un-
used P2, P3 and P4 connections.
1
2
2
(2)
(3)
(1)
