Fitting the option-
al bracket and
strain relief de-
vice for the charg-
er lead

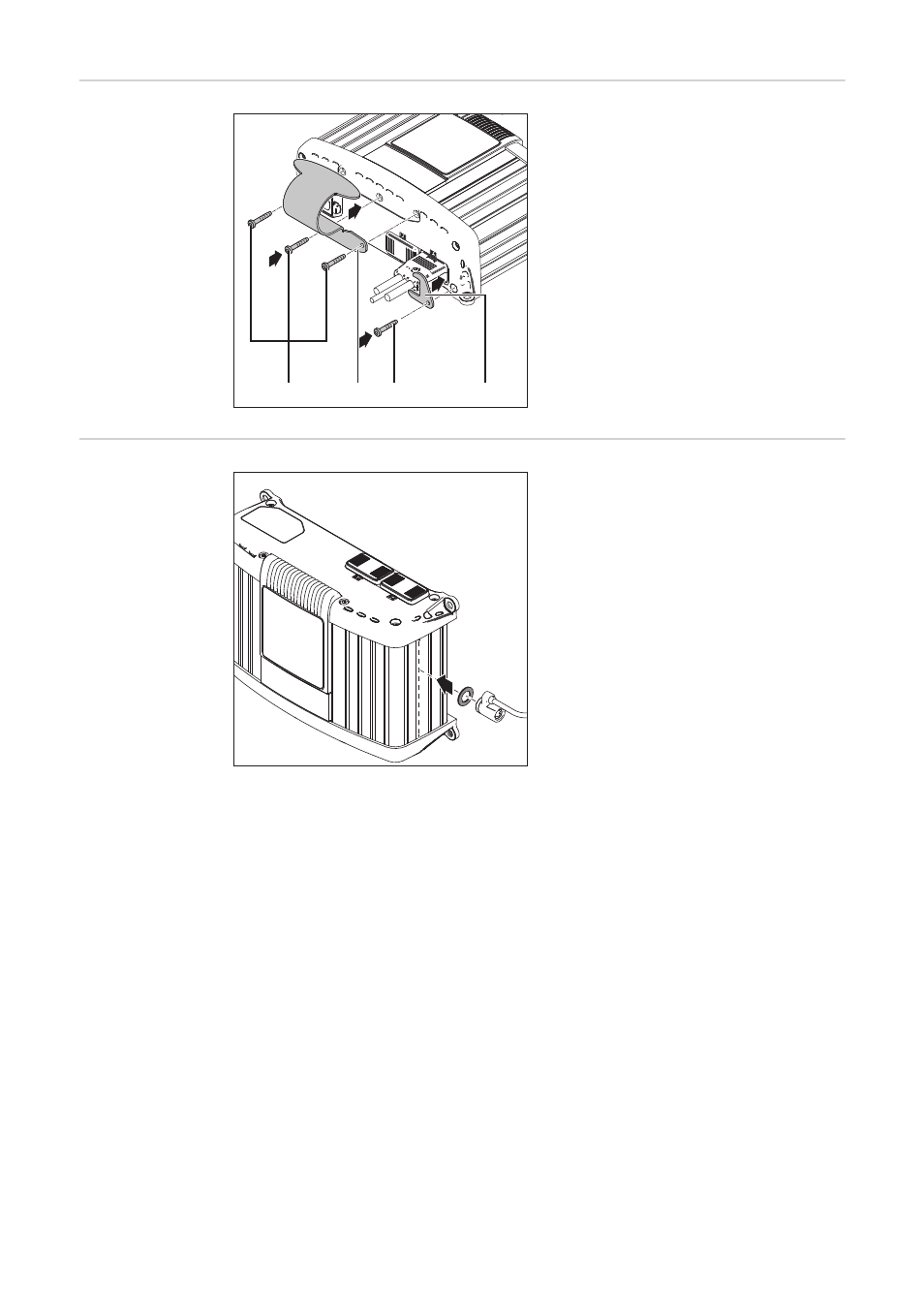

To fit the bracket:
-
Undo screws (1)
-
Fit bracket (2) using the previously re-
moved screws
To fit the strain-relief device:
-
Undo screw (3)
-
Fit charger lead strain relief device (4)
using the previously undone screw
Preparations for
security lock
The security lock is not contained in the
scope of supply.
A security lock can only be attached
-
to the groove on the housing as shown
-
to the groove on the housing that is ex-
actly opposite
-
using spacer M8 DIN 125 or DIN 134,
located as shown
1
2
3
4
(1)
(2)
(3)
(4)
IMPORTANT! The torque for all screws is
2.5 Nm.
