Installation

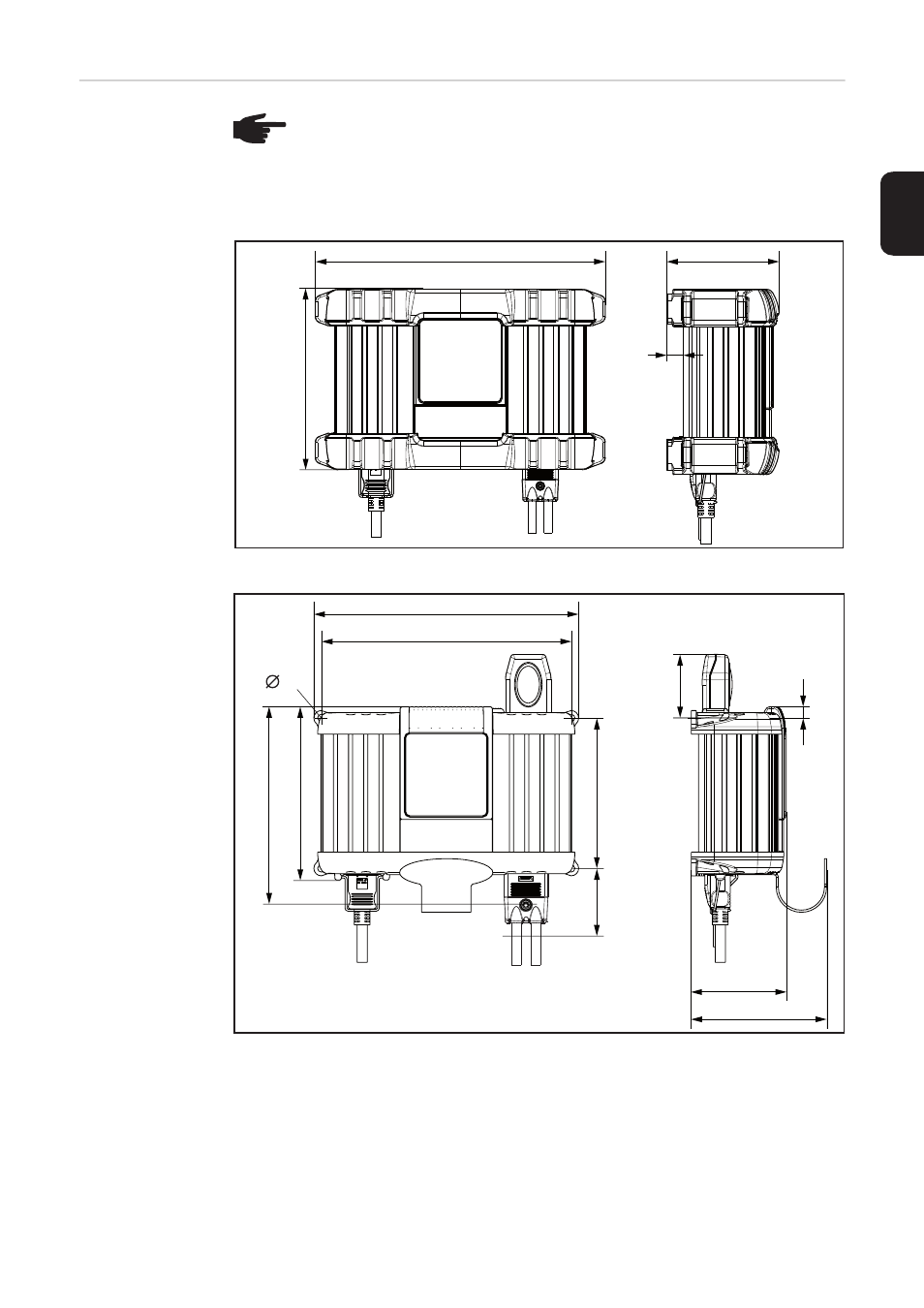

The space requirement measurements in mm illustrated below are given to ensure that
there is easy access to the plug connections:
Space requirements with edge guard
Space requirements without edge guard, and space requirements with signal lamp and bracket options (* space
for installation/removal)
NOTE! If the charger is installed in a switch cabinet (or a similar separate area),
then forced-air ventilation must be provided to ensure adequate heat dissipation.
There must be a clearance of 10 cm all around the charger.
100
15,5
168
270
247
88
126
140
60 +20*
70 + 20*
11
+
5
*
162
184
233
6,5
