Upload New Configuration
Click the U
PLOAD
N
EW
C
ONFIGURATION
button to display the Configuration Upload screen shown in
Figure 30 below.
Select the location of the configuration to be uploaded.
Upload From:
Elemec Bridge – A storage location on the host computer shared with the Elemec3 Console
application.
Custom – Use the B
ROWSE
button to select the folder containing the configuration(s). When
selected, only valid configurations will be displayed.

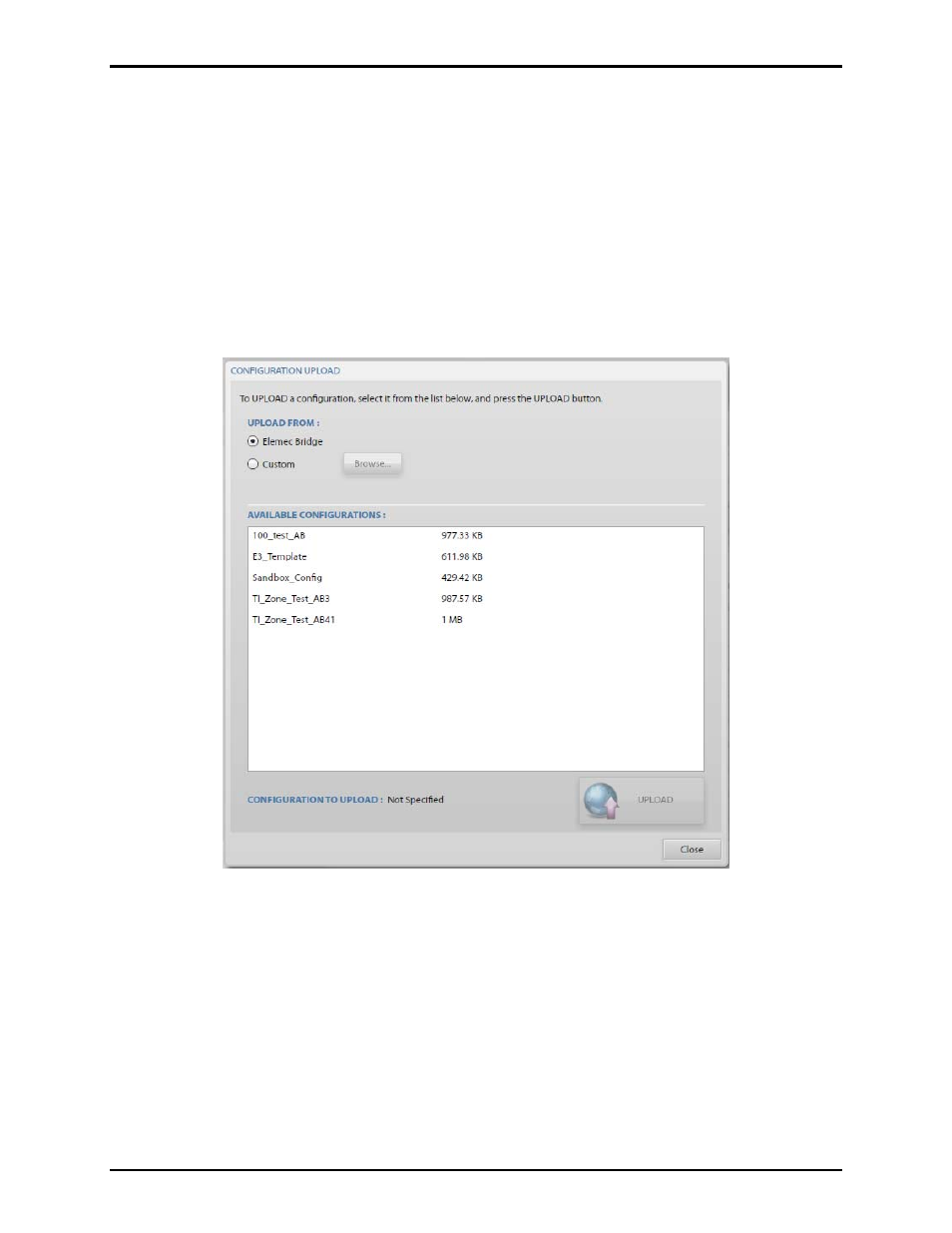

Figure 30. Configuration Upload screen
Select a configuration from the Available Configurations list. When selected, the configuration is
identified at the Configuration to Upload field near the bottom of the screen.
