ICP9000 Navigator Series Console Operator’s Manual
Navigator Configuration
19
12/10
Setup - Operator Setup

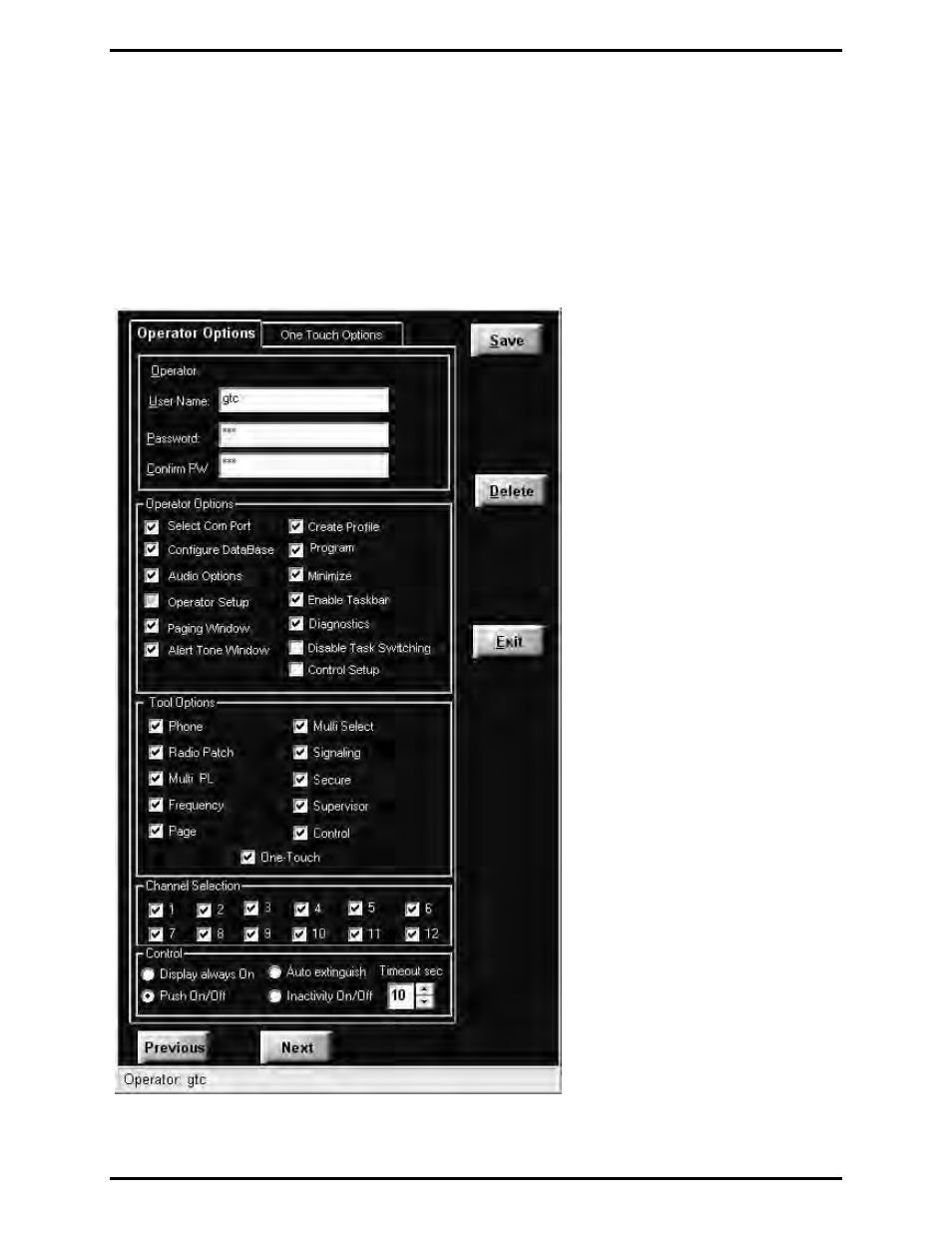

The Operator Setup form contains two tabbed sections, Operator Options and One-Touch Options. The
Operator Options tab is divided into four sections, Operator Options, Tool Options, Channel and Control
Selection, and is used to configure the operator characteristics for an individual operator profile. The
One Touch Options tab defines the aliases, and the order of the aliases assigned to an individual
operator’s profile.
When either tabbed window is active, the window always displays the
S
AVE
,
D
ELETE
,
E
XIT
,
P
REVIOUS
, and
N
EXT
buttons. The buttons represent functions that are related to the operator profile, not the individual
options displayed in the tabbed window.
The name of the current operator
profile is displayed in the status bar
at the bottom of the window.
To create a Setup file for another
operator, press the
N
EXT
button.
When all operator parameters are
configured, press the
S
AVE
button to
save current operator configurations
before pressing the
E
XIT
button to
close the form.
The
D
ELETE
button will remove the
current operator's profile from the
system. The
N
EXT
and
P
REVIOUS
buttons are used to navigate already-
defined operator profiles.
N
OTE
: Allowing the pointer to
hover over a selected option will
initiate its tool tip.
Operator Options
Each operator is assigned a unique
user name and password. When
defining the operator profile, the
password must be entered twice to
ensure accuracy of the assigned
password.
The Operator Options portion of the
form enables the user to select
which options are made available to
each individual operator.
Figure 8.
