Navigator Configuration ICP9000 Navigator Series Console Operator’s Manual
12/10 22
Setup - Control Setup

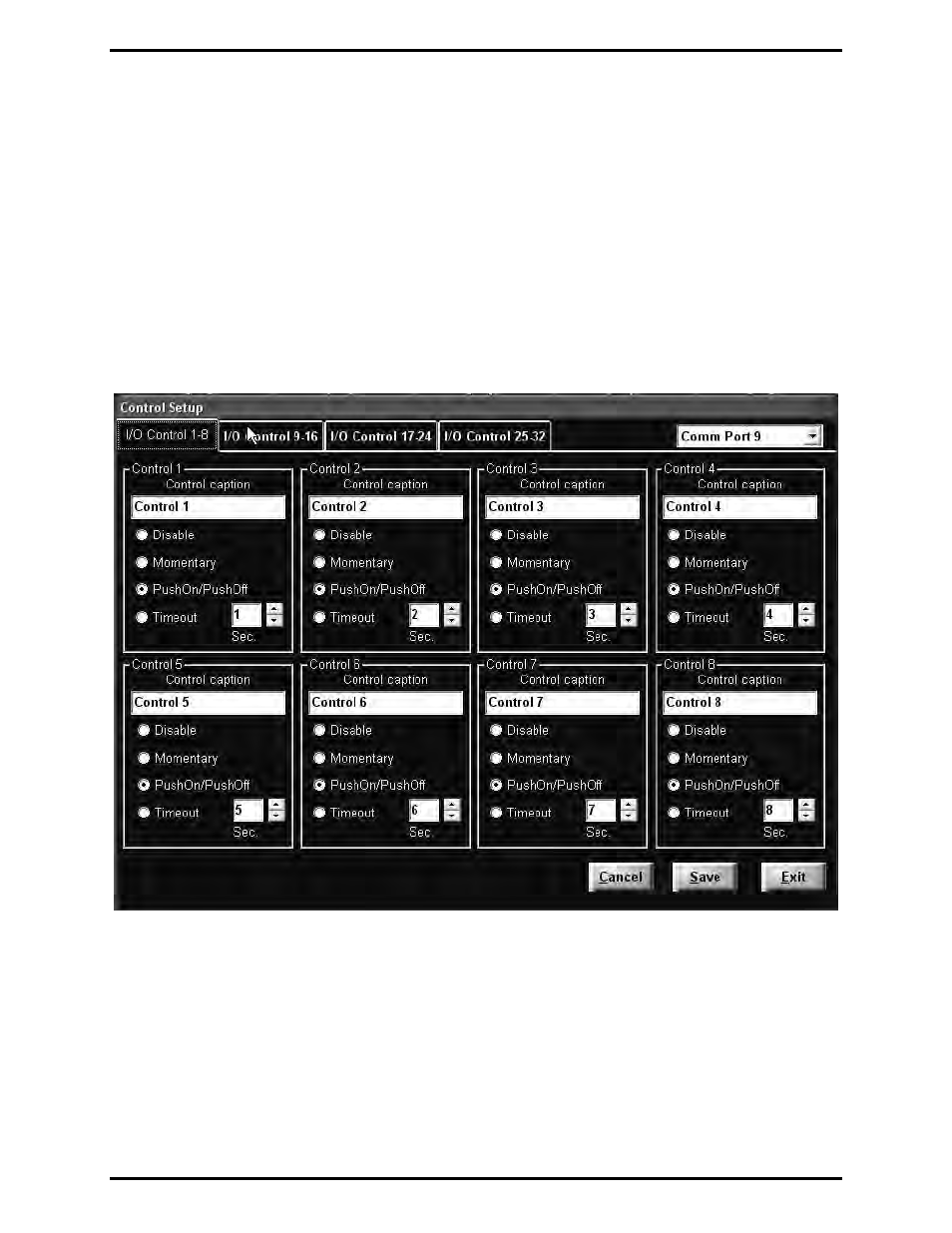

The Control Display is divided into 32 frames. Each frame contains setup functions for an individual
control button. The control caption box allows up to 13 characters for alias labeling. Choosing the
Momentary button causes the output to be turned on until the control button is released. The
PushOn/PushOff choice latches the button in either the On or the Off position. The Timeout selection
causes the output to turn off when the time expires. The timeout can be programmed from one to 100
seconds. Use the box in the upper right hand corner to program the communication port for the I/O
control. When all parameters are configured, press the
SAVE button to save current configurations or
press the EXIT button to save and close the form.
N OTE : If Timeout is selected, the button acts as a push on/off. When the timeout expires the output is
turned off.
If selected, the Disable choice prevents the control button from being displayed on the screen (default
setting). Any selection other than Disable allows the Control button to be displayed.
Figure 10.
