Edge Ti
41

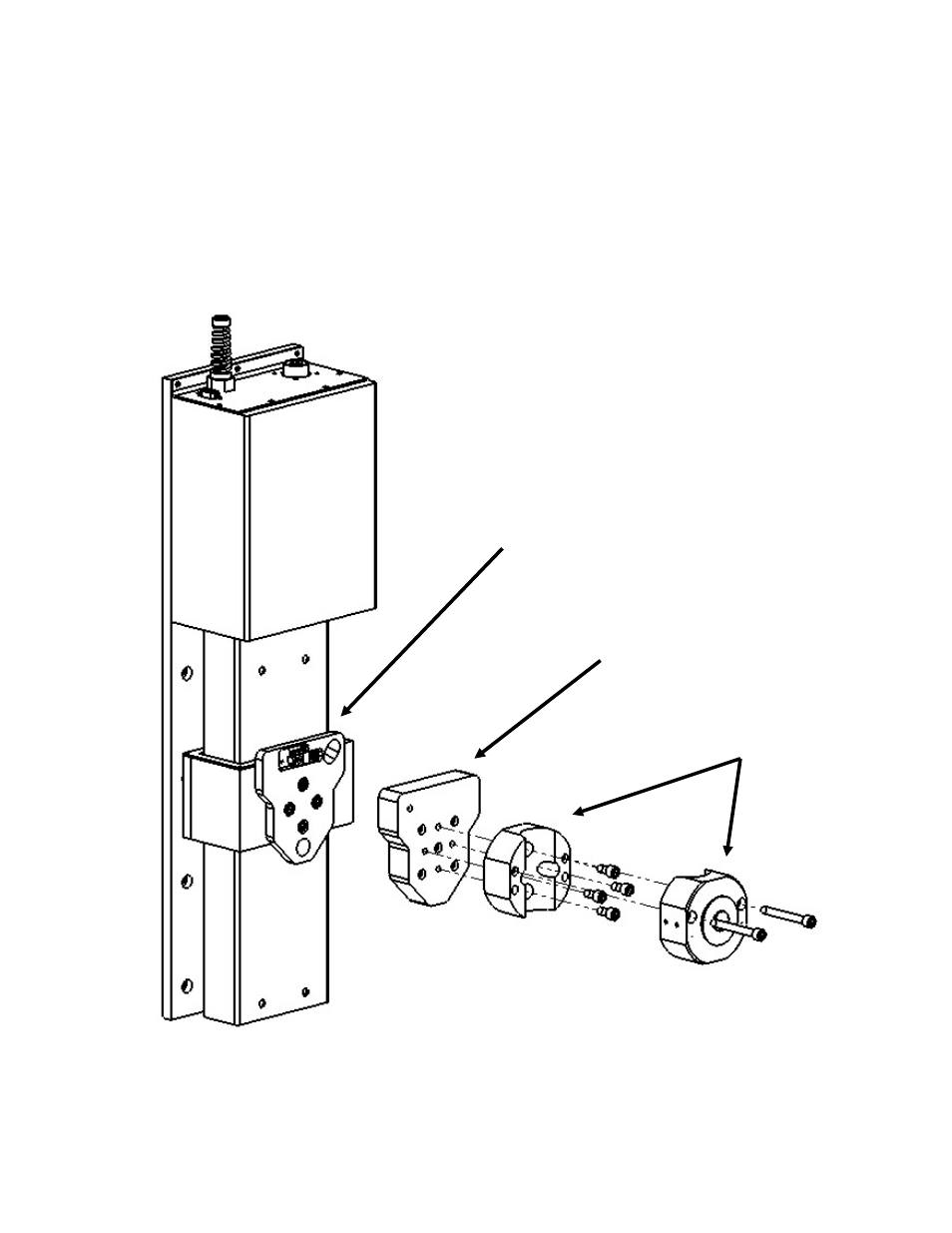

Torch Mounting Block Kit
Mount the torch mounting block kit to the lifter torch breakaway assembly. See
below.
The mounting blocks are available in three sizes as listed.
• PN = MECO-0108 Torch Mounting Block 1 3/4” diameter
• PN = MECO-0109 Torch Mounting Block 2” diameter
• PN = MECO-0130 Torch Mounting Block 1 3/8” diameter
Breakaway
Mounting Plate
Torch Breakaway
Torch Mounting
Clamp
