Voyager III
48

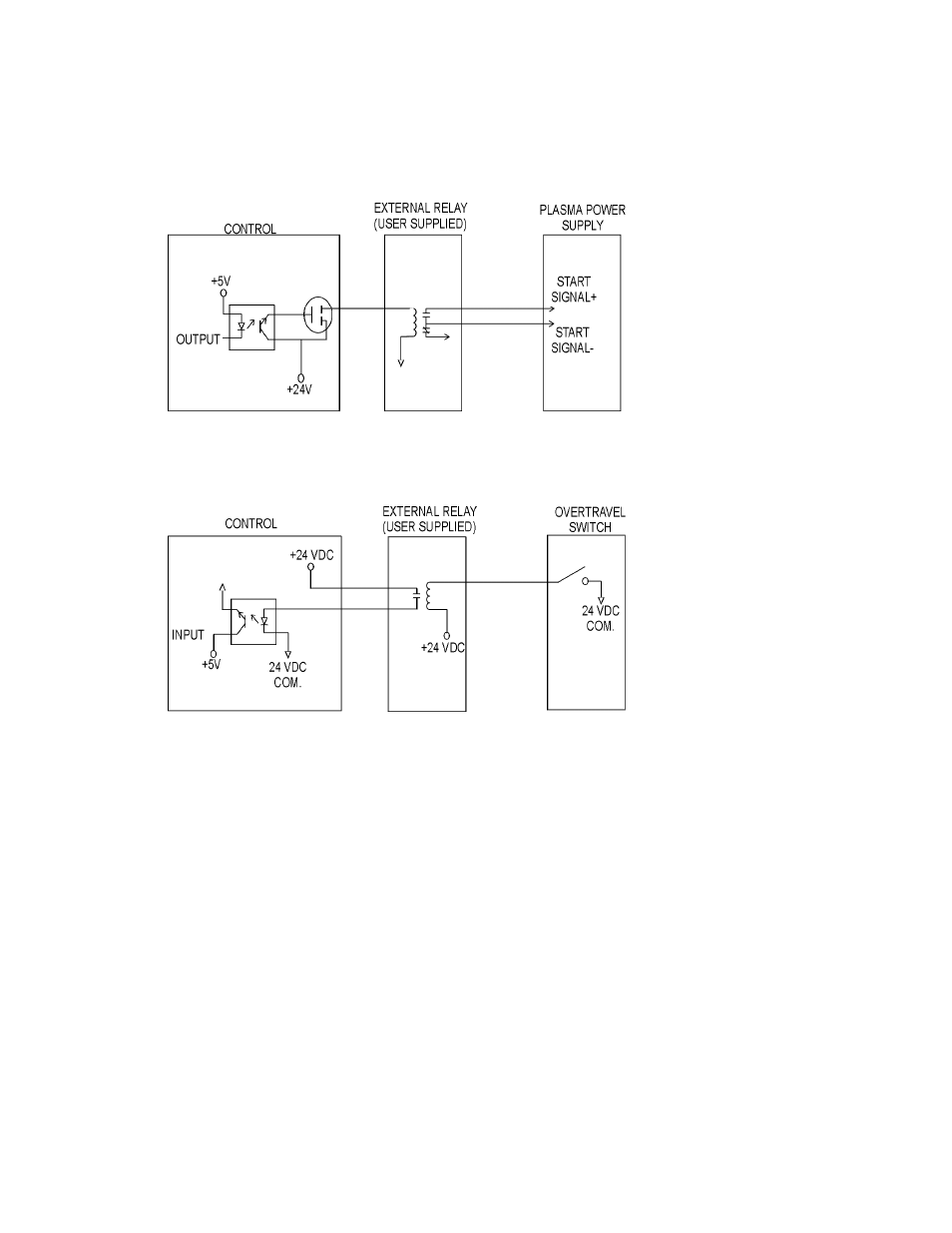

Examples of possible circuits
Output
Single Ended I/O Pinout
The Single Ended I/O offers up to 48 outputs which are rated at 24VDC for up to
1-amp loads and 32 inputs rated for 24VDC as standard
I/O Connector
Pin Description
1 Output
1
2 Output
2
3 Output
3
4 Output
4
5 Output
5
6 Output
6
7 Output
7
8 Output
8
9
+24 VDC Common
10
+24 VDC Common
Input
24 VDC
Com
