4-42

MAX200

Service Manual

PARTS LIST

14

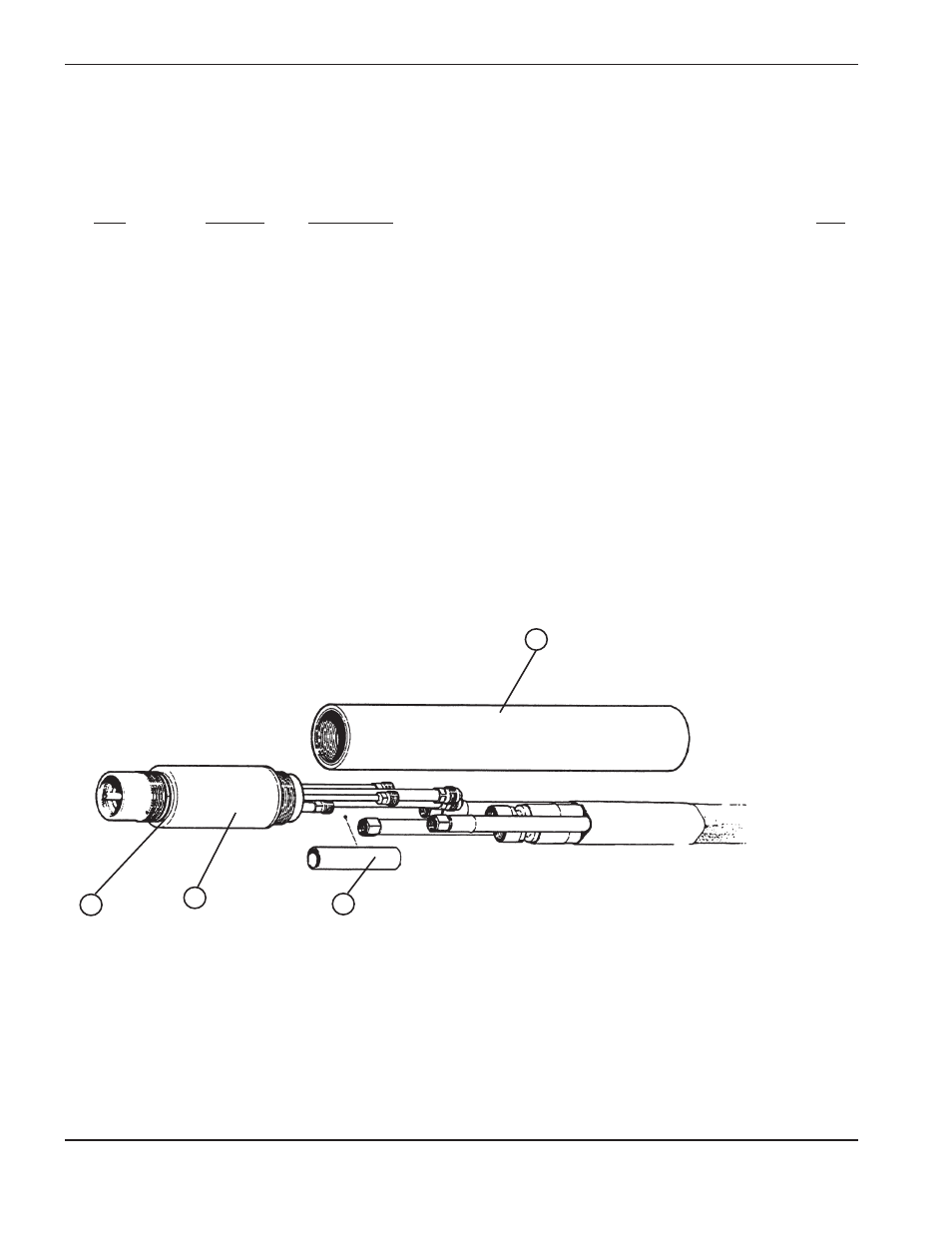

Figure 4-18a MAX200 Machine Torch Assembly (Optional)

MAX200 Machine Torch Assembly with 2" Stainless Steel Torch Body and 2" diameter
Sleeve (Optional)

Part

Item

Number

Description

Qty.

128365

MAX200 Machine Torch Assembly

1

1

020041

Sleeve, Insul, MAX200 Mach, 2.0" diameter

1

2

120356

MAX200 Machine Torch Main Body

1

3

020536

Lead insulator 9/16 X 2.5 Tef

1

4

044027

O-ring, Buna-N

1

The following consumables are part of the MAX200 Machine Torch Assembly.
See Figure 4-17 for details.

020424

Shield, MAX200 Mch 200A

1

020423

Cap, Nozzle Retaining, MAX200

1

020608

Nozzle MX200 200A .086 Air/N2/H35

1

020607

Swirl ring, MAX200 Air/N2/H35

1

220021

Electrode, MAX200 Air O/2

1

1

3

2

4
