Measurement Computing LogBook Series - Manual (Page 151)

Software Reference 989592 LogView LV-25
Save
The Save command allows you to store the configuration file you are currently working on.

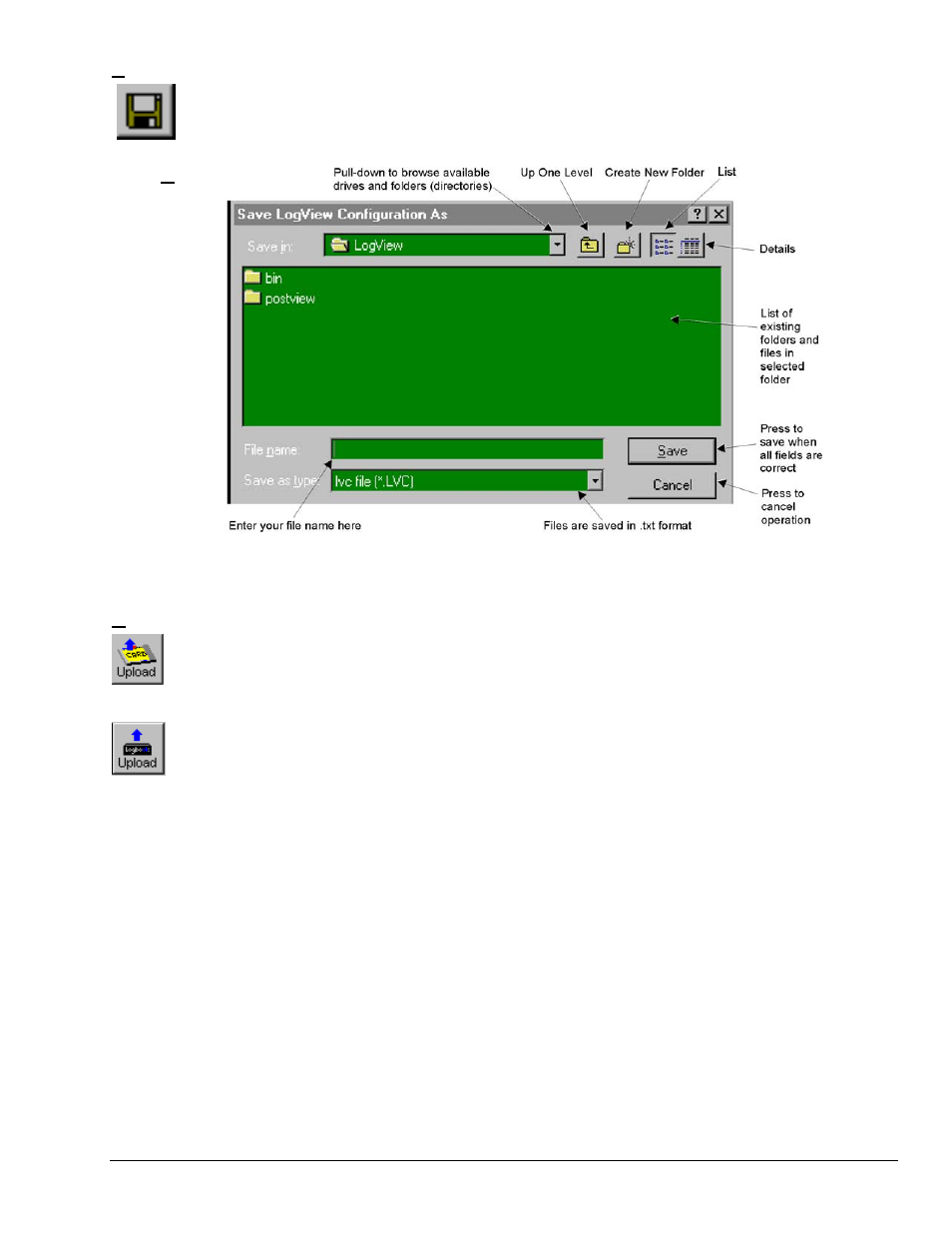

The Save As command uses the same window as the Save command and allows you to enter a new
file name. The current file remains unchanged from its last save.
Save As
(no toolbar
icon)
Upload
or
The Upload command uses LogView’s Explorer to get data files from a PC-Card. The PC-Card can
reside in LogBook if LogBook is attached to the PC or in the PC’s card slot if the PC-Card was
manually transferred from a remote LogBook.
Note: The Upload icon and the Explorer item in the Device menu can upload from both LogBook
or the PC’s card slot; in either case, the icon looks slightly different as shown at left.
When the <Upload> button is clicked:
• If only 1 acquisition file (inactive) resides on the PC-Card, all that data is uploaded to the PC’s
hard drive.
• If more than 1 acquisition file resides on the PC-Card, an exploring window will appear and
allow you to select which acquisition files or trigger blocks you may wish to upload.
• (attached mode only) If the only acquisition file on the PC-Card is active, all acquired data will
be uploaded. To prevent duplication of records and conserve storage space, data already
uploaded is then deleted from the PC-Card.
