Dimensional Drawings 878394 DD-9

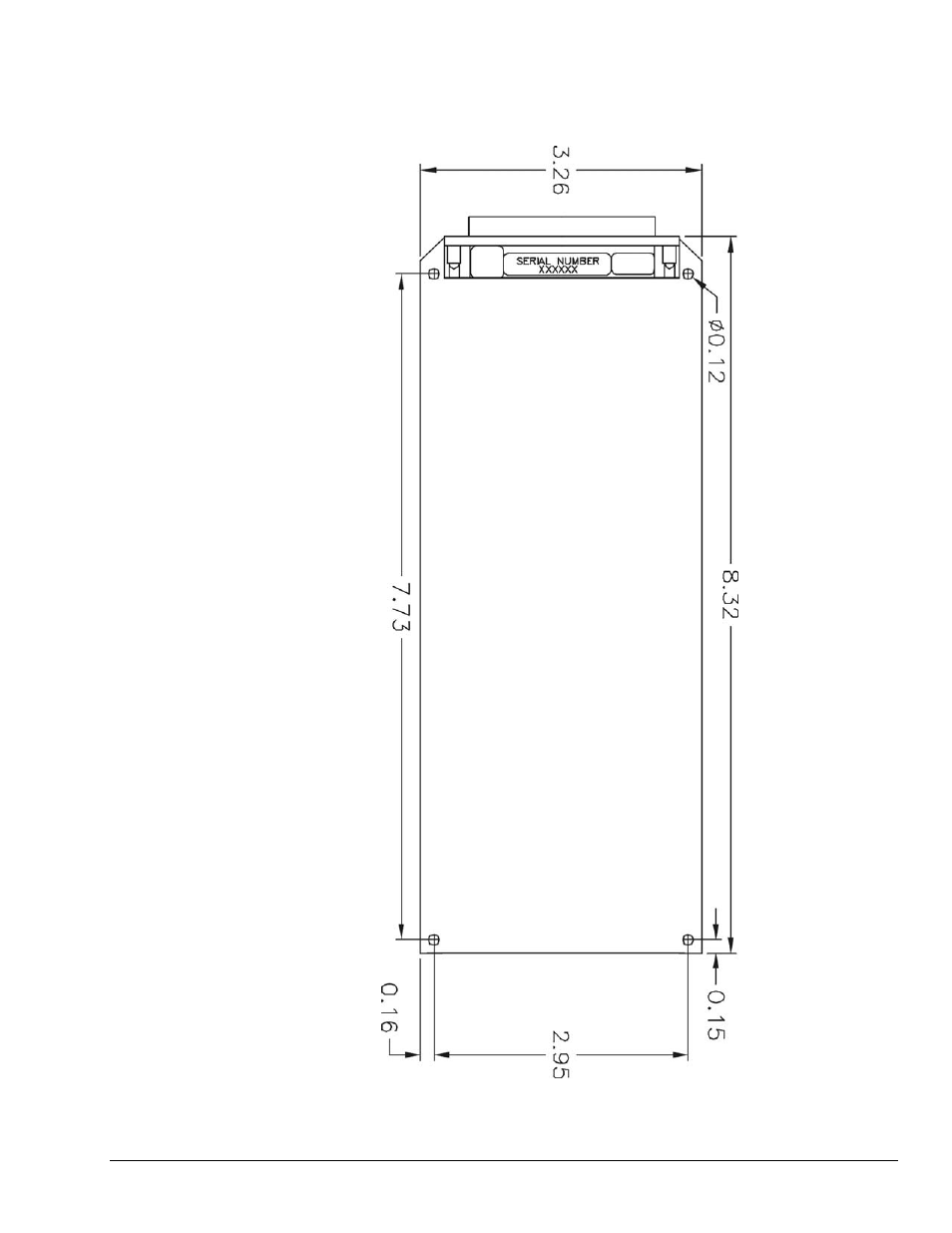

Dimensions for DBK Cards and Boards
(excludes DBK46 and DBK200 Series)
3.26” x 8.32” Board Size Category
Note 1: DBK82, being significantly thicker than other boards, does not fit into 1-slot enclosures such as the DBK10 and
the DaqBook/216. DBK82 does fit into DBK41 enclosures and in drawer type products such as DaqBoard/260.
Note 2: DBK83 makes use of an external screw-terminal connector designated as POD-1 (see page DD-19).
These dimensions apply to
the following:
DBK2
DBK4
DBK5
DBK7
DBK8
DBK9
DBK11A
DBK12
DBK13
DBK15
DBK16
DBK17
DBK18
DBK19
DBK20
DBK21
DBK25
DBK32A
DBK33
DBK44
DBK45
DBK80
DBK81
DBK82
(Note 1)
DBK83 (Note 2)
