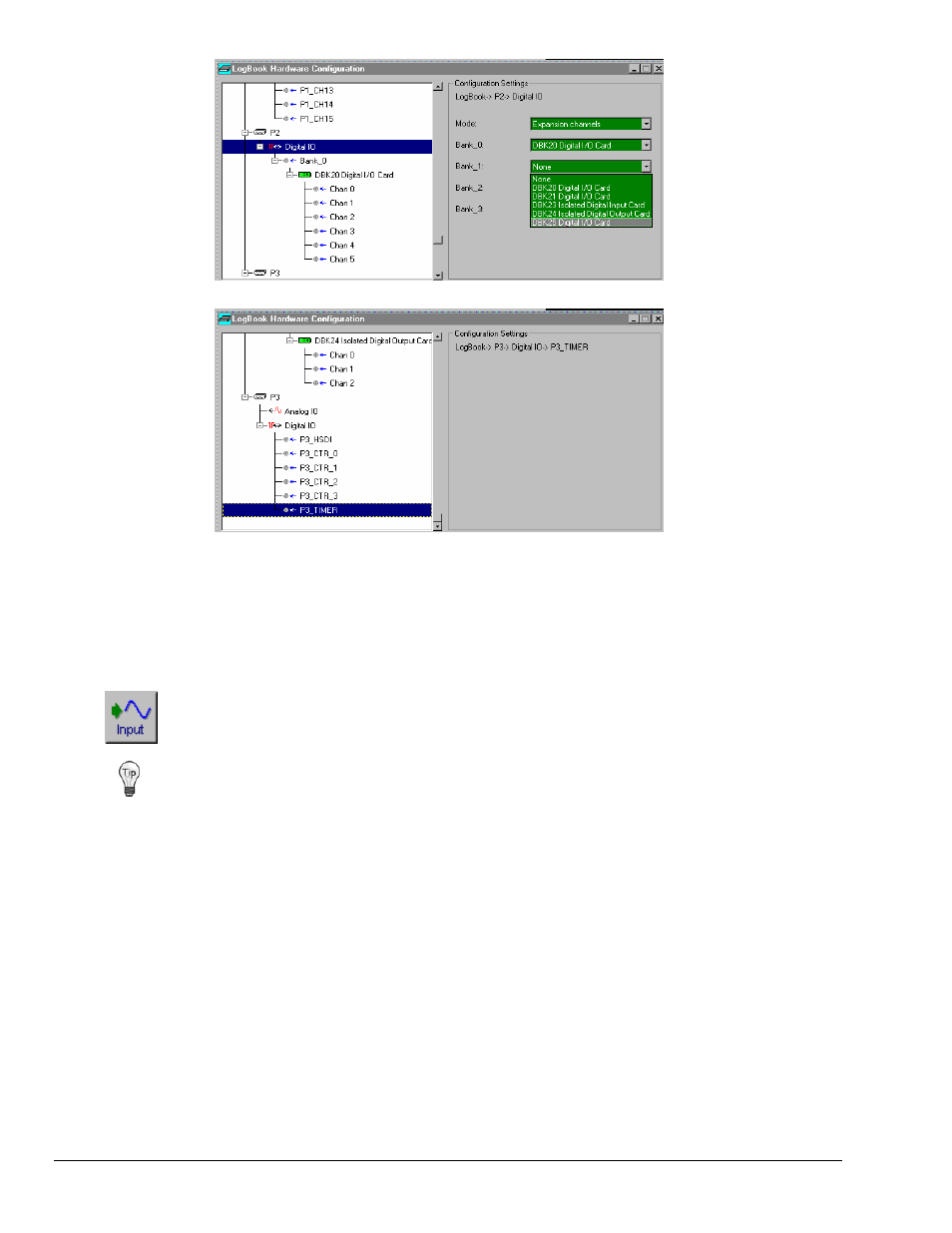

This figure shows user
selecting a particular DBK
as assigned to 1 of 4
banks of channels on P2.
This figure shows user
selecting LogBook’s timer
on P3’s Digital I/O line.
Analog Input Channel Configuration
The analog input spreadsheet (see following figure) uses four tabs to group analog input parameters.
Always visible are the Physical Channel, User Label, On/Off, real-time Reading, Range, Units, and
Channel Type columns. Clicking a tab exposes one of the four sub-windows of parameters including
Storage, DBK Parameters, User Scaling, or 2-Point Calibration.
If beneficial, adjust column width by placing the cursor on the line between columns (in the
column header) and drag the line left or right as needed, for example, to enter a more
descriptive user label.
