LogBook User’s Manual 919495 LBK and other non-DBK Options 5-1
LBK and other non-DBK Options 5
LBK Options, Location Reference …… 5-1
LBK/COM/422/485 …… 5-2
LBK/MEM1-U, Expanded Memory (16 MB Upgrade) …… 5-3
LBK1, Remote LogBook Terminal …… 5-4
LBK2, Four Channel, Digital-to-Analog Output …… 5-9
Remote On/Off Switch and LED Indicator Options …… 5-11
Reference Notes:
¾ GPS and Serial Device Data Collection information is presented in Chapter 6.
¾ Modem and Upload Scheduler information is presented in Chapter 7.
LBK Options, Location Reference
The following location reference applies to hardware aspects of LogBook’s LBK options. A fuse, serial board,
and PC-Card are included in the illustration for component reference.
Although the following drawing is based on LogBook/360, it can be used for LogBook/300 motherboard
reference. The remainder of this chapter discusses the installation of each option, and includes a board layout.

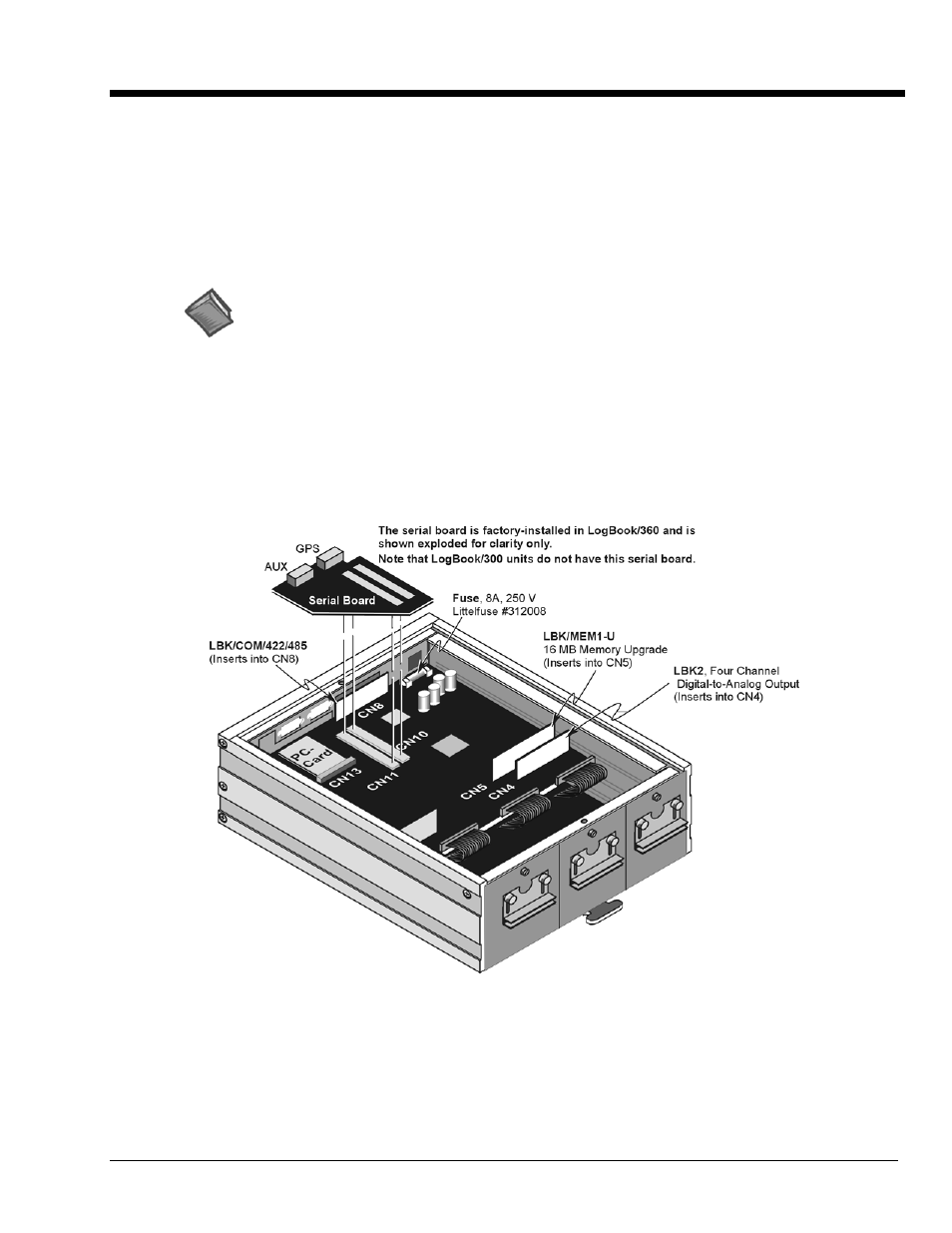

Component Location Reference
Notes: (1) Information regarding LBK1 (the remote LogBook Terminal) begins on page 4-4.
(2) The actual LogBook motherboard, depicted above for LogBook/360, also applies to LogBook/300.
(3) The AUX/GPS Serial Board is factory-installed in LogBook/360.
(4) The AUX/GPS Serial Board is not used in LogBook/300.
