25 | Installation
Electrical
General
MHTC Flow Electrical

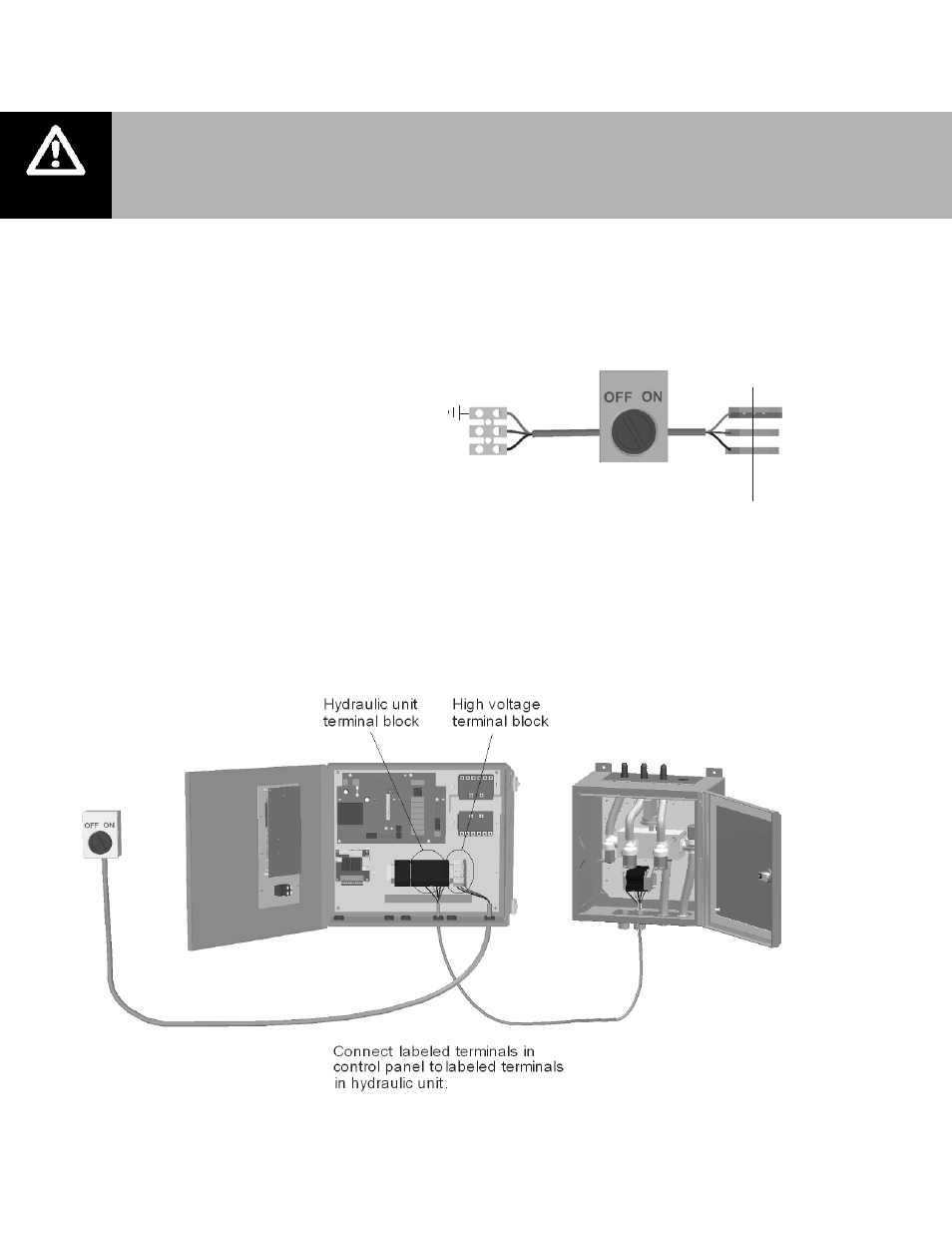

Figure 23: MHTC Flow Primary Power and Hydraulic Unit Wiring
Caution:
 Wiring to be performed by a licensed Electrician.
 All MH models operate on 120 VAC, single phase, 60 HZ power. Refer to
specification label for power requirements.
MHPrimary Power
Note:
1
2
3
4
Dedicated external fused
disconnect must be installed.
Fusing must not exceed max
circuit protection as indicated
on the specification label.
Ensure that adequate power is
available to carry full MH
amp draw as indicated on the
specification label.
All wiring to be in accordance
with national and local electrical
codes.
For MHTC Reflow and Flow wire
hydraulic units as shown in
following illustrations.
L1
Neutral
Ground
L1
Neutral
Ground
Single Phase Supply
E
X
T
I
N
T
Dedicated circuit
breaker or fused
disconect.
