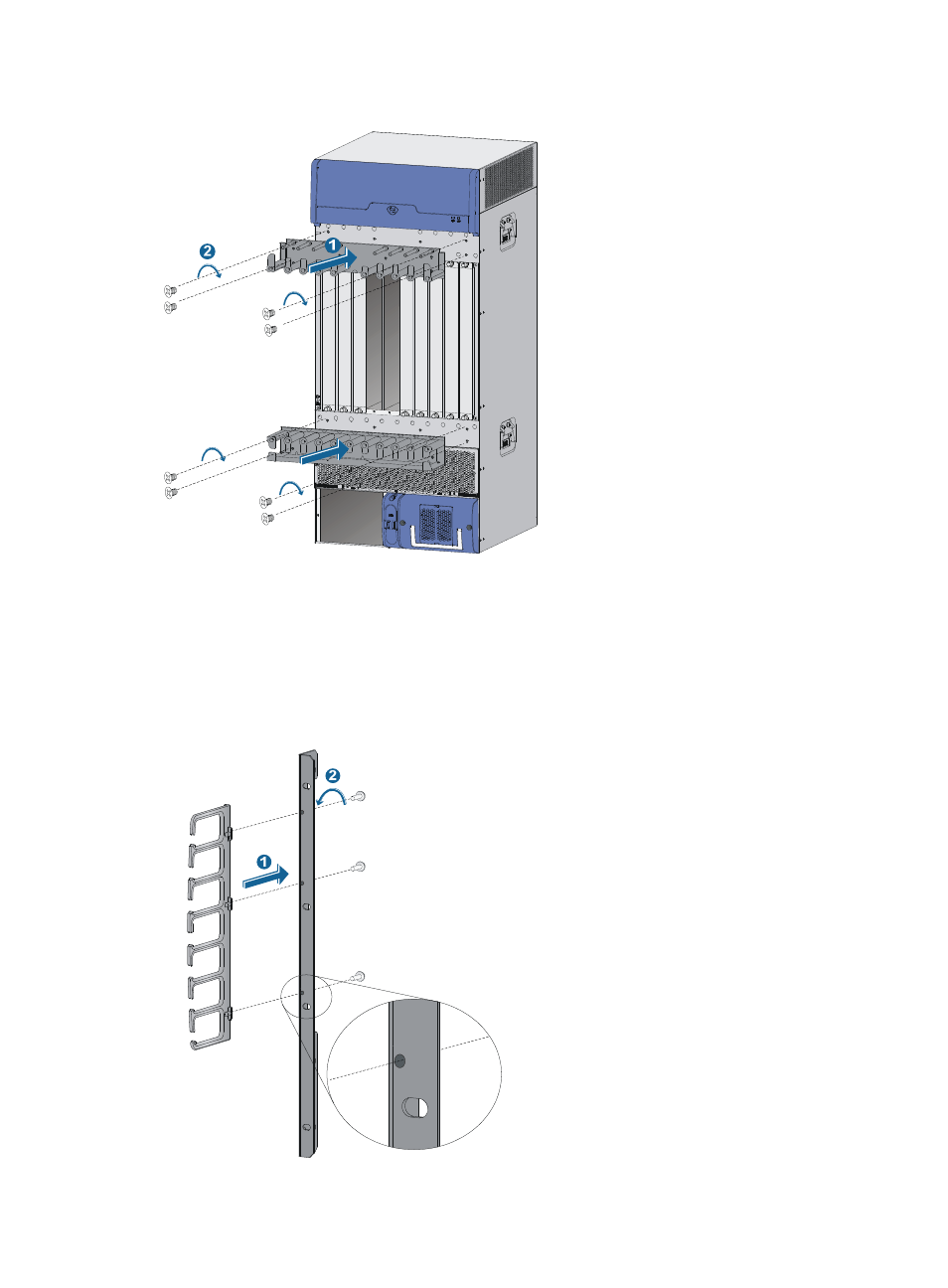

Figure 21 Installing cable management brackets on an S9508E-V
Installing the cable management brackets on the S9505E/S9508E/S9512E
For the S9505E/S9508E/S9512E, install the cable management brackets to the mounting brackets
(cable management brackets and mounting brackets are required at both sides of the chassis).
shows how to install a right cable management bracket. The method for installing the left cable
management bracket is similar.
Figure 22 Installing the cable management bracket for the S9505E/S9508E/S9512E
