Introduction
2.2 Visual display unit and operating panel
2
72
TNC 640 | User's ManualDIN/ISO Programming | 1/2015
Control Panel

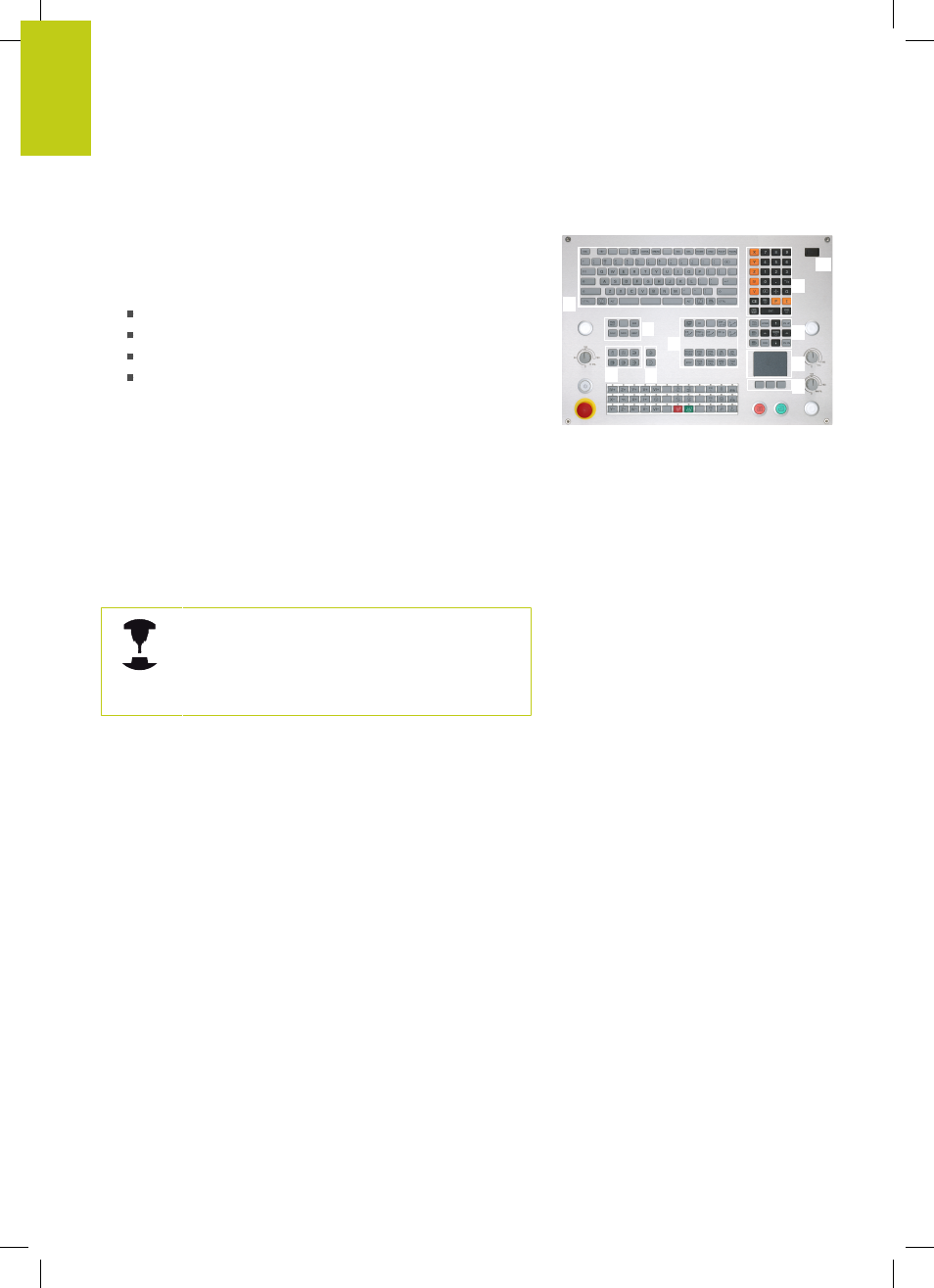

The TNC 640 is delivered with an integrated keyboard. The figure to
the right shows the operating elements of the operating panel:
1
Alpha-numeric keyboard for entering texts and file names, as
well as for DIN/ISO programming
2
File management
Calculator
MOD function
HELP function
3
Programming modes
4 Machine operating modes
5 Initiating programming dialogs
6 Navigation keys and GOTO jump command
7 Numerical input and axis selection
8
Touchpad
9
Mouse buttons
10 USB connection
The functions of the individual keys are described on the inside
front cover.
Some machine manufacturers do not use the
standard operating panel from HEIDENHAIN. Refer
to your machine manual.
External buttons, e.g. NC START or NC STOP, are
described in the manual for your machine tool.
