7-58
Instruction Set of the I/O Processor
7.7 Package Drawings
is the 169-pin PBGA mechanical drawing and
is
the 160-pin PQFP mechanical drawing for the LSI53C875.

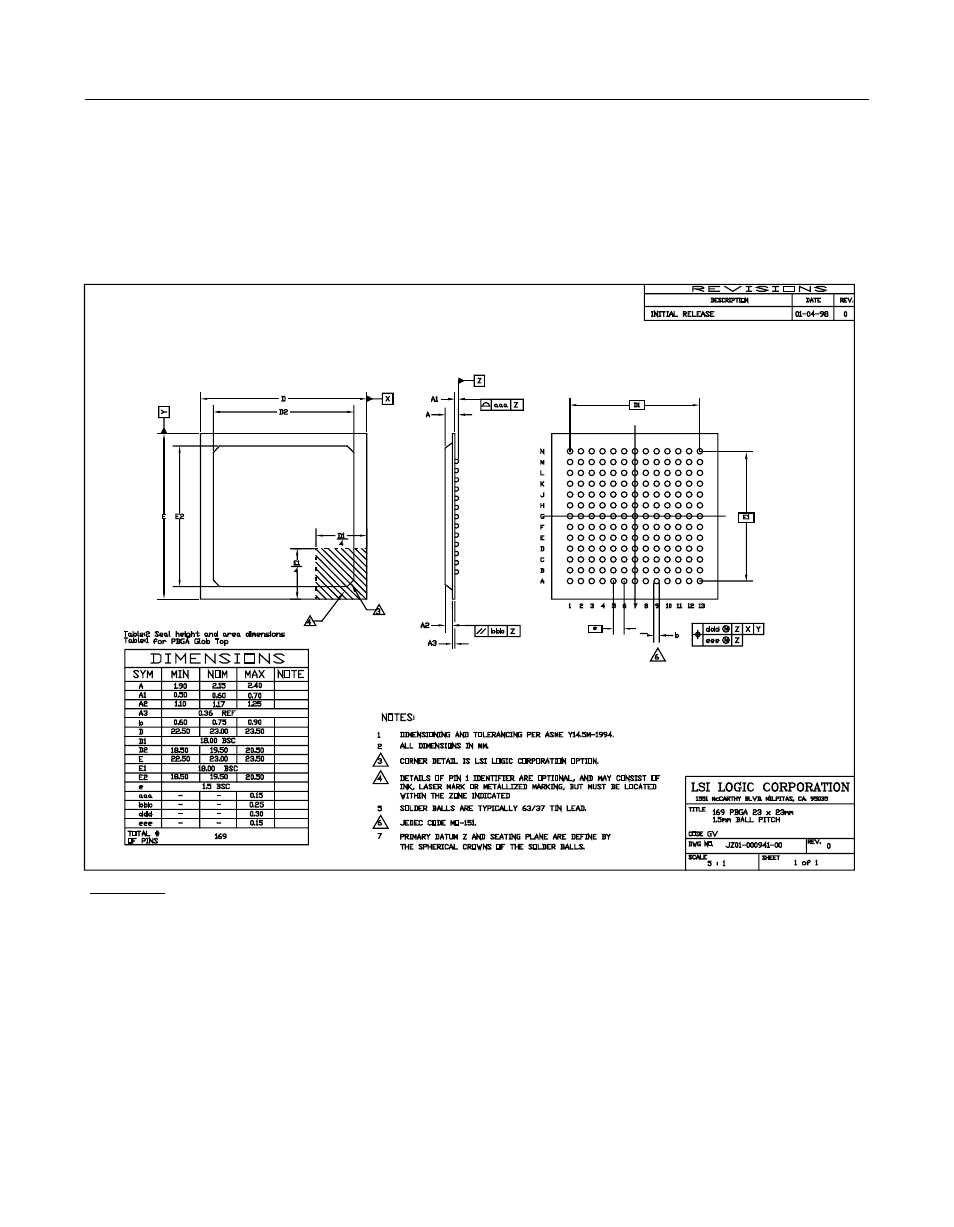

Figure 7.36 169-Pin PBGA (GV) Mechanical Drawing
Important:
This drawing may not be the latest version. For board layout and manufacturing, obtain the
most recent engineering drawings from your LSI Logic marketing representative by
requesting the outline drawing for package code GV.
