1. Introduction
7
Components

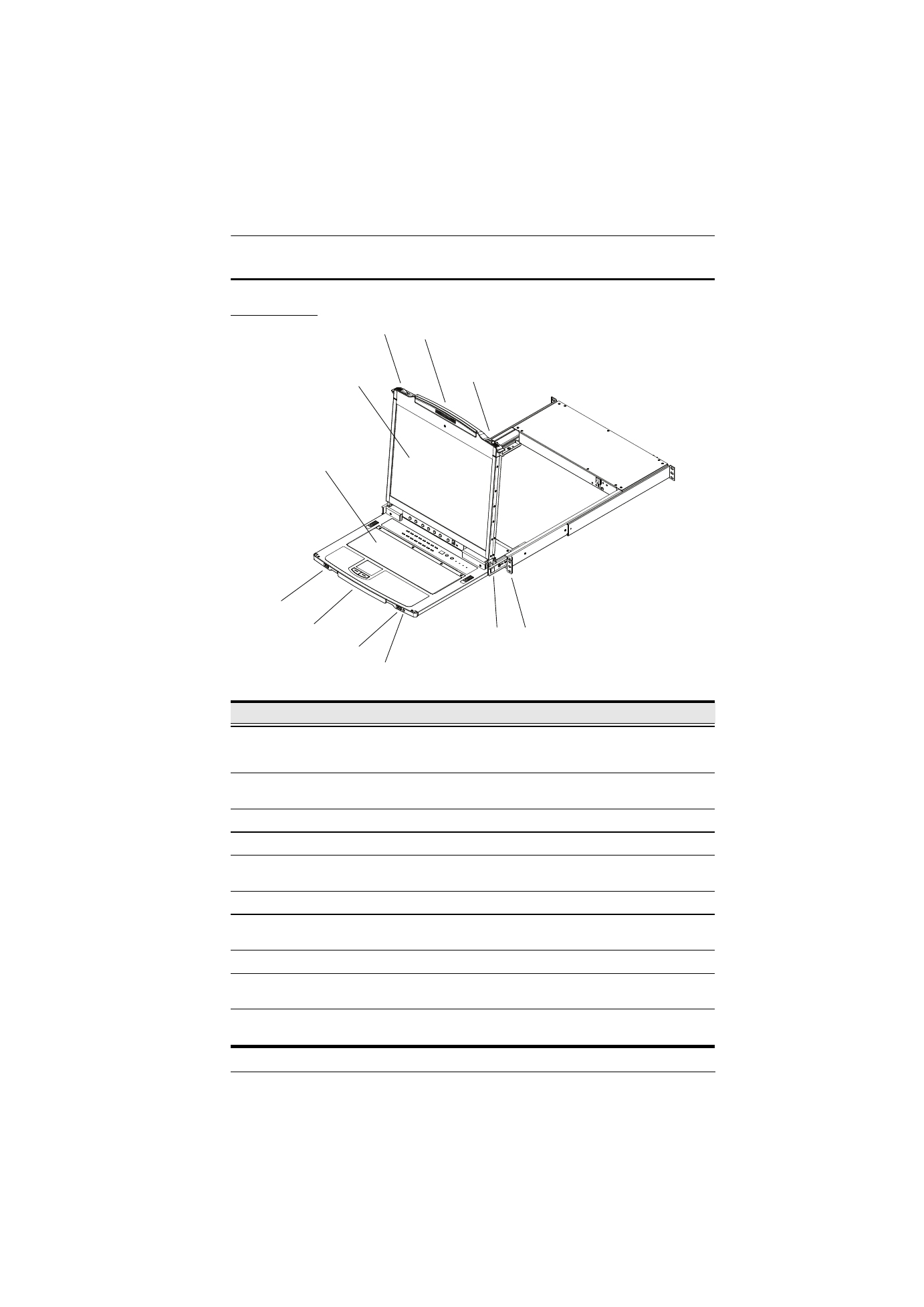

Front View
No. Component Description
1 Upper Handle Pull to slide the LCD module out; push to slide it in.
See Opening the Console , page 19, for details on sliding the
console in and out
2 Module Release
Catches
In order to slide the console out, you must first release it by
sliding these catches to the inside.
3 LCD Module See LCD Module , page 9.
4 Keyboard Module See Keyboard Module , page 8.
5 USB Port The USB port is available to connect a USB 1.1 peripheral
device (flash drive, CD-ROM drive, etc.) to the switch.
6 Lower Handle Pull to slide the Keyboard module out; push to slide it in.
7 External Mouse
Port
A USB mouse port is provided for users who prefer to use an
external mouse.
8 Power LED Lights (blue) to indicate that the unit is receiving power.
9 LCD Release
Catch
These catches (one on each side) release the LCD Module
so that you can slide it away.
8 Rack Mounting
Tabs Rack mounting tabs are located at each corner of the unit.
See
Standard Rack Mounting , page 12, for details.
1
2
2
3
4
5
6
7
8
9 10
