1. Introduction
9

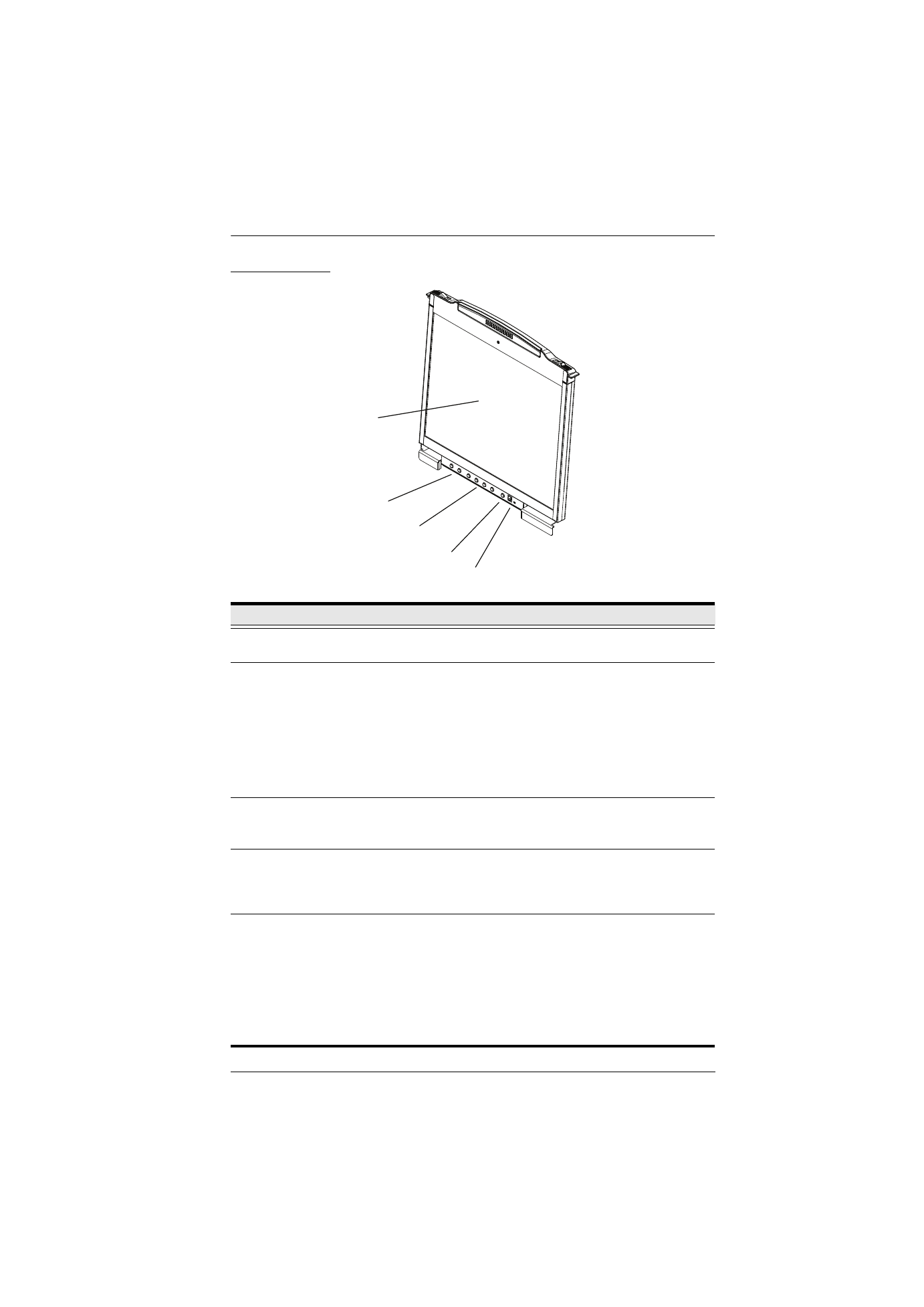

LCD Module
No. Component Description
1 LCD Display After sliding the LCD module out, flip up the cover to access
the LCD monitor.
2 Port Navigation
Switches
These buttons can be used to access a port when the
Keyboard Module isn’t extended. Press the UP or DOWN
button to cycle forward or backward through the ports.
Š
The left (DOWN) button shifts the KVM focus down the
chain (Port 2
→
Port 1, etc.). After Port 1, it cycles to the
last port.
Š
The right (UP) button shifts the KVM focus up the chain.
After the last port, it cycles back to Port 1.
3 LCD OSD
Controls Buttons to control the position and picture settings of the
LCD display are located here. See
LCD OSD Configuration ,
page 26, for details.
4 LCD Power
Button Press this button to turn the LCD monitor on and off. When
the LCD monitor is off, this button illuminates; when the LCD
monitor is on, this button does not illuminate. (This function
only affects the monitor, not the KVM switch itself.)
5 Firmware
Upgrade
Section
Š
Firmware Upgrade Port: The Firmware Upgrade Cable
that transfers the firmware upgrade data from the adminis-
trator's computer to the CL5808/CL5816 plugs into this
RJ-11 connector.
Š
Firmware Upgrade Switch: During normal operation this
switch should be in the NORMAL position. (See The
Firmware Upgrade Utility , page 57 for firmware upgrading
details.)
2
1
3
4
5
