CL5808/CL5816 User Manual
8

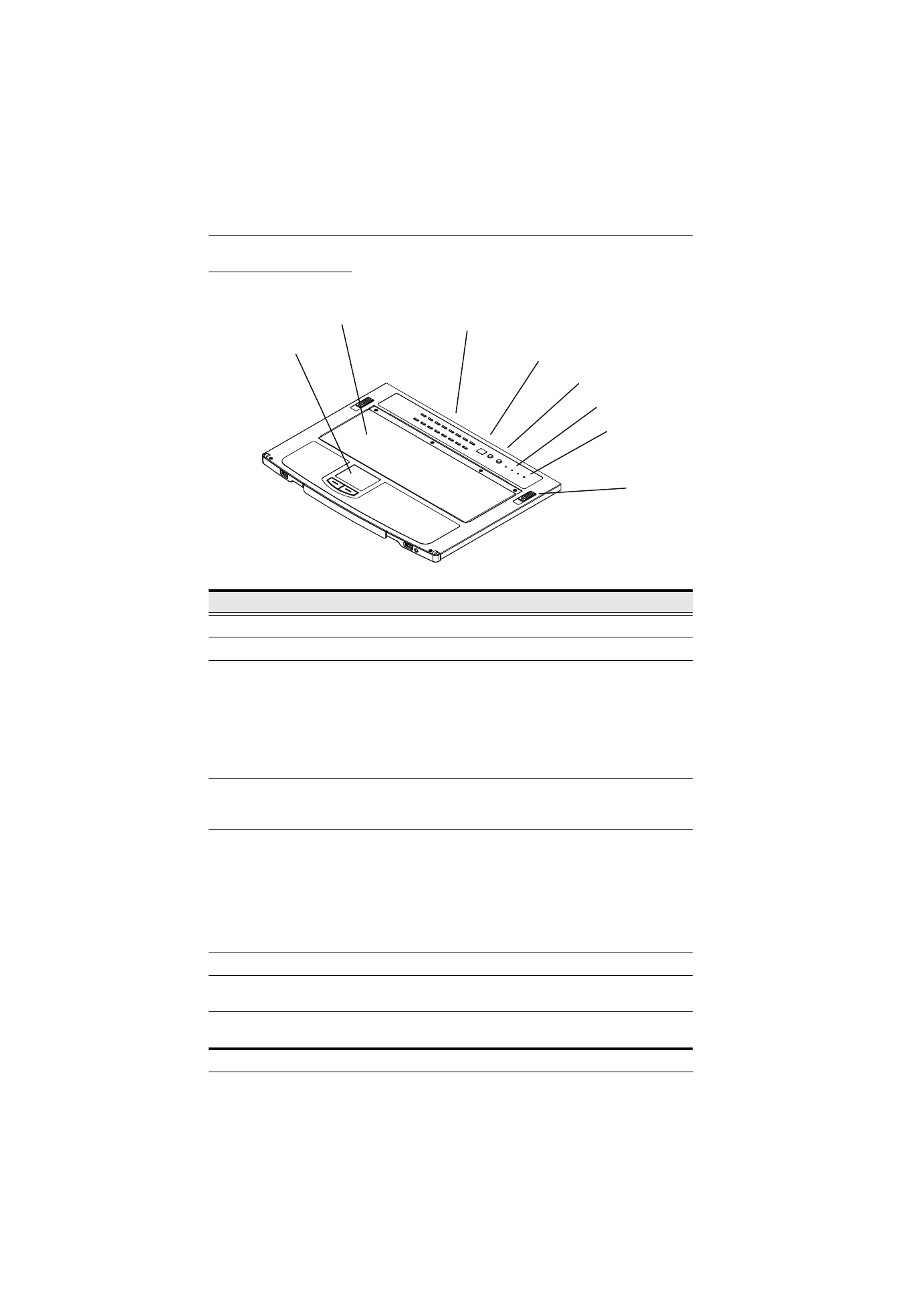

Keyboard Module
No. Component Description
1 Touchpad Standard mouse touchpad
2 Keyboard Standard 105-key keyboard
3 Port Selection
Buttons and LEDs
To access a Port on the currently selected Station press its
corresponding port selection button. Indicator LEDs are built
into the switches:
Š
An On Line LED lights to indicate that the computer
attached to its corresponding port is up and running.
Š
A Selected LED lights to indicate which port has the KVM
focus.
4 Station ID LED In a daisy chained installation, the Station ID of the currently
selected station displays as a 2 digit figure in this panel.
See
Manual Port Switching , page 29 for further details.
5 Station Selection
Buttons
In a daisy chained installation, press the UP or DOWN
button to cycle to the desired Station.
Š
The left (DOWN) button shifts the KVM focus down the
chain (Station 2
→
Station 1, etc.). After Station 1, it
cycles back to the last station.
Š The right (UP) button shifts the KVM focus up the chain.
After the last station, it cycles to Station 1.
6 Lock LEDs Num Lock, Caps Lock, Scroll Lock LEDs are located here.
7 Reset Switch Located to the right of the Lock LEDs. Press this recessed
switch in with a small object to perform a system reset.
8 Keyboard
Release Catch These catches (one on each side) release the keyboard/
touchpad module so you can slide it away.
2
1
3
4
5
6
7
8
