G Tray/Large tray (optional)
Holds the ejected print outs.
U “Attaching and Removing the Tray” on page 42
H
Cartridge cover (right)
Open when replacing ink cartridges or the maintenance cartridge.
U “Replacing Ink Cartridges” on page 45
U “Replacing the Maintenance Cartridge” on page 53

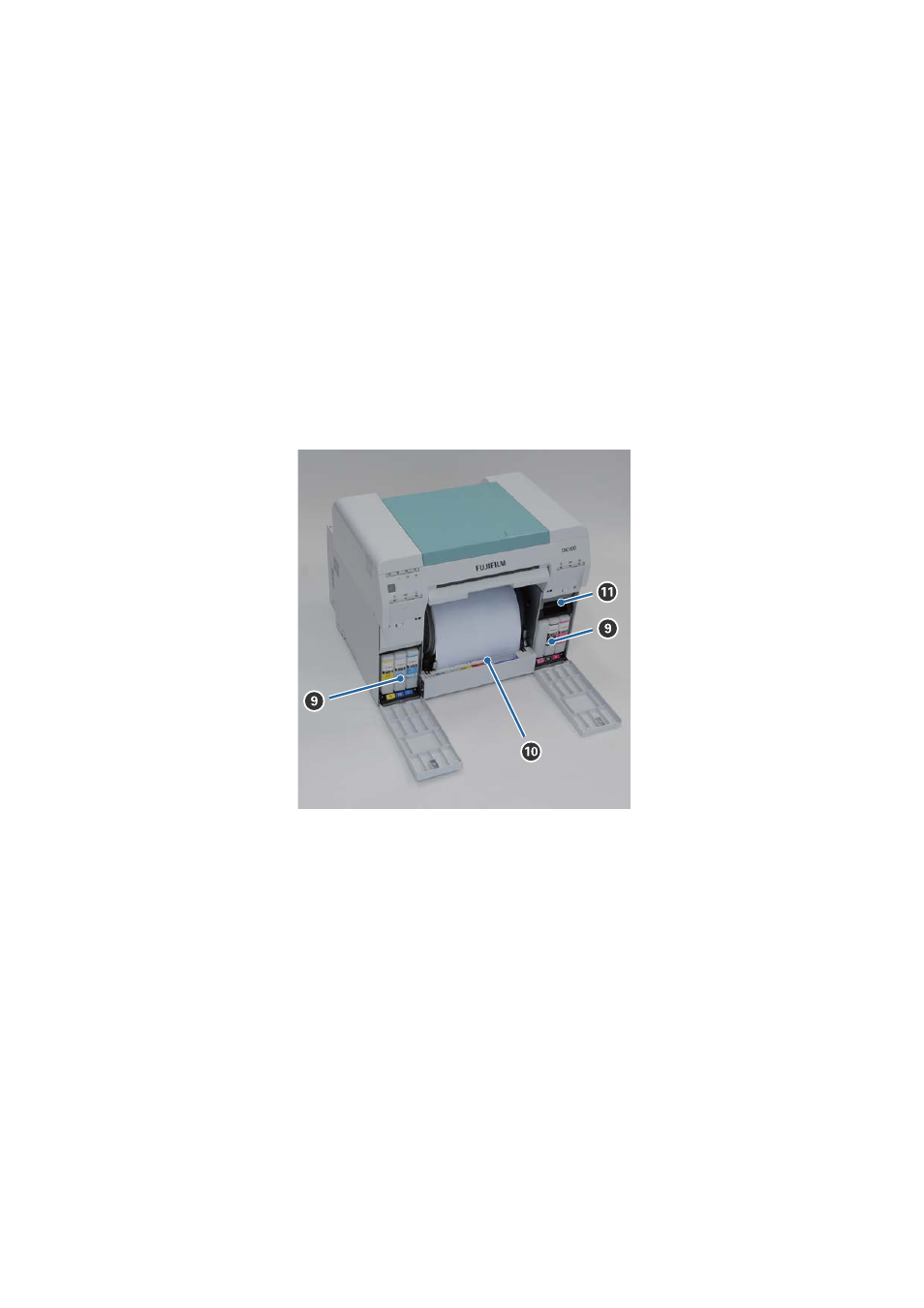

When the scrap paper box is removed and the cartridge cover is open
I Ink cartridges
Install six color ink cartridges.
J
Roll paper feeder
Pull it to the front when removing the spindle unit.
K
Maintenance Cartridge
Container that holds the waste ink fluid.
U “Replacing the Maintenance Cartridge” on page 53
Frontier-S Operation Guide
Introduction
7
