- Or in Remote On mode: Apply start signal on terminal 18
[0]
* Off Auto Tune function is disabled.
[2] Enable Auto Tune Auto Tune function starts running.
NB!
To gain optimum tuning of frequency converter, run Auto Tune on a cold motor.

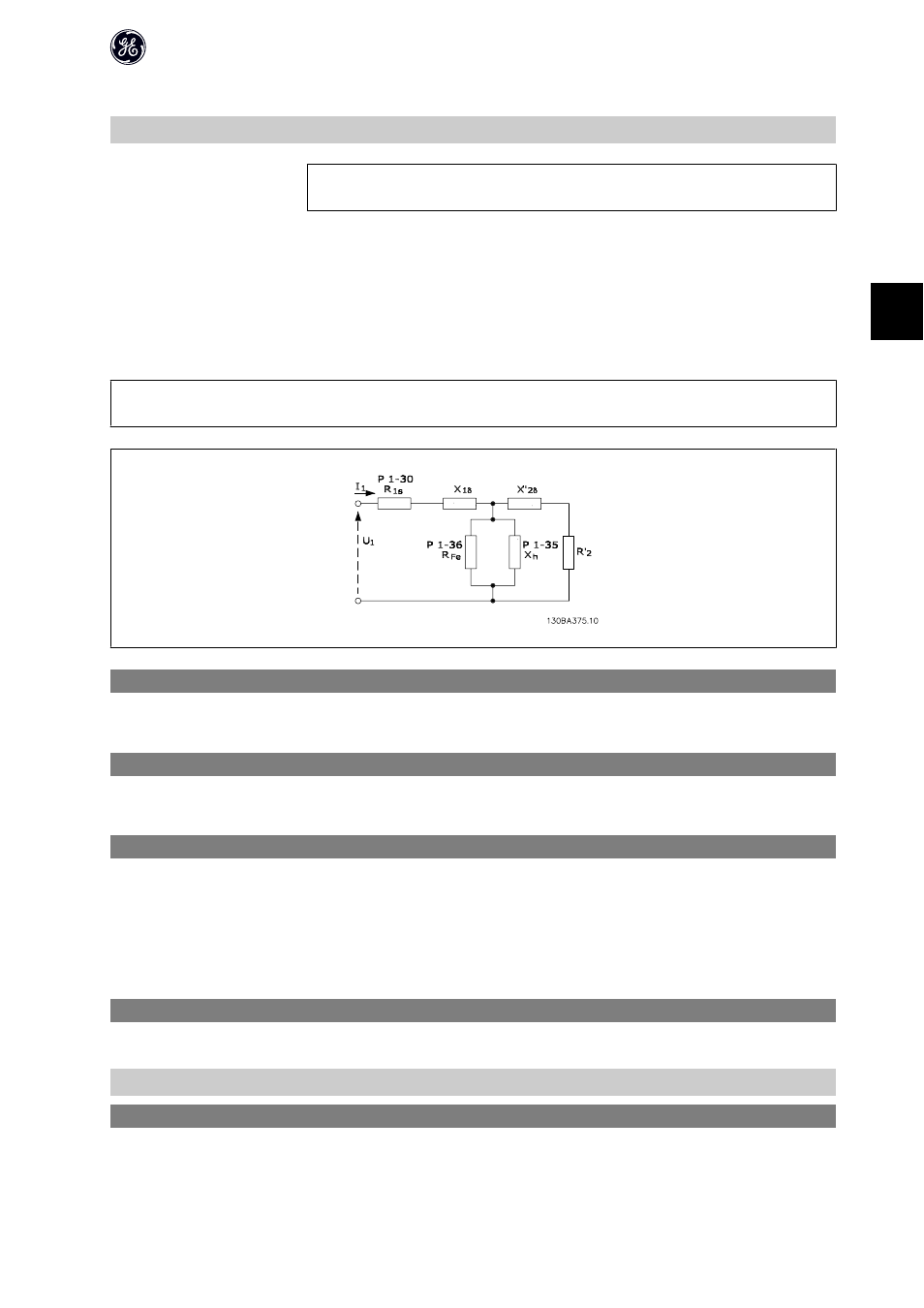

4.2.2. 1-3* Adv. Motor Data
Adjust advanced motor data using one of these methods:
1. Run Auto Tune on cold motor. Frequency converter measures value from motor.
2. Enter X 1 value manually. Obtain value from motor supplier.
3. Use R
s
, X
1
, and X
2
default setting. Frequency converter establishes setting based on motor nameplate data.
NB!
These parameters cannot be changed while motor runs.
1-30 Stator Resistance (R
s
)
Range: Function:
Depending on motor data
*
[Ohm]
Set stator resistance value.
1-33 Stator Leakage Reactance (X
1
)
Range: Function:
Depending on motor data
*
[Ohm]
Set stator leakage reactance of motor.
1-35 Main Reactance (X
2
)
Range: Function:
Depending on motor data
*
[Ohm]
Set motor main reactance.
4.2.3. 1-5* Load Independent Setting
This parameter group is for setting the load independent motor settings.
1-50 Motor Magnetization at Zero Speed
Range: Function:
This parameter enables different thermal load on motor when running at low speed.
100 % * [ 0 - 300%]
Enter a percentage of rated magnetizing current. If setting is too low, motor shaft torque may be reduced.
1-52 Min. Speed Normal Magnetizing [Hz]
Range: Function:
Use this parameter along with par. 1-50, Motor Magnetizing at Zero Speed.
