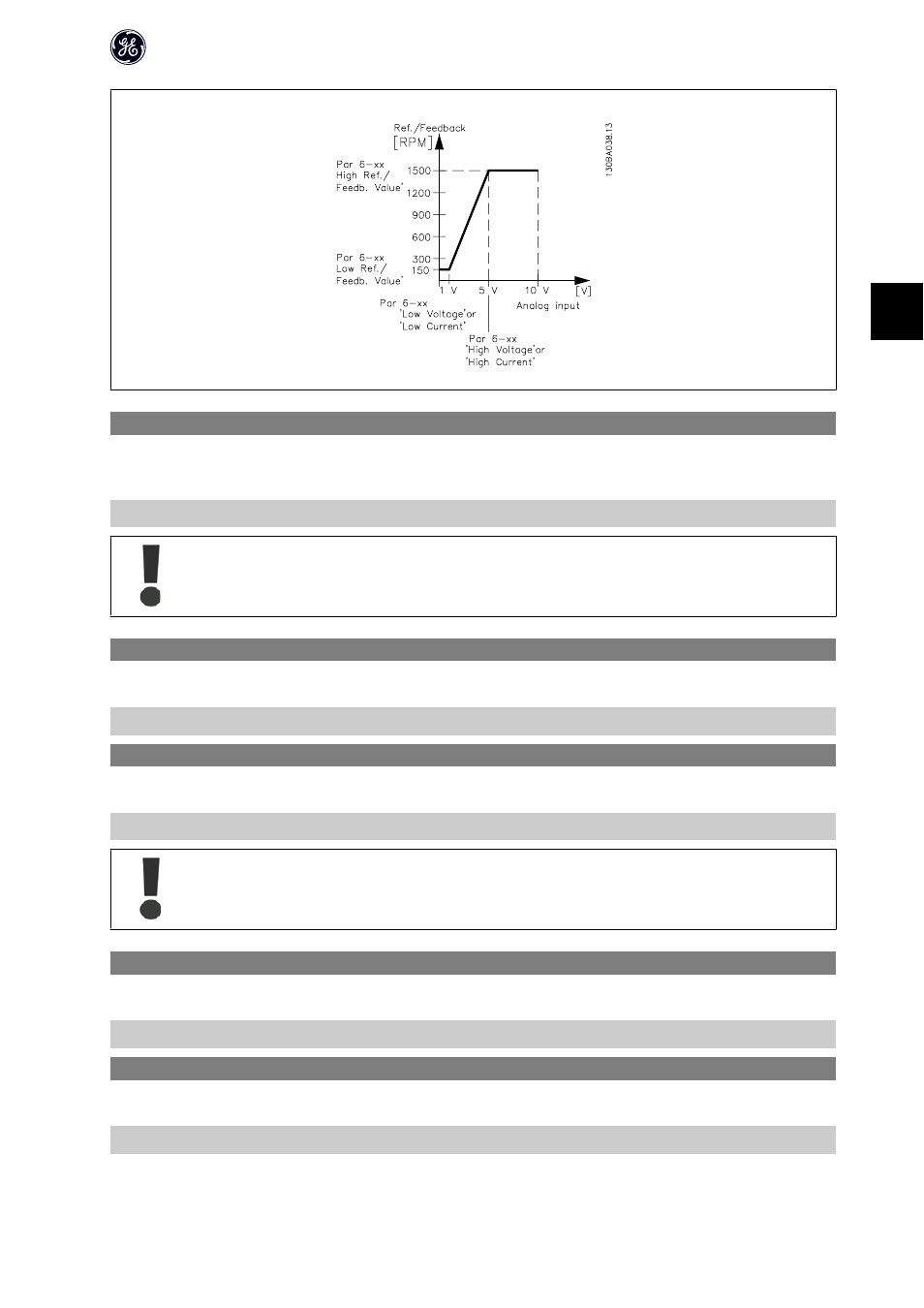

6-10 Terminal 53 Low Voltage

Range:

Function:

This scaling value should correspond to minimum reference value set in par. 6-14. See also section Reference Han-

dling.

0.07 V

*

[0.00 - 9.90 V]

Enter low voltage value.

The value must be set to min. 1V in order to activate the Live Zero Timeout function in par. 6-01.

6-11 Terminal 53 High Voltage

Range:

Function:

This scaling value should correspond to maximum reference value set in par. 6-15.

10.0 V

*

[0.10 - 10.00 V]

Enter high voltage value.

6-12 Terminal 53 Low Current

Range:

Function:

This reference signal should correspond to minimum reference value set in par. 3-02.

0.14 mA

*

[0.00 - 19.90 mA]

Enter low current value.

The value must be set to min. 2 mA in order to activate the Live Zero Timeout function in par. 6-01.

6-13 Terminal 53 High Current

Range:

Function:

This reference signal should correspond to the maximum reference value set in par. 6-15.

20.00 mA

*

[0.10 - 20.00 mA]

Enter high current value.

6-14 Terminal 53 Low Ref./Feedb. Value

Range:

Function:

The scaling value corresponding to the low voltage/low current set in parameters 6-10 and 6-12.

0.000

*

[-4999 - 4999]

Enter analog input scaling value.
