Axiom ® User's Guide Version 1.8  May 2015
2 Getting Started
This section provides instructions for unpacking the Axiom and connecting various components and associated
items.
Unpacking and connecting
1. Carefully unpack the components of the Axiom from the shipping box and check the contents against the
enclosed packing list.
2. Locate the Axiom on a solid surface in a quiet room and choose a location for the speaker and the client such
that they will be about 2' (0.6 m) apart and both at least 4' (1.2 m) from any reflective surface. If the speaker
is to be mounted on a desk, it should be at the edge facing outward. A room with sound-absorbing floor,
ceiling and walls is recommended.

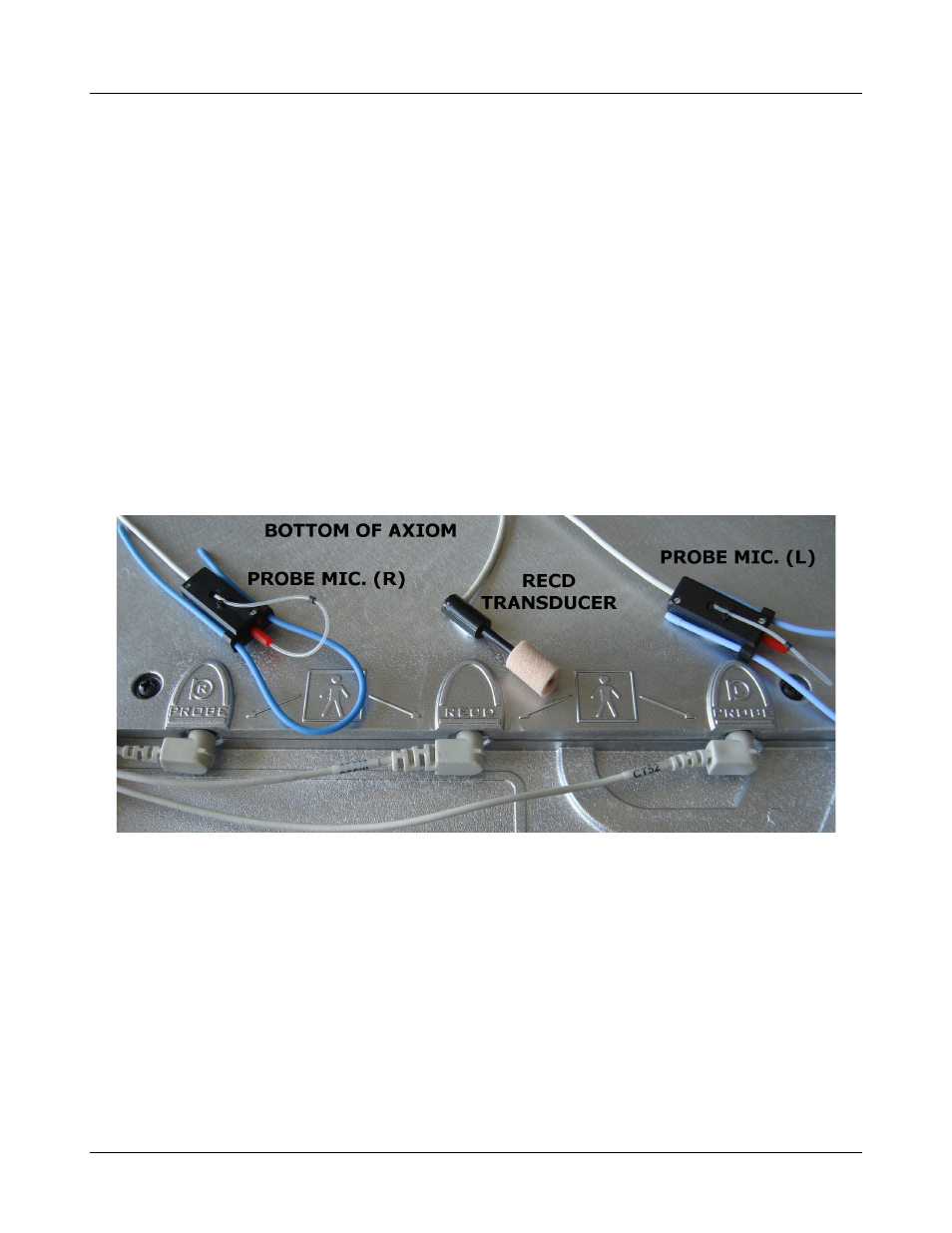

3. Turn the Axiom over and connect the on-ear probe microphones and the RECD transducer as shown.
4. Dress the leads out the sides, front or rear of the Axiom as appropriate for your work setup and turn the
Axiom over, placing it on its rubber feet in the place where you will use it.
5. Open the lid of the test chamber by using your thumb to roll the rubber roller toward the front of the Axiom.
This is made easier by placing your fingers under the front lip. When sealing the chamber in its closed
position, place your fingers on top of the lid and use your thumb to roll the rubber roller toward the rear of
the Axiom.
12
