Encoder Overview

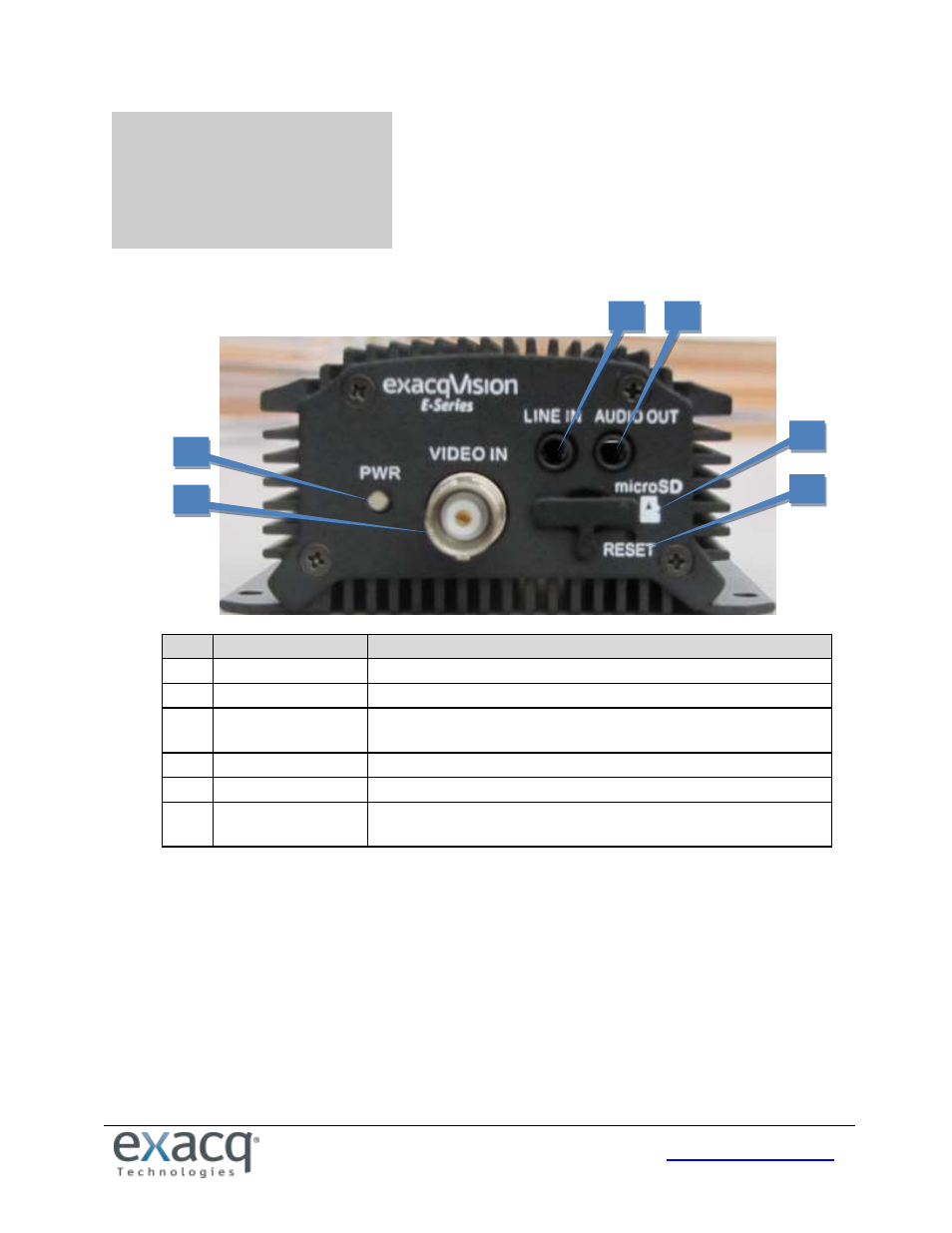

E-ADE1C FRONT PANEL
Item Description
1 POWER LED Indicator Red when the device is powered on.
2 VIDEO IN BNC connector for video input.
3 LINE IN 3.5mm interface for two-way audio input or audio input; connect to
audio input device or active pick-up, microphone, etc.
4 AUDIO OUT 3.5mm interface; connect to audio output device such as loudspeaker.
5 microSD Unused (included for future expansion).
6 RESET Hold button for more than 15 seconds after power is turned on to
restore factory-default settings.
