RIGOL
User’s Guide for DM3058/DM3058E
2-13

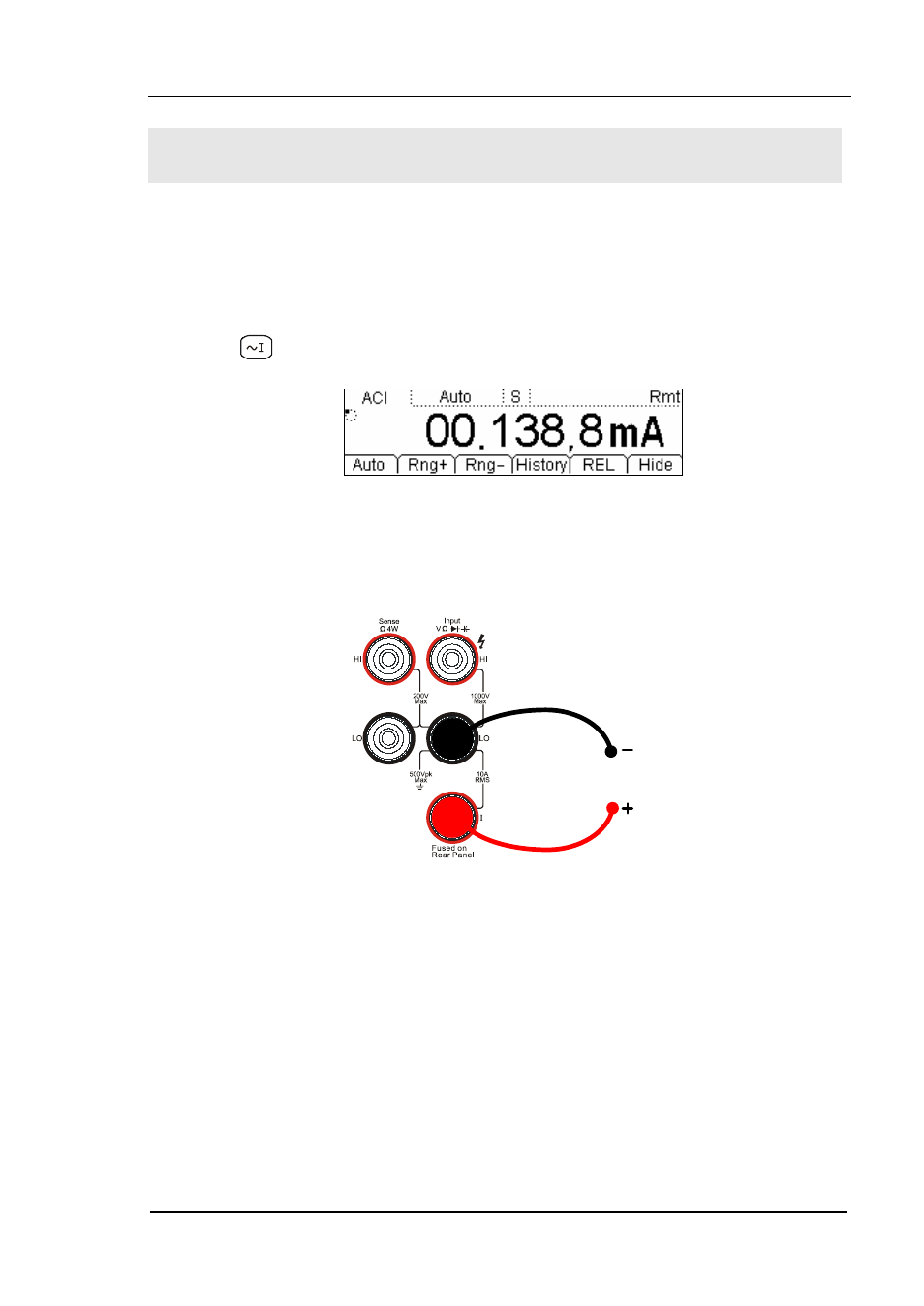

To Measure AC Current
The Multimeter enables to measure AC Current up to 10A. For the details about
how to connect and measure please refer to the following steps.
Operating Steps:
1. Press
to enter into AC Current Measurement interface.
Figure 2-14 AC Current Measurement Interface
2. Connect the red lead to terminal Input-I and black lead to terminal Input-LO as
the figure below.
Figure 2-15 Sketch map for connecting
AC Current
