10

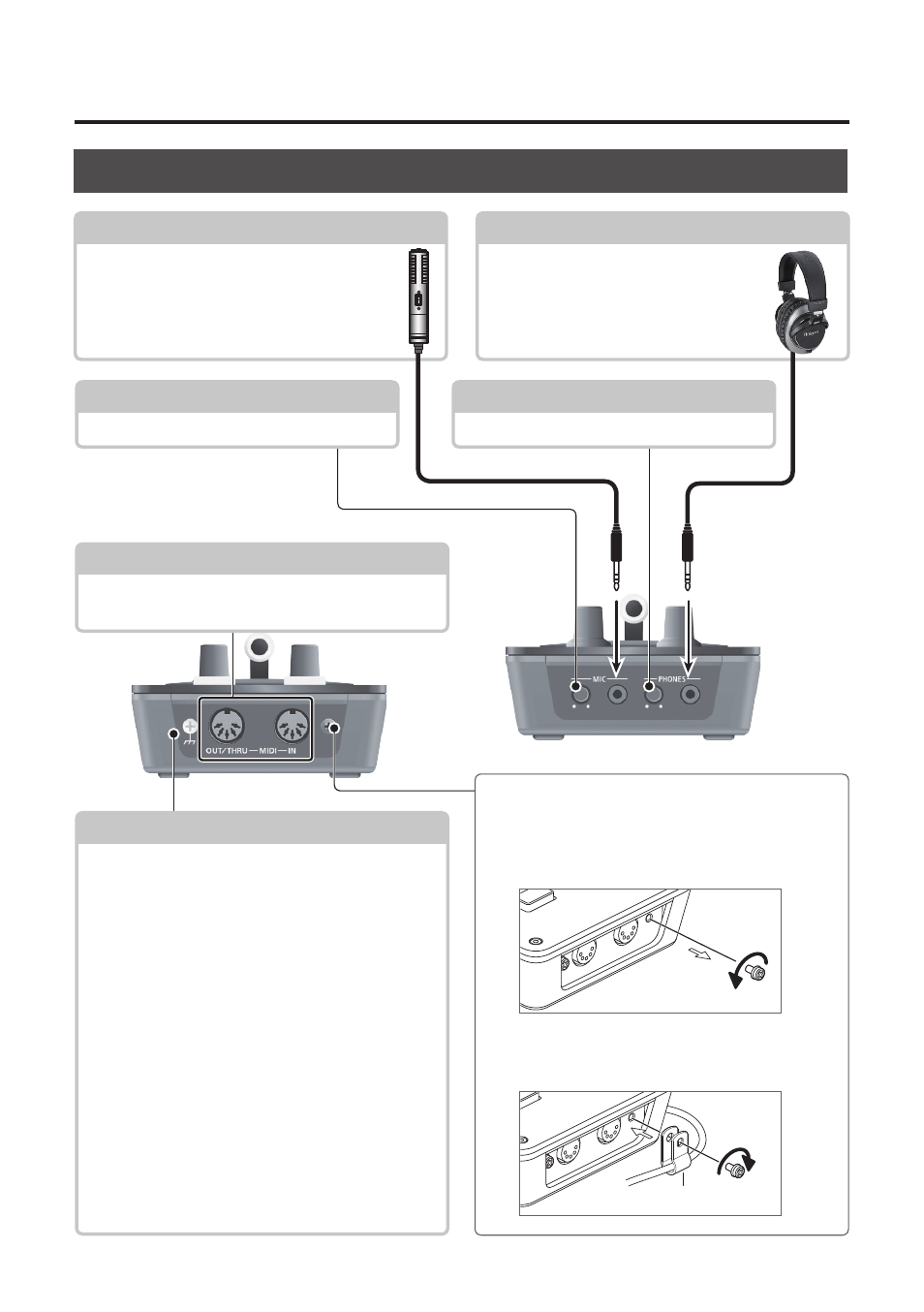

Panel Descriptions
Side Panel (Connecting Your Equipment)
MIC jack
Here is where you connect a microphone.
This accepts a miniature stereo phone plug.
You can also use plug-in-power microphones.
Attaching the power cord hook
1.
Detach the retainer screw indicated in the
figure.
2.
Clamp -the power cord with the power-cord
hook as shown in the figure and secure in
place using the screw you removed in step 1.
Cord hook
PHONES jack
This is for connecting headphones. This
accepts a miniature stereo phone plug.
[PHONES] knob
This adjusts the volume level for headphones.
[MIC] knob
This adjusts microphone input sensitivity.
MIDI OUT/THRU connector, MIDI IN connector
Here you connect a MIDI device used for remote
control.
Grounding terminal
Depending on the circumstances of a particular setup,
you may experience a discomforting sensation, or
perceive that the surface feels gritty to the touch
when you touch this device, microphones connected
to it, or the metal portions of other objects, such as
guitars. This is due to an infinitesimal electrical charge,
which is absolutely harmless. However, if you are
concerned about this, connect the ground terminal
with an external ground. When the unit is grounded,
a slight hum may occur, depending on the particulars
of your installation. If you are unsure of the connection
method, contact the nearest Roland Service Center,
or an authorized Roland distributor, as listed on the
“Information.”
Unsuitable places for connection
5
Water pipes (may result in shock or electrocution)
5
Gas pipes (may result in fire or explosion)
5
Telephone-line ground or lightning rod (may be
dangerous in the event of lightning)
