8

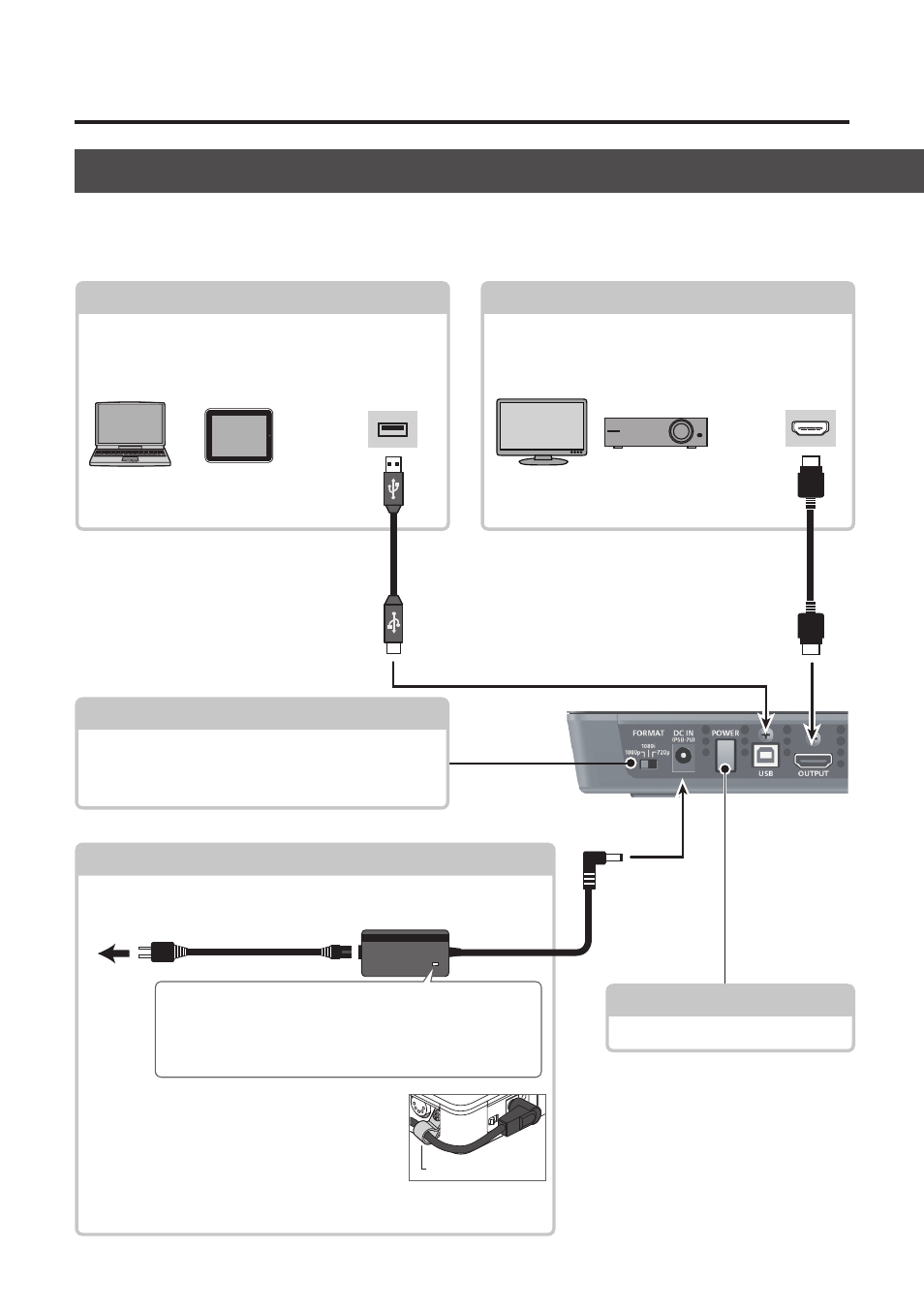

Panel Descriptions
Rear Panel (Connecting Your Equipment)
AC adaptor
Power cord
To AC Outlet
Place the AC adaptor so the side with the indicator faces
upwards and the side with printed information faces
downwards. The indicator will light when you plug the
AC adaptor into an AC outlet.
DC IN connector
This is for connecting the included AC adaptor.
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making
any connections.
* Be sure to use cables and adaptor plugs with the proper connectors matching those of the other devices you are using.
OUTPUT connector
This outputs the video mixing result (main output
video). Here you can connect a device such as an
external display or projector.
HDMI input
connector
[POWER] button
This turns the power on and off.
[FORMAT] Switch
This switches the input/output format.
* Before setting the input/output format, first be sure
to turn off the power to the V-1HD.
* To prevent the inadvertent disruption of
power to your unit (should the plug be pulled
out accidentally), and to avoid applying undue
stress to the jack, anchor the power cord using
the cord hook, as shown in the illustration.
Cord hook
For information on how to attach the cord hook, refer to “Attaching
the power cord hook” (p. 10).
USB port
You use dedicated software to operate the V-1HD
remotely from a connected computer or tablet.
USB2.0 port
p. 29
p. 14
p. 11
V-1HD RCS V-1HD Remote
