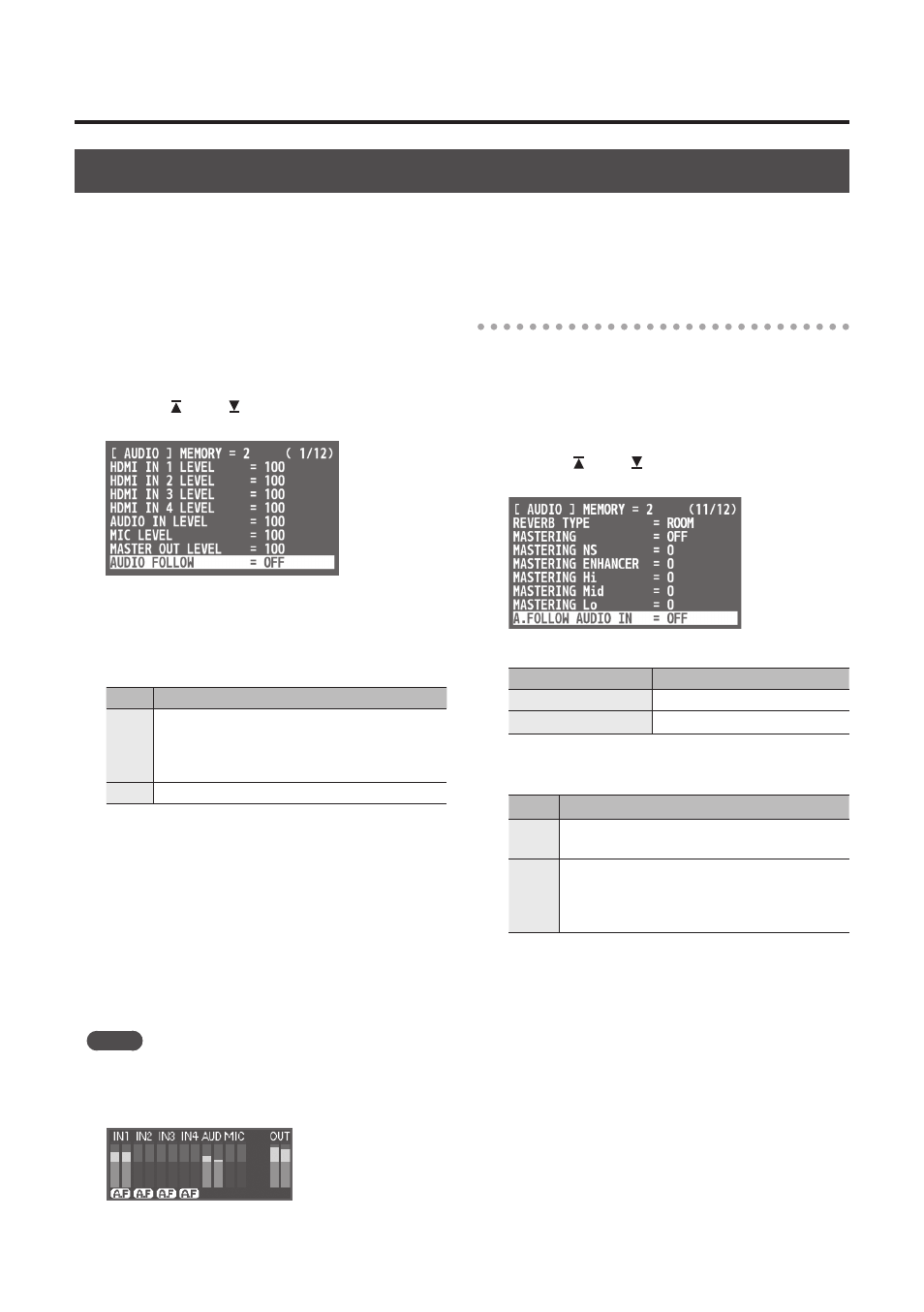

28
Audio Operations
Interlinking Audio Output to Video Switching (Audio Follow)
You can associate audio with a video switch so that when the video is switched, only the HDMI audio of the
output video is output, and other HDMI audio is automatically muted.
You can also use Audio Follow with audio input via AUDIO IN or MIC.
1.
Follow the procedure in “Adjusting the Volume
Level” (p. 25) to adjust the volume to the level
you want to output.
2.
Press the [AUDIO] button to display the AUDIO
menu.
3.
Use the [ ] and [ ] buttons to select “AUDIO
FOLLOW.”
* When the [AUDIO] button is lighted, the [B-4] button
functions as a shortcut for selecting “AUDIO FOLLOW.”
You can also select “AUDIO FOLLOW” by pressing the
[B-4] button.
4.
Select the input audio to use with Audio Follow.
Value Explanation
ON
This sets the Audio Follow feature on.
When the video is switched, only the interlinked
HDMI audio of the output video is output, and
other HDMI audio is muted.
OFF This sets the Audio Follow feature off.
5.
Press the [AUDIO] button to quit the menu.
6.
Switch the video.
When the video input channel is switched, only
the interlinked HDMI audio of the output video
is output.
* Other settings are required to use Audio Follow with
audio input via AUDIO IN or MIC. For details, refer to
“Adding Audio Follow Associations” on this page.
MEMO
5 The level meter shown in the preview monitor indicates
the audio follow setting.
The “A.F” symbol is shown to indicate audio for which
audio follow is on.
Adding Audio Follow Associations
You can use Audio Follow with audio input via
AUDIO IN or MIC.
1.
Press the [AUDIO] button to display the AUDIO
menu.
2.
Use the [ ] and [ ] buttons to select
“A. FOLLOW AUDIO IN” or “A. FOLLOW MIC.”
Select the input audio to use with Audio Follow.
Menu item Explanation
A. FOLLOW AUDIO IN Input audio from AUDIO IN
A. FOLLOW MIC Input audio from MIC
3.
Use the A/B fader to specify the video input
channel to use with Audio Follow.
Value Explanation
1–4
This sets the video input channel to interlink
with input audio using Audio Follow.
OFF
This assigns no video input channel to Audio
Follow.
Audio is always output, regardless of whether
the Audio Follow feature is on or off.
4.
Press the [AUDIO] button to quit the menu.
When the Audio Follow feature is turned on,
audio input via AUDIO IN or MIC is muted on
video input channels other than the channel
specified in step 3.
