9
Panel Descriptions

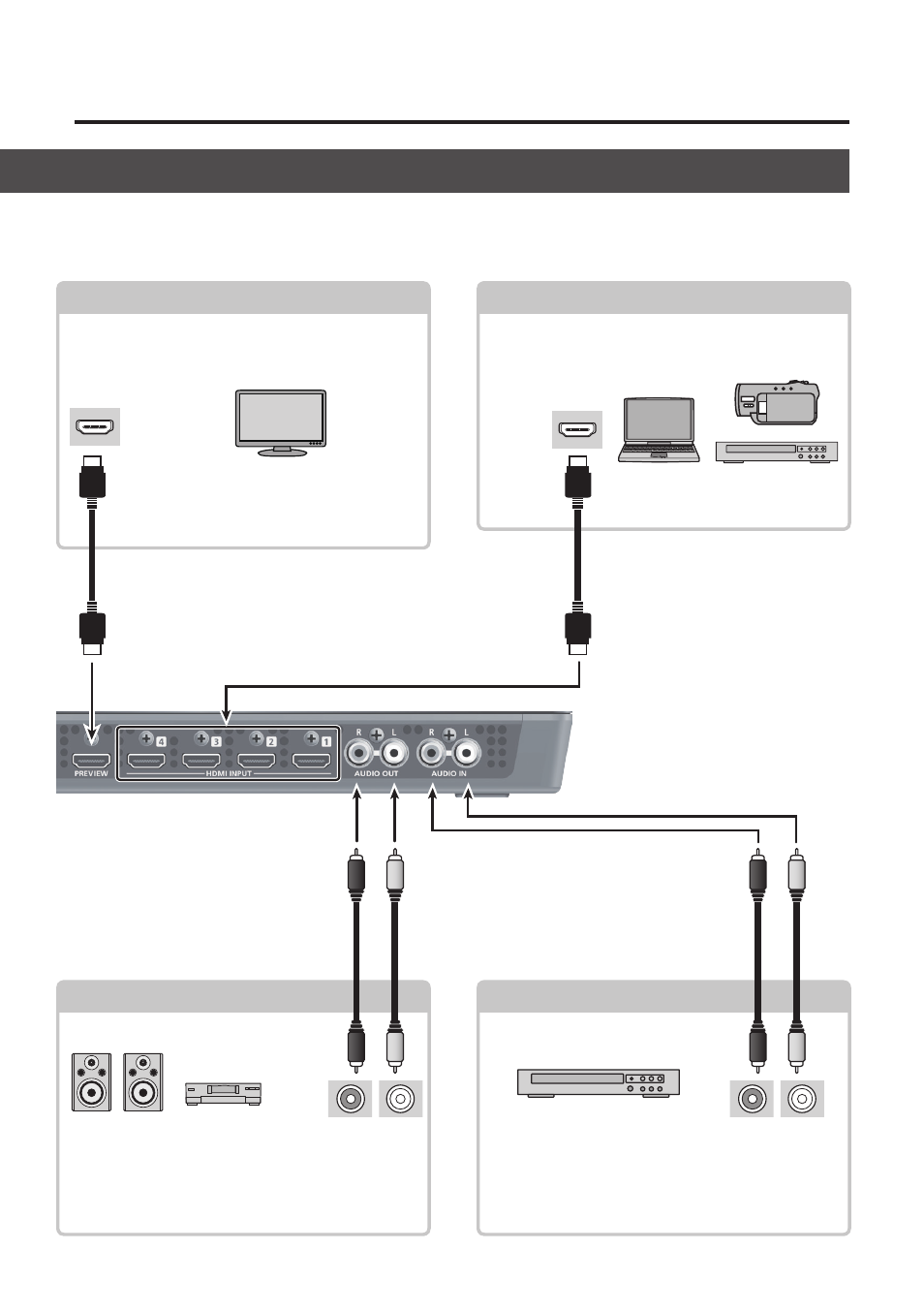

Rear Panel (Connecting Your Equipment)
AUDIO OUT jacks
These output the results of the audio mix. Here
you connect an audio recording deck, amplifier,
speakers, or other such equipment.
These accept RCA phono type plugs.
Audio input connectors
AUDIO IN jacks
Audio output connectors
These are for incoming audio signals from an audio
mixer, portable music players, or other audio or
video equipment.
These accept RCA phono type plugs.
* The V-1HD is designed to radiate heat from the entire rear panel. Accordingly, the rear panel might become hot during
use, but this is not a malfunction.
HDMI INPUT connectors
Here you input video signals from video cameras,
Blu-ray Disc players, or other video equipment and
computers.
HDMI output
connector
PREVIEW connector
This outputs the incoming video on channels 1
through 4 as a four-way split screen. You connect a
preview monitor here.
* Alternatively, you can display only the video
currently being output (the same video sent
via the OUTPUT connector), or only the video
to be output next.
HDMI input
connector
p. 15
