ESA612
Users Manual
20
TEST
RA
LL
LA
RL
V1
R
F
L
N
C1
To protecti
v
e earth or any exposed
cond
u
cti
v
e s
u
rface on the enclos
u
re
Connect the DUT ac power cord to the
equipment outlet on the Analyzer
fis112.eps

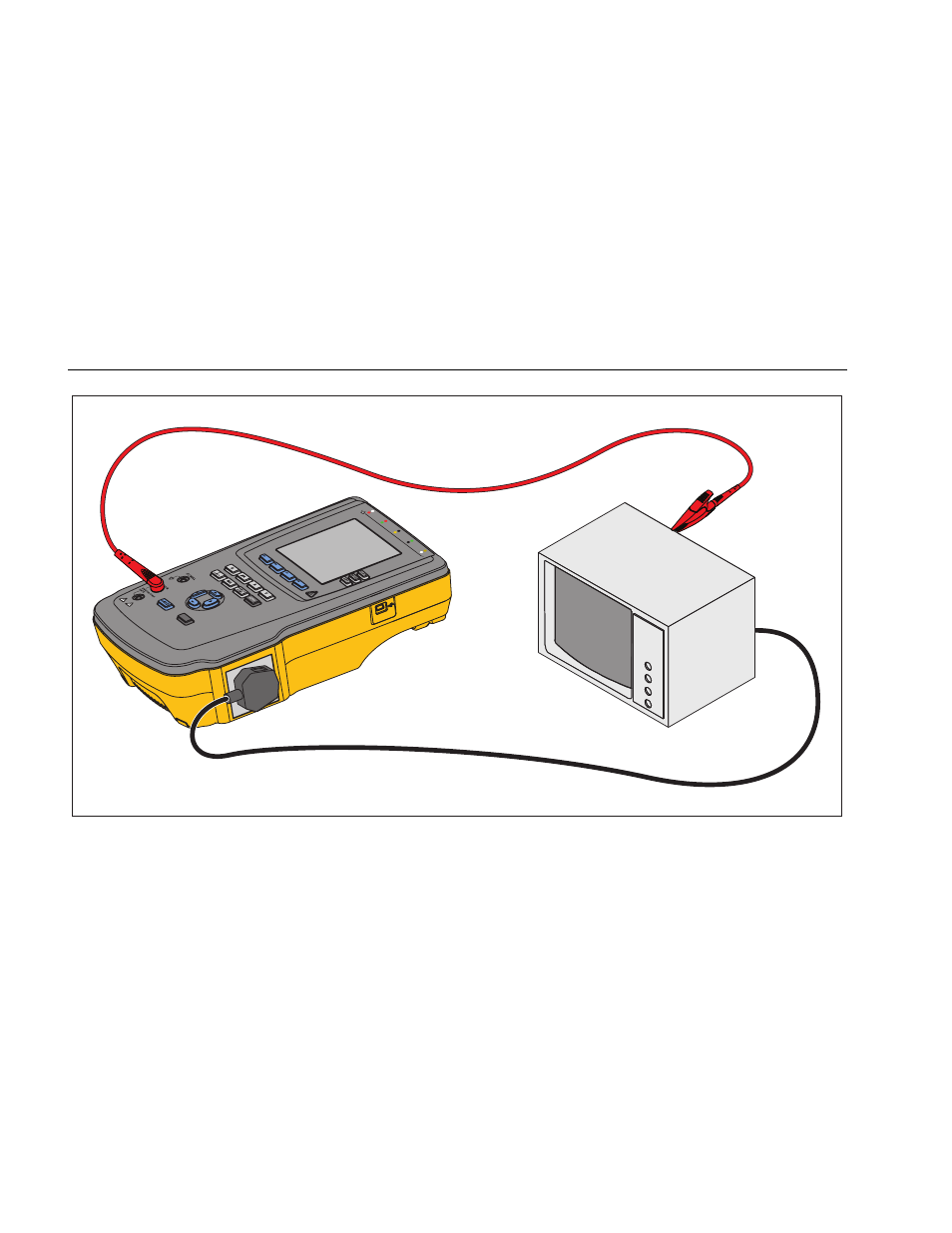

Figure 10. Ground Wire (Protective Earth) Resistance Measurement Connections
