412
Command Mode: Router mode and address-family mode
Usage Guide:
1 refers to that each interface of the layer 3 switch only sends/receives
the RIP-I data packets. 2 refers to that each interface of the layer 3 switch only
sends/receives the RIP-II data packets. The RIP-II data packet is the default version.
Example: Configure the version of all RIP data packets sent/received by router interfaces
to version 2.
Switch(config-router)#version 2
13.4.4 RIP Examples
13.4.4.1 Typical RIP Examples

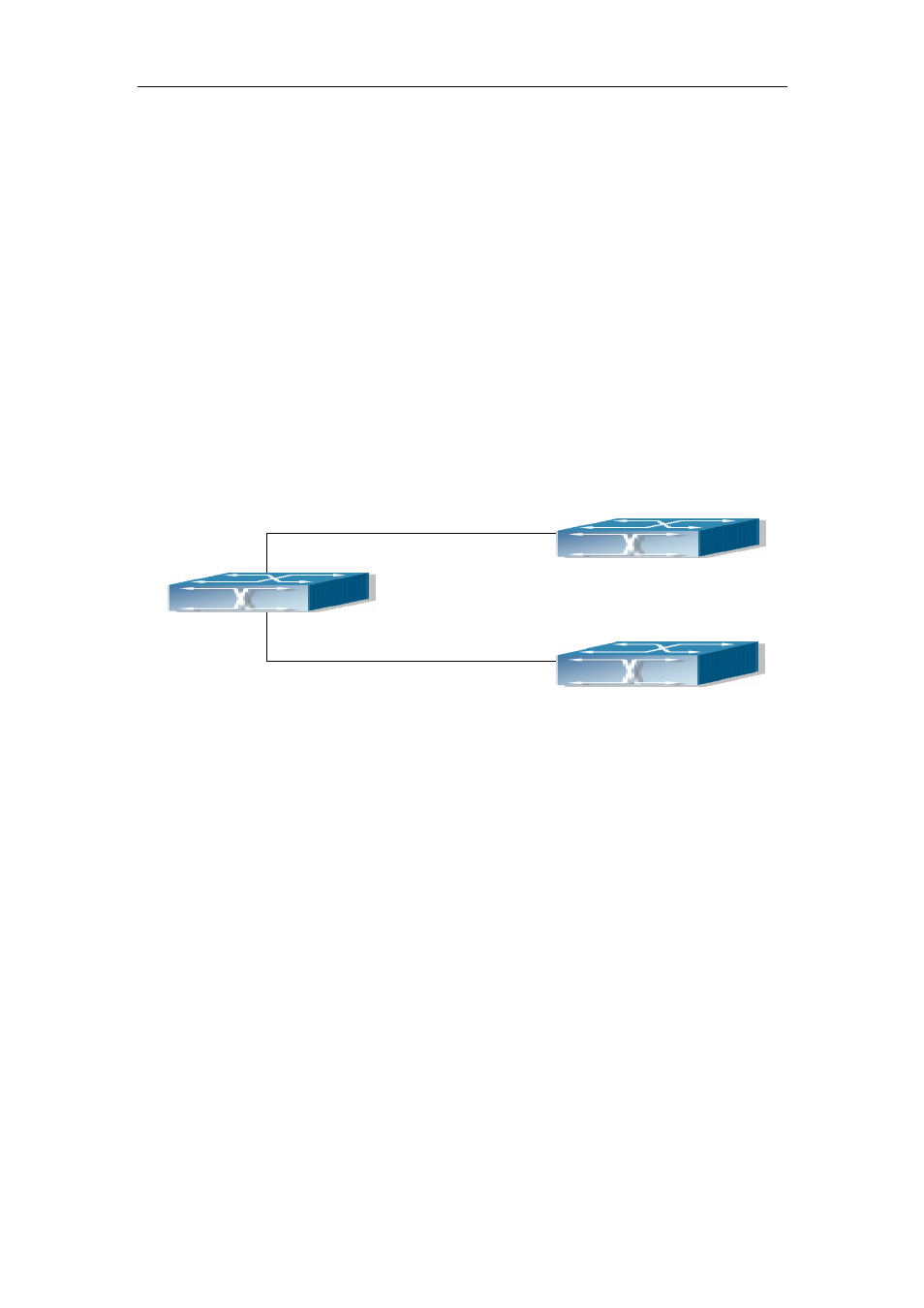

Fig 13-3 RIP example
In the figure shown above, a network consists of three Layer 3 switches, in which
SwitchA connected with SwitchB and SwitchC, and RIP routing protocol is running in all
of the three switches. SwitchA （interface vlan1：10.1.1.1,interface vlan2：20.1.1.1）
exchanges Layer 3 switch update messages only with SwitchB（interface vlan1：10.1.1.2）,
but not with SwitchC（interface vlan 2: 20.1.1.2）.
SwitchA, SwitchB, SwitchC configurations are as follows:
a) Layer 3 SwitchA：
Configure the IP address of interface vlan 1
SwitchA#config
SwitchA(config)# interface vlan 1
SwitchA(Config-if-Vlan1)# ip address 10.1.1.1 255.255.255.0
SwitchA(config-if-Vlan1)#
Configure the IP address of interface vlan 2
SwitchA(config)# vlan 2
SwitchA(Config-Vlan2)# switchport interface ethernet 1/2
vlan2:20.1.1.1/24
SwitchA
SwitchC
Interface
Vlan2:20.1.1.2/24
Interface
vlan1:10.1.1.2/24
Interface
vlan1:10.1.1.1/24
Interface
SwitchB
