252 6 Programming: Programming Contours
6.6 Pr
ocessing DXF Files (Sof
tw
ar
e Option)

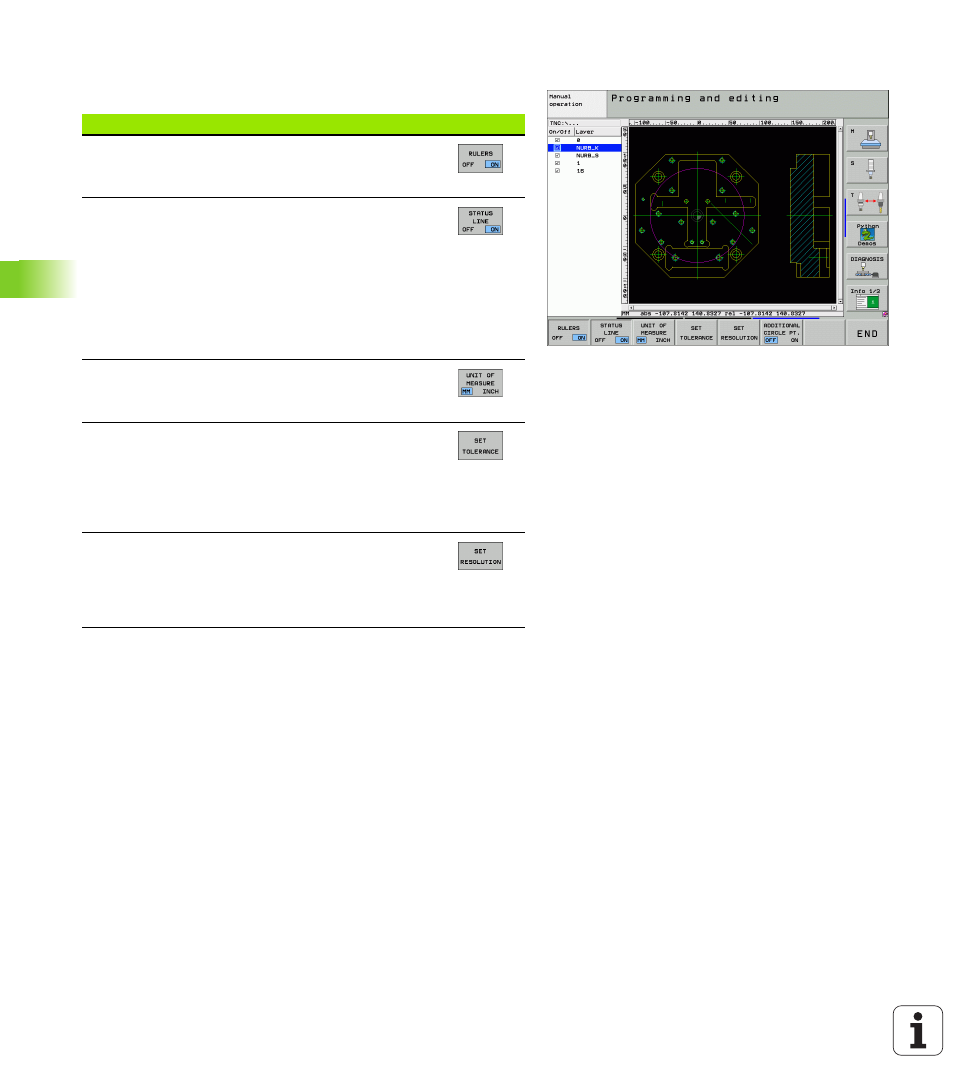

Basic settings
The third soft-key row has various possibilities for settings:
Setting Soft key
Show/hide rulers: The TNC shows the rulers at the left
and top edges of the drawing. The values shown on the
ruler are based on the drawing datum.
Show/hide status bar: The TNC shows the status bar at
the bottom edge of the drawing. The following
information is shown in the status bar:
„ Active unit of measurement (MM or INCH)
„ X and Y coordinates of the current mouse position
„ In the SELECT CONTOUR mode, the TNC shows
whether the selected contour is open (open
contour)
or closed (closed contour).
Unit of measure MM/INCH: Enter the unit of
measurement of the DXF file. The TNC then outputs
the contour program in this unit of measurement.
Set tolerance: The tolerance specifies how far apart
neighboring contour elements may be from each other.
You can use the tolerance to compensate for
inaccuracies that occurred when the drawing was
made. The default setting depends on the extent of the
entire DXF file.
Set resolution: The resolution specifies how many
decimal places the TNC should use when generating
the contour program. Default setting: 4 decimal places
(equivalent to resolution of 0.1 µm when the unit of
measure MM is active)
