HEIDENHAIN iTNC 530 299
8.1 W
o
rk
ing with Cy
cles

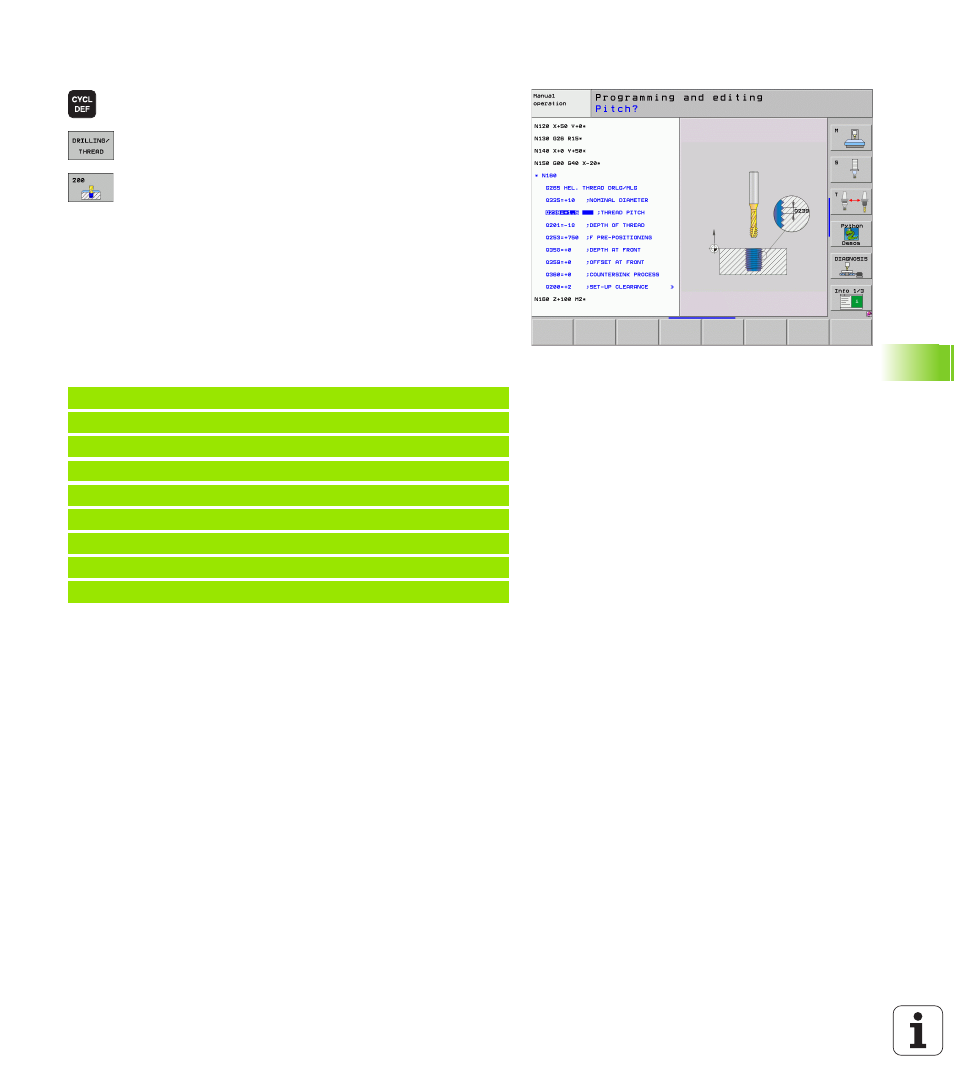

Defining a cycle using soft keys
 The soft-key row shows the available groups of
cycles.
 Press the soft key for the desired group of cycles, for
example DRILLING for the drilling cycles.
 Select a cycle, e.g. DRILLING. The TNC initiates the
programming dialog and asks for all required input
values. At the same time a graphic of the input
parameters is displayed in the right screen window.
The parameter that is asked for in the dialog prompt
is highlighted.
 Enter all parameters asked by the TNC and conclude
each entry with the ENT key.
 The TNC ends the dialog when all required data has
been entered.
Example NC block
N10 G200 DRILLING
Q200=2 ;SET-UP CLEARANCE
Q201=3 ;DEPTH
Q206=150 ;FEED RATE FOR PLUNGING
Q202=5 ;PLUNGING DEPTH
Q210=0 ;DWELL TIME AT TOP
Q203=+0 ;SURFACE COORDINATE
Q204=50 ;2ND SET-UP CLEARANCE
Q211=0.25 ;DWELL TIME AT DEPTH
