6.6 Pr
ocessing DXF Files (Sof
tw
ar
e Option)

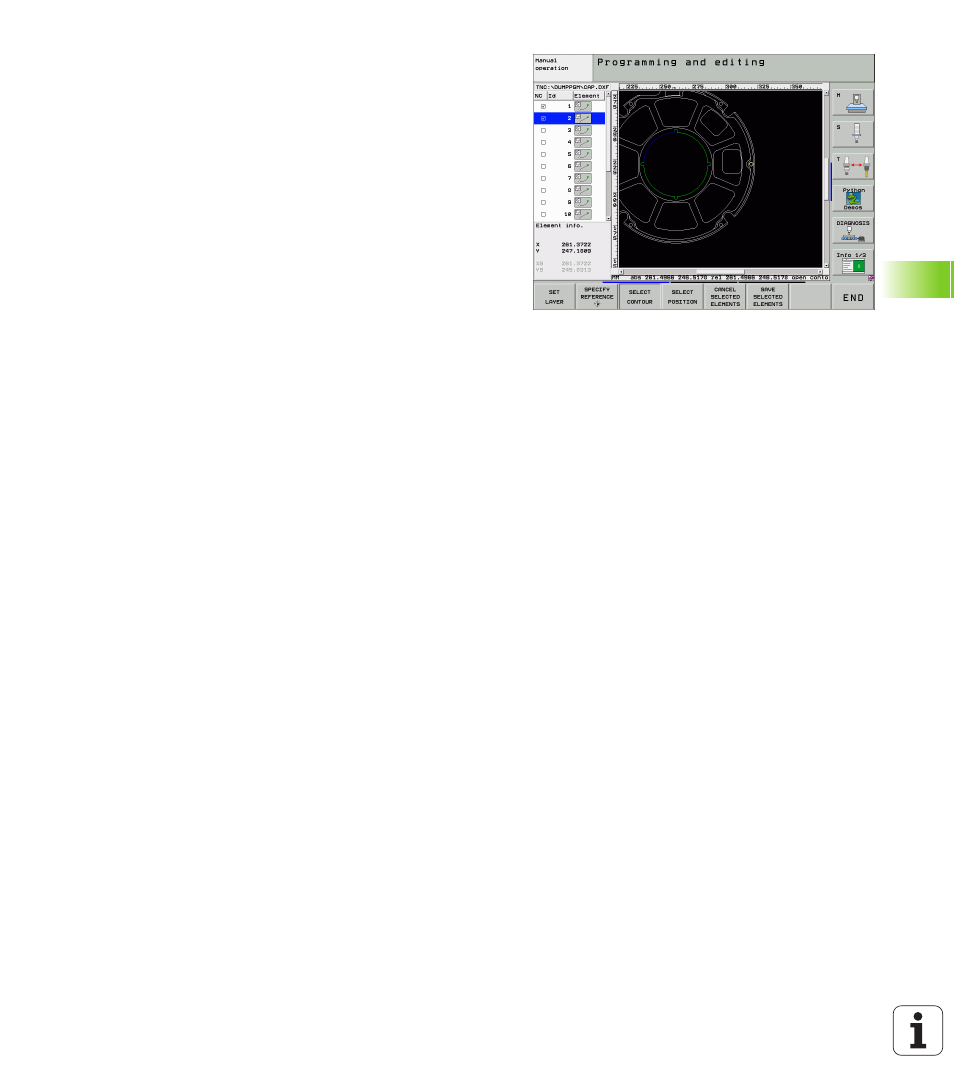

Element information
At the bottom left of the screen, the TNC displays information about
the contour element that you last selected via mouse click in the left
or right window.
„ Straight line
End point of the straight line, and the starting point is grayed out
„ Circle or arc
Circle center point, circle end point, and direction of rotation. Grayed
out: the starting point and circle radius
