Key functions

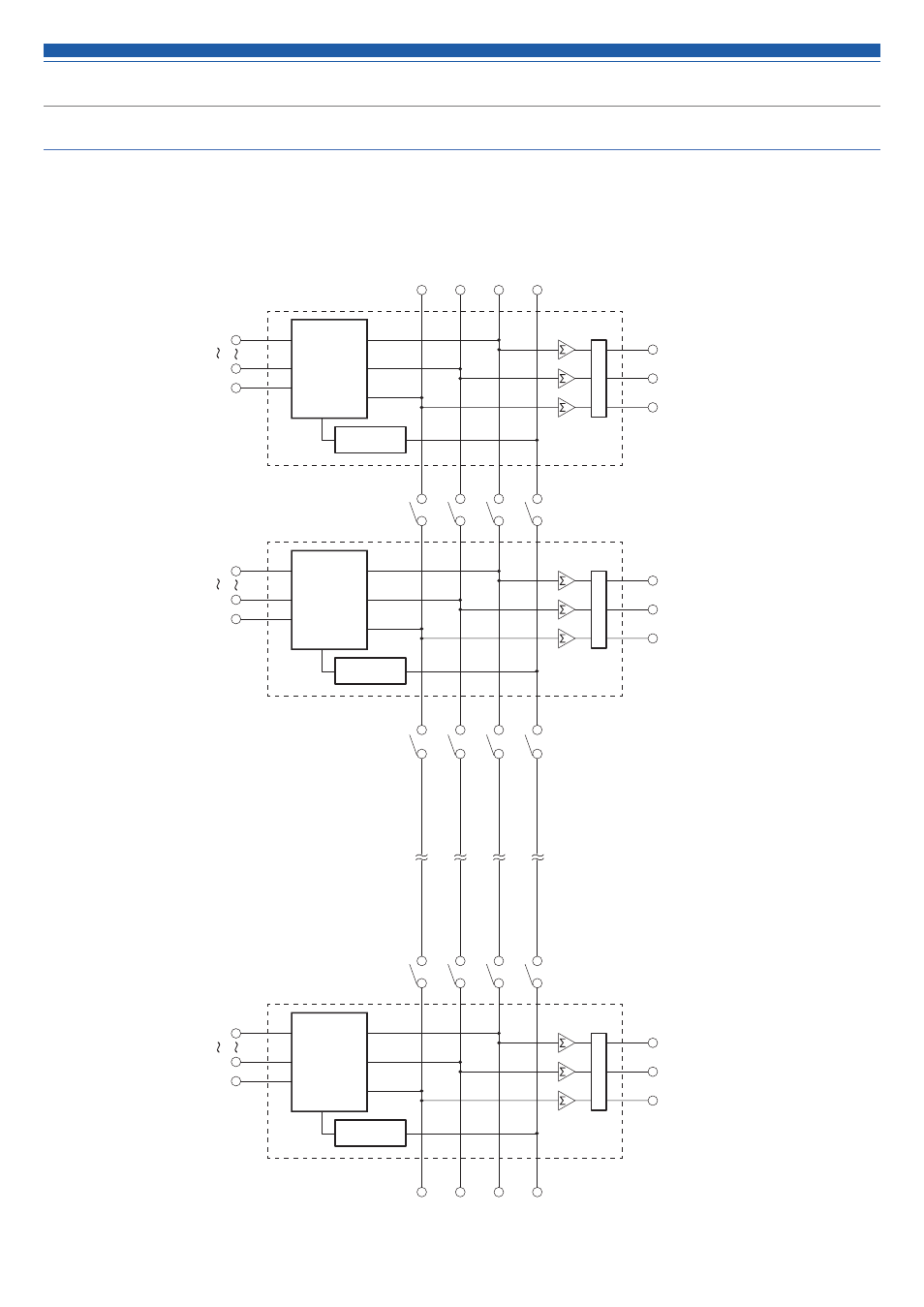

Sharing audio buses
During Audio-Technica LINK, the audio output buses (Output 1/L, Output 2/R, and Output ST) and the AEC reference signal bus are shared between
each ATDM-0604a.
This allows any ATDM-0604a to output 48 mic/line inputs and 8 unbalanced stereo audio inputs. The AEC reference signals can also be shared
among the devices.
