33

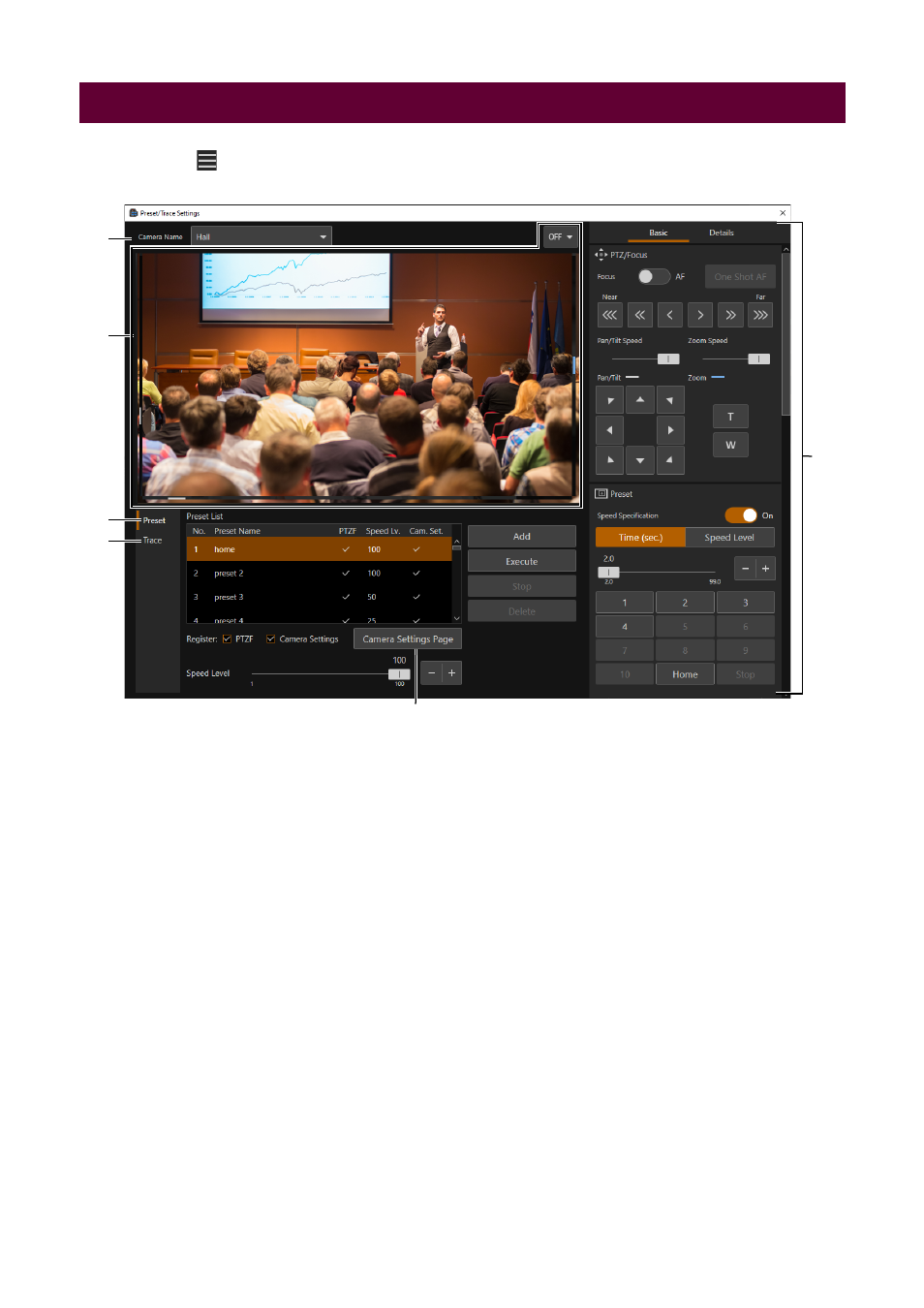

Click on the menu and select [Preset/Trace Settings] to open the [Preset/Trace Settings] dialog.
By clicking [Preset] or [Trace], the bottom of the dialog can be switched accordingly.
(1) [Camera Name]
Displays the name of registered camera.
(2) Video display area
Displays the video of the camera selected in [Camera Name]. The operation of the screen is the same as that of the
main screen’s video display area. For details, refer to “Displaying Camera Video in the Video Display Area” (P. 15).
(3) [Preset]
Register, call, and delete presets. For details, refer to “Preset Function” (P. 34).
(4) [Trace]
Record, execute, and delete traces. For details, refer to “Trace Function” (P. 35).
(5) Camera operation area
Camera operations and adjustment of angle of view are available here. The main operations are the same as in the
main screen of the camera operation area. For details, refer to “Operating Cameras” (P. 19).
(6) [Camera Settings Page]
Launches a web browser and displays the camera’s Settings Page. An administrator user name and password are
required to display the Settings Page.
Using Preset/Trace Functions
(1)
(3)
(2)
(5)
(6)
(4)
