42
Configuring Pan/Tilt/Zoom Direction Settings
The camera pan/tilt/zoom direction can be changed when performing pan/tilt/zoom operations with a joystick or in the main
screen.

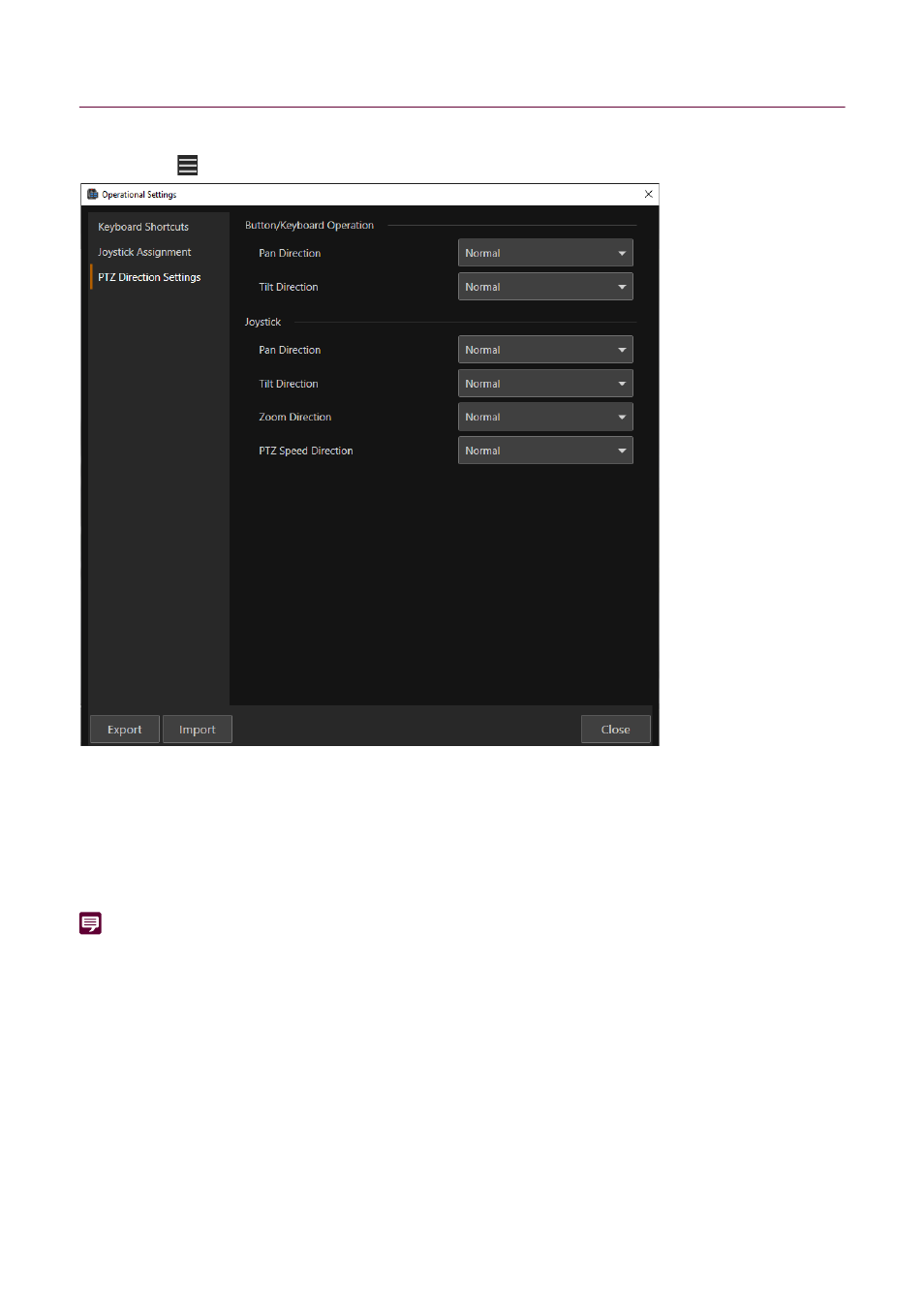

Click the menu , select [Operational Settings] to open the dialog window, then select [PTZ Direction Settings].
[Button/Keyboard Operation] and [Joystick]
The direction for pan/tilt/zoom operations can be changed.
When [Pan Direction] is [Forward], tilting the joystick to the right will move the camera clockwise. When [Tilt Direction] is
[Forward], tilting the joystick toward the user will tilt the camera forward. Also, when [Zoom Direction] is [Forward], tilting the
joystick toward the user or counterclockwise will move zoom in the wide angle direction.
[PTZ Speed Direction]: Sets the direction of the operation assigned to “PTZ Speed” at Joystick Assignment. When [PTZ
Speed Direction] is set to [Normal], the pan/tilt/zoom speed increases by operating the slider inwards.
Note
• The [Keyboard Shortcuts] and [PTZ Direction Settings] settings can be exported or imported by clicking [Export] or [Import]. For details,
see “Exporting or Importing the Settings” (P. 43).
• For details on the joystick and PC connections and joystick operations, refer to the Settings Guide of the respective product. Note that all
joystick operations are not guaranteed.
