39

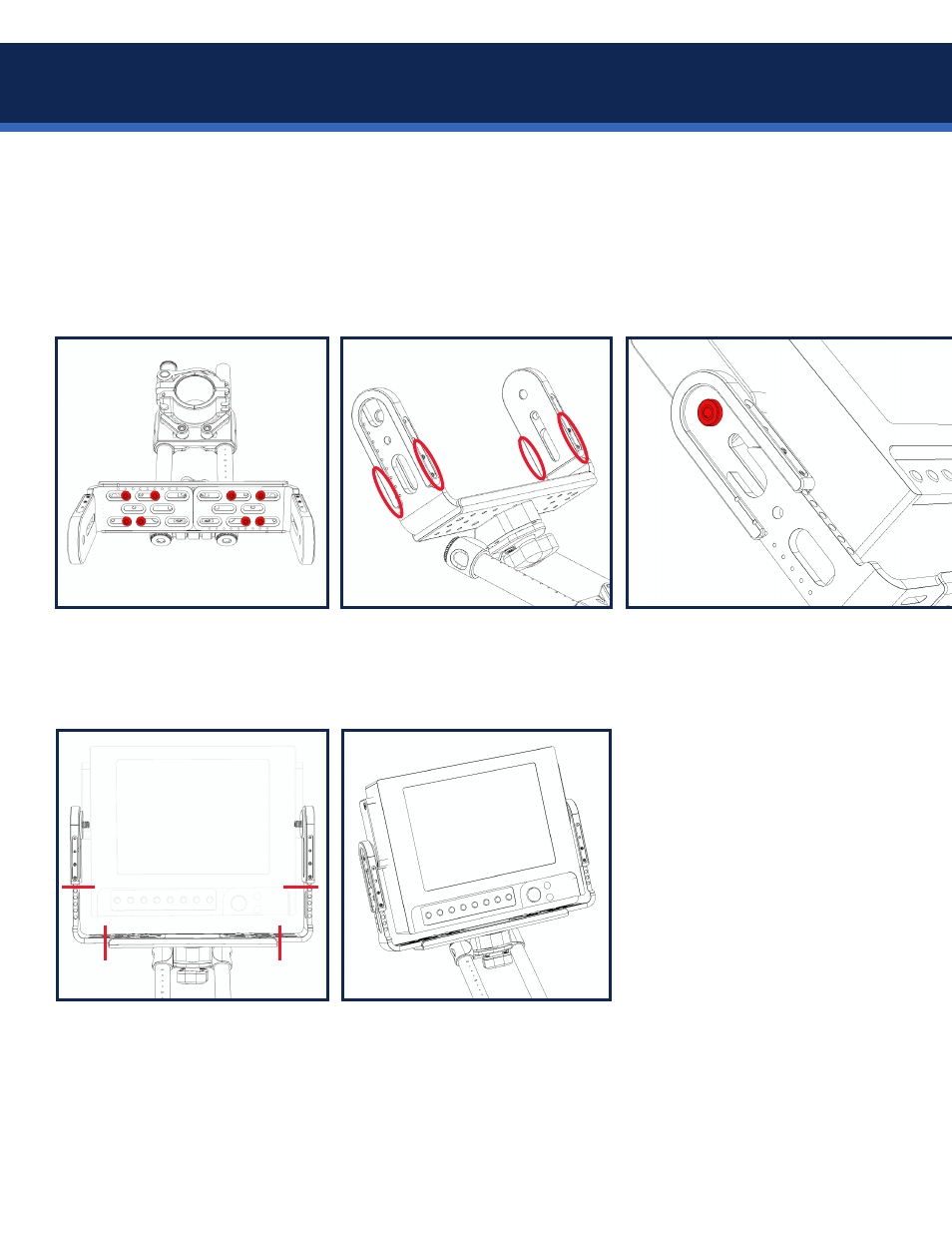

Loosen these eight hex screws to
adjust the width. You may need to
re-arrange the screws in different
threaded holes, but use all eight.
Loosen the eight set screws to
adjust the height of the uprights.
Fit the monitor height so it clears
the yoke when flipped 360˚.
Install your monitor:
• Use supplied 1/4-20 screws to
mount to monitors with 1/4-20
side mounting holes.
• Use 10-32 screws and supplied
mounting block hardware that
is monitor specific.
Use the markings to keep the
monitor symmetrical side to side
and on the uprights. Tighten all
of the screws.
Double check that the monitor is
square to the rig, is held securely
in the yoke, and rotates smoothly.
T
he universal monitor mount offers versatility and convenience to mount a variety of monitors near the
monitor’s center of gravity, and allows tools free adjustment once it is fitted.
NOTE: Contact Tiffen for a selection of monitor blocks to fit your choice of professional monitor when
upgrading or buying a spare.
TIP: The monitor can be offset left or right off center to help with view ability in some situations.
Monitor yoke adjustment
